測量轉換器和多功能轉換器用于將物理值（如溫度或電阻等）轉換為模擬標準信號，同時進行限值處理。這些設備通常用于工業自動化和控制系統中，將傳感器測得的物理值轉化為可用于監控和控制的標準信號。限值處理則允許在特定條件下觸發警報或執行其他操作。

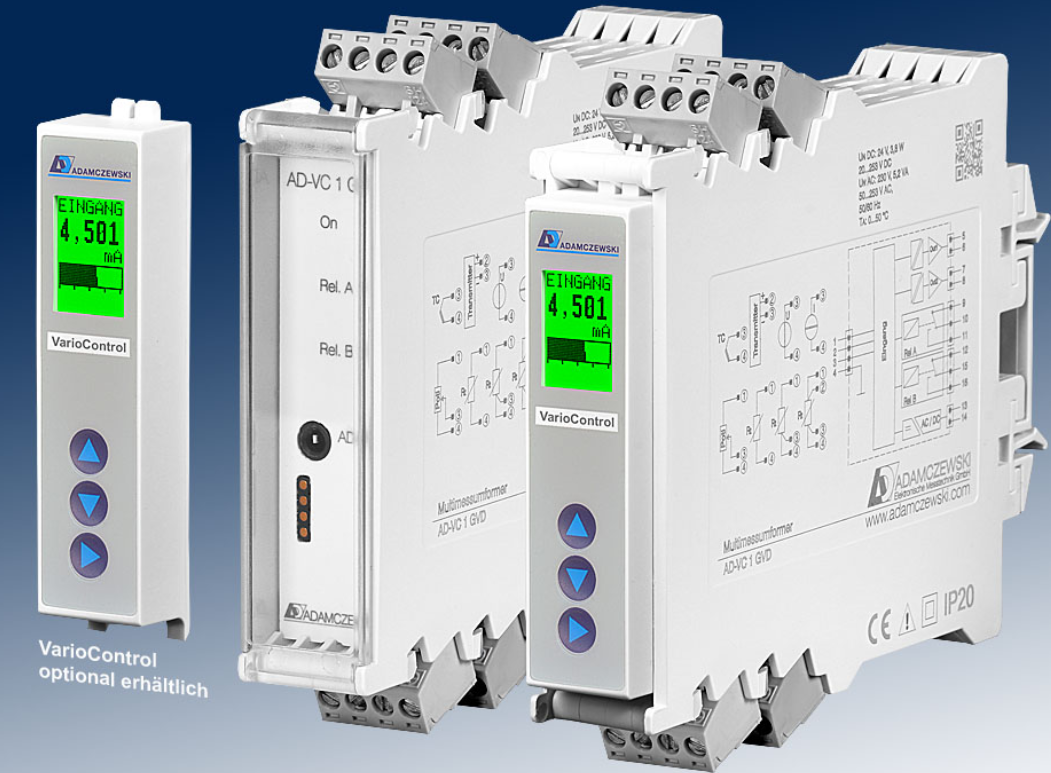

多功能轉換器
AD-VC 1 GVD
產品介紹
VarioCheck VC5B系列的數字溫度測量轉換器是具有兩個模擬輸出和最多4個限值繼電器的可自由編程數字測量變送器。所有特性的輸入可以直接在設備上進行，或者使用配置軟件”AD-Studio”。VarioCheck通過積分的功能模塊，如可選擇的繼電器功能、模擬模式、自由線性化曲線以及廣泛的供電電壓范圍，實現了作為通用測量數記錄的所有任務。
產品參數
| Input current | |
|---|---|
| Measuring range | -24 … + 24 mA DC |
| Input resistance | 20 Ohm |
| Basic accuracy | 4 μA |
| Transmitter supply | |
| Off-load voltage | 24,0 V |
| Voltage at 20mA | 18,0 V |
| Current limit | ~ 25 mA |
| Input voltage | |
| Measuring ranges | 0 … + 12 V DC |
| Input resistance | 1 MOhm |
| Basic accuracy | 1 mV |
| Input voltage mV | |
| Measuring ranges | -15 … +15 mV |
| -30 … +30 mV | |
| -60 … +60 mV | |
| -125 … +125 mV | |
| -250 … +250 mV | |
| Input resistance | 1 MOhm |
| Basic accuracy | 20 μV |
| Thermocouples | |
| Comparative place: | |
| Internal | Measurement with sensor in the device connecting terminals |
| External | Cold junction temperatureselectable by parameters |
| To DIN EN 60584: | |
| ??Messbereich Typ J | -200 … +1200 °C |
| ??Messbereich Typ T | -200 … +400 °C |
| ??Messbereich Typ K | -200 … +1360 °C |
| ??Messbereich Typ E | -200 … +1000 °C |
| ??Messbereich Typ N | -200 … +1300 °C |
| ??Grundgenauigkeit | 1 K |
| To DIN EN 60584: | |
| ??Messbereich Typ S | -40 … +1760 °C |
| ??Messbereich Typ R | -40 … +1760 °C |
| ??Messbereich Typ B | +400 … +1800 °C |
| ??Grundgenauigkeit | 2 K |
| After standard ASTM E988: | |
| ??Messbereich Typ C | 0 … +2320 °C |
| ??Grundgenauigkeit | 2 K |
| Resistance input | |
| Resistance thermometer inputs DIN EN 60751: Pt100, Pt500 and Pt1000 DIN 43760: Ni100, Ni500 and Ni1000 | |
| ??Messbereich Pt | -200 … +850 °C |
| ??Messbereich Ni | -60 … +230 °C |
| ??Kleinste Messspanne | 20 K |
| ??Kurzschlusserkennung | < 20 Ohm |
| ??Grundgenauigkeit | 0,2 K |
| Linear resistance | |
| ??Messbereich | 0 … 4000 Ohm |
| ??Grundgenauigkeit | 0,1 Ohm |
| Connection method | 2-, 3- oder 4-wire system |
| Sensor supply | 100 μA |
| Max line resistance?1) | 50 Ohm/cable |
| 1)?With 2-conductor the line resistance comes as an offset into the measurement. | |
| Potentiometer input | |
| Connection method | 3-wire system |
| Max. Resistance | 50 Ohm … 100 kOhm |
| Sensor supply | <=500μA |
| Current outputs | |
| Max. output range | -21,5 … 21,5 mA DC |
| Max. burden | 400 Ohm |
| Residual ripple | 20 μAss |
| Voltage outputs | |
| Max. output range | -10,5 … 10,5 V DC |
| Min. burden | 10 kOhm |
| Residual ripple | 10 mVss |
| Relay outputs A/B | |
| Contact type | Potential free changeover |
| Max. AC-breaking capacity | 250 V AC, 2 A AC, 50Hz |
| Max. DC-breaking capacity | 50 V DC, 2 A DC |
| Switching operations | |
| Mechanical | 107 |
| AC: 230V / 2A, cos(phi)=1 | 6 * 105 |
| AC: 230V / 2A, cos(phi)=0,4 | 2 * 105 |
| DC: 24V / 1A | 2 * 105 |
| Transmission behaviour | |
| Linearity error | < 0,2 % of the measuring range |
| Rise time | 500 ms (0…90 %, 100…10 %) |
| Rise time (temperature input) | < 1s (0…90 %, 100…10 %) |
| Temperature influence | +/- 100 ppm/K of the measuring range |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage AC / DC | 230 V AC / 24 V DC |
| Power consumption AC / DC | 5,2 VA / 3,2 W |
| Power consumption with operating module AC / DC | 5,4 VA / 3,6 W |
| Housing | |
| Dimensions (WxHxD) | 23x110x134 mm |
| With operating module (bxhxt) | 23x110x138 mm |
| Type of protection | IP 20 |
| Connection method | Detachable terminal clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 150 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard?1) | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| 1)During electromagnetic disturbance minor changes in output signal are possible. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Input to output | 2,5 kV (1 min) |
| In-/output to auxiliary voltage | 4 kV (1 min) |

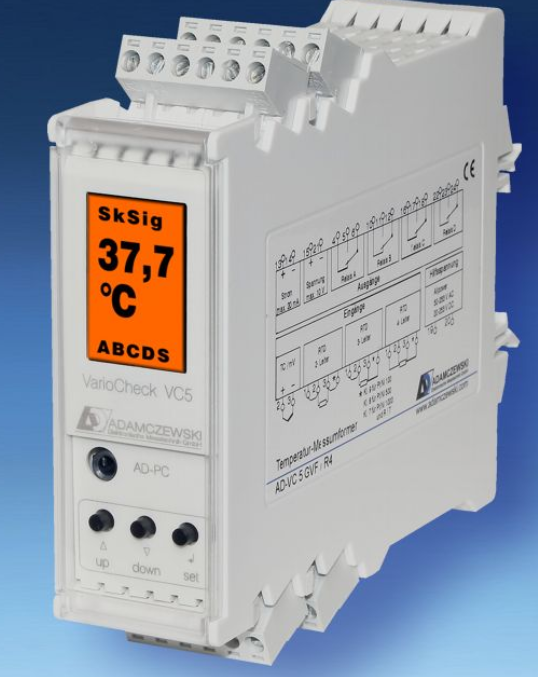

溫度轉換器
VarioCheck VC5B系列
產品介紹
VarioCheck VC5B系列的數字溫度測量轉換器是可自由編程的數字測量變送器，具有兩個模擬輸出和最多4個限值繼電器?？梢灾苯釉谠O(shè)備上輸入所有特性，或者使用配置軟件“AD-Studio”。VarioCheck通過積分的功能模塊，如可選擇的繼電器功能、模擬模式、自由線性化曲線以及廣泛的供電電壓范圍，實現了作為通用測量值記錄的所有任務。
產品參數
| Resistance thermometer inputs Pt100, Pt500, Pt1000 to DIN EN 60751 | |
|---|---|
| Measuring range | -200 … +850 °C |
| Connection method | 2-, 3- oder 4-wire system |
| Resolution | 16 Bit |
| Accuracy | 0,5 K |
| Smallest measuring spans | 20 K |
| Max line resistance?1) | 10 Ohm/cable |
| Sensor supply | |
| Pt100 | 1 mA |
| Pt500, Pt1000 | 210 μA |
| 1)?With 2-conductor the line resistance comes as an offset into the measurement. | |
| Resistance thermometer inputs Ni100, Ni500, Ni1000 to DIN EN 43760 | |
| Measuring range | -60 … +230 °C |
| Connection method | 2-, 3- oder 4-wire system |
| Resolution | 16 Bit |
| Accuracy | 0,5 K |
| Smallest measuring spans | 20 K |
| Max line resistance?1) | 10 Ohm/cable |
| Sensor supply | |
| Ni100 | 1 mA |
| Ni500, Ni1000 | 210 μA |
| 1)?With 2-conductor the line resistance comes as an offset into the measurement. | |
| Thermocouples | |
| Comparative place: | |
| Internal | Measurement with LM35 in the device connecting terminals |
| External | Cold junction temperatureselectable by parameters |
| Resolution | 16 Bit |
| Accuracy | 0,2 % of measuring range |
| Measuring range type J | -200 … +1200 °C |
| To DIN EN 60584: | |
| Measuring range type T | -200 … +400 °C |
| Measuring range type K | -200 … +1360 °C |
| Measuring range type E | -200 … +1000 °C |
| Measuring range type N | -200 … +1300 °C |
| Measuring range type S | -40 … +1760 °C |
| Measuring range type R | -40 … +1760 °C |
| Measuring range type B | +400 … +1800 °C |
| After standard ASTM E988: | |
| Measuring range type C | 0 … +2320 °C |
| Smallest measuring spans | 100 K |
| Voltage inputs | |
| Measuring ranges | -18 … +18 mV |
| -36 … +36 mV | |
| -72 … +72 mV | |
| -144 … +144 mV | |
| Current output 20 mA | |
| Output range | 0 … 20,4 mA |
| Resolution | 10 Bit |
| Accuracy | 20 μA |
| Max. burden | 500 Ohm |
| Residual ripple | 20 μAss |
| Voltage output 10 V | |
| Output range | 0 … 10,2 V |
| Resolution | 10 Bit |
| Accuracy | 10 mV |
| Min. burden | 5 kOhm |
| Residual ripple | 10 mVss |
| Werden Stromausgang und Spannungsausgang gleichzeitig benutzt, dürfen die beiden Kreise nicht verbunden werden. | |
| Relay outputs A..D | |
| Max switching voltage | AC 250 V AC |
| Max switching current AC | 2 A AC |
| Max switching voltage | DC 50 V DC |
| Max switching current DC | 2 A DC |
| Display | |
| Graphic-LCD | 42×64 Pixel, background RGB lights |
| Digital display | 4-digit, can be configured |
| Display function | Scaled input signal, input signal, output, limits, scaled dimension as quasi analogue bar, scaling unit |
| Transmission behaviour | |
| Sampling rate | 1 measure/s |
| Linearity error | 0,2 % of full scale |
| Temperature influence | +/-100 ppm/K of full scale |
| Supply | |
| Supply voltage | 50 … 253 V AC |
| 20 … 253 V DC | |
| Max power consumption at 24V DC | 2,6 W |
| Max power consumption at 230V AC | 5 VA |
| Housing | |
| Dimension | BxHxT 33x110x128 mm |
| Manner of fastening | DIN rail mounting 35mm, EN 50022 |
| Type of protection | IP 20 |
| Connection method | Detachable terminal clamp, 5 mm grid |
| Wire cross section | Max. 2,5 mm2 |
| Weight | Ca. 200 g |
| Environmental conditions | |
| Permissible ambient temperature | -10 … +60 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard?1) | EN 61326-1 |
| Emitted interference | EN 55011, CISR11 Cl. B, Gr. 1 |
| 1)?W?hrend der St?reinwirkung sind geringe Signalabweichungen m?glich. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| Input to output | 2,5 kV, 1min |
| Input/output to auxiliary voltages | 4 kV, 1min |
| Outputs together | Nogalvanic isolation |
| Input to the programming interface | Nogalvanic isolation |

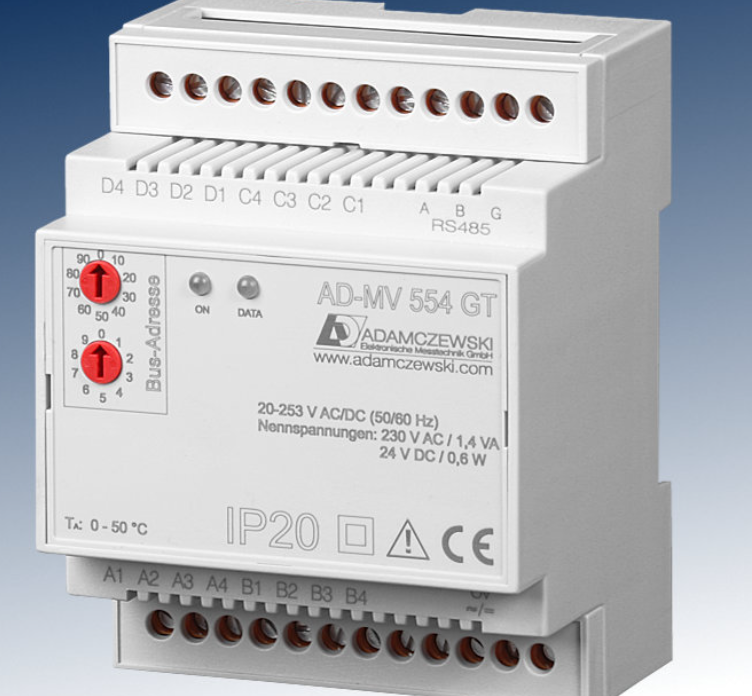

AD-MV 554 GT
產品介紹
4通道變送器AD-MV 554 GT是一款可編程的測量設備，用于測量電阻和毫伏信號。由于集成了功能塊和自由線性化曲線，AD-MV 554 GT可以通用使用，主要用于溫度傳感器的溫度測量。通過Modbus RTU協議，可以通過適當?shù)募拇嫫髟L問測量值?？梢允褂们懊姘迳峡稍L問的地址開關設置設備地址，范圍從1到99。所有參數都通過RS485接口使用PC配置軟件”AD-Studio”進行設置。接口參數也可以設置，以便將設備插入現有的總線系統中。工作電壓由綠色發光二極管指示。數據通信由黃色發光二極管表示。檢測到超出定義的測量范圍的無效測量信號時，綠色LED會閃爍。
產品參數
電阻變送器

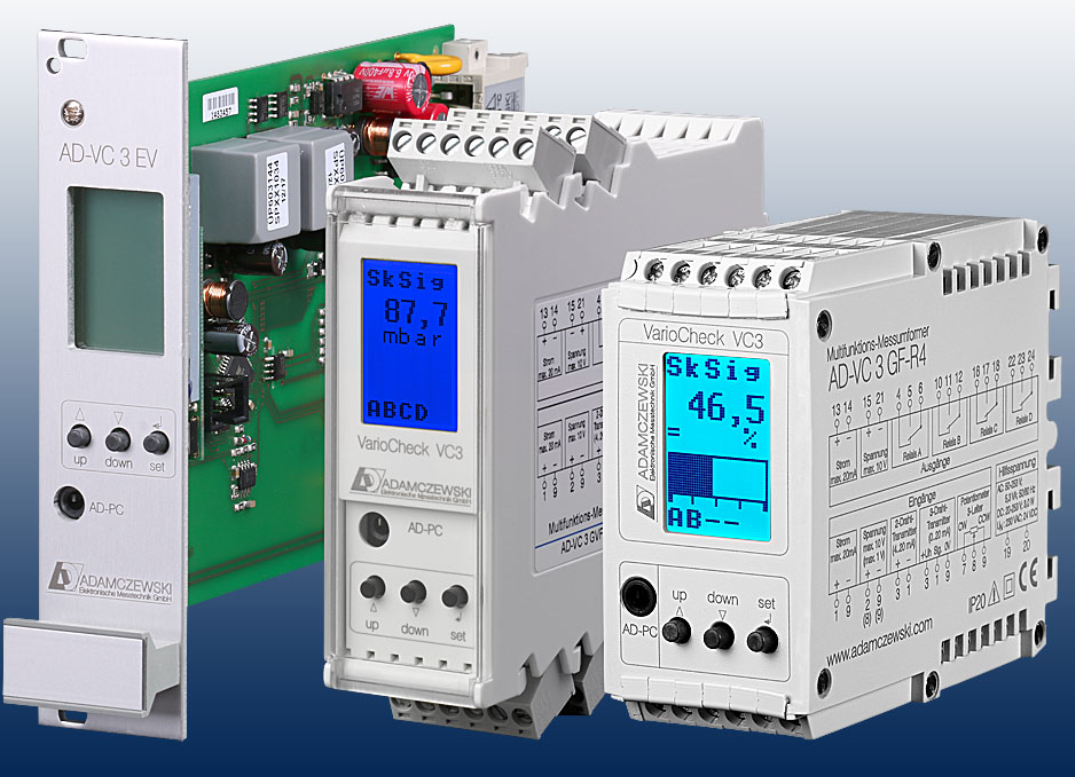

VarioCheck AD-VC 3系列
產品介紹
VarioCheck AD-VC 3系列的數字多功能測量變壓器是可自由編程的數字測量變送器，具有兩個模擬輸出和最多4個限值繼電器。豐富的標準設備和附加選項解決了現代評估中幾乎所有可以想象的任務?？梢灾苯釉谠O(shè)備上輸入所有特性，或者使用配置軟件”AD-Studio”。VarioCheck AD-VC 3通過積分的功能模塊，如限值消息、自由調整的滯后、可選擇的繼電器功能、延時開關、自動或手動模擬模式、自由線性化曲線以及廣泛的供電電壓范圍，實現了通用且安全的測量值記錄的所有任務。
產品參數
