| 壓力范圍為60000磅/平方英寸（4200巴） 壓力測量精度為0.02%FS 本質安全（Ex） 完全溫度補償精度 ISO 17025認證校準，包括數據 |
憑借先進的微處理器技術和最先進的硅壓力傳感器，Additel的158Ex系列數字壓力模塊為廣泛的壓力應用提供了準確、可靠和經濟的解決方案。即使在危險環境中，我們的本質安全（Ex）模型也能提供盡可能好的結果。為了達到最佳性能，模塊中的每個硅壓力傳感器在組裝前都經過了專門的老化、測試和篩選。Additel 158Ex被設計為可現場切換的壓力模塊，可與Additel 273Ex和260Ex手持設備一起使用，其性能和可靠性無與倫比。如果本質安全是您工作量的關鍵要求，當您將我們的ADT273Ex或ADT260Ex手持式校準器與我們的任何ADT158Ex壓力模塊結合使用時，我們將為您提供保障。
特點：
表壓測量精度為0.02%FS
壓力范圍為60000磅/平方英寸（4200巴）

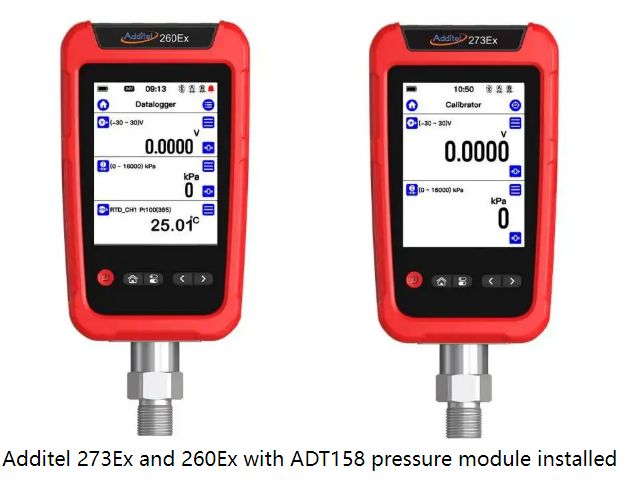

具有ADT260EX和ADT273EX的本質安全型
高級溫度補償
包含ISO 17025認證的校準和數據
| Standard Accuracy | ||
|---|---|---|
| ? | CPXXX | GPXXX |
| Operating temperature | -10°C to 50°C (14°F to 122°F) | |
| Storage temperature | -20°C to 70°C (-4°F to 158°F) | |
| Relative humidity | 95% RH | |
| Pressure connections (for external use only) | 1/4NPT, 1/2NPT, 1/4BSP, 1/2BPS, M20x15 | |
| Enclosure (for external use only) | SS enclosure | |
| Intrinisic Safety | ATEX certified intrinsically safe only with ADT260EX & ADT273EX | |
| Dimensions (Dia x H) | 33 mm x 123 mm (1.3” x 4.84”) | |
| Weight | 0.4 kg (0.99 lb) | |
| Warranty | 1 Year | |
| Gauge Pressure [1] | |||||
|---|---|---|---|---|---|
| P/N | Pressure Range | Media [2] | Accuracy (%FS) | Burst Pressure | |
| (psi) | (bar) | ||||
| V15 | -15 | -1 | G | 0.02 | 3× |
| GP2 | 2 | 0.16 | G | 0.05 | 3× |
| GP5 | 5 | 0.35 | G | 0.05 | 3× |
| GP10 | 10 | 0.7 | G | 0.02 | 3× |
| GP15 | 15 | 1 | G | 0.02 | 3× |
| GP30 | 30 | 2 | G | 0.02 | 3× |
| GP50 | 50 | 3.5 | G , L | 0.02 | 3× |
| GP100 | 100 | 7 | G , L | 0.02 | 3× |
| GP150 | 150 | 10 | G , L | 0.02 | 3× |
| GP300 | 300 | 20 | G , L | 0.02 | 3× |
| GP500 | 500 | 35 | G , L | 0.02 | 3× |
| GP600 | 600 | 40 | G , L | 0.02 | 3× |
| GP1K | 1000 | 70 | G , L | 0.02 | 3× |
| GP1.5K | 1500 | 100 | G , L | 0.02 | 3× |
| GP2K | 2000 | 140 | G , L | 0.02 | 3× |
| GP3K | 3000 | 200 | G , L | 0.02 | 3× |
| GP5K | 5000 | 350 | G , L | 0.02 | 3× |
| GP10K | 10000 | 700 | G , L | 0.02 | 2× |
| GP15K | 15000 | 1000 | G , L | 0.05 | 2x |
| GP20K | 20000 | 1400 | G , L | 0.05 | 1.5x |
| GP25K | 25000 | 1600 | G , L | 0.05 | 1.5x |
| GP30K | 30000 | 2000 | G , L | 0.05 | 1.5x |
| GP36K | 36000 | 2500 | G , L | 0.05 | 1.5x |
| GP40K | 40000 | 2800 | G , L | 0.05 | 1.35x |
| GP50K | 50000 | 3500 | G , L | 0.1 | 1.2x |
| GP60K | 60000 | 4200 | G , L | 0.1 | 1.1x |
| [1] Sealed gauge pressure for above 1000 psi | |||||
| [2] G=Gas, L=Liquid | |||||
| Compound Pressure | ||||||
|---|---|---|---|---|---|---|
| P/N | Pressure Range | Media | Accuracy | Pressure Rating | ||
| psig | bar.g | Burst | Over Pressure | |||
| CP2 | ±2 | ±0.16 | G | 0.05% FS | 3x | 1.2x |
| CP5 | ±5 | ±0.35 | G | 0.02% FS | 3x | 1.2x |
| CP10 | ±10 | ±0.7 | G | 0.02% FS | 3x | 1.2x |
| CP15 | ±15 | ±1.0 | G | 0.02% FS | 3x | 1.2x |
| CP30 | -15 to 30 | -1 to 2.0 | G | 0.02% FS | 3x | 1.2x |
| CP50 | -15 to 50 | -1 to 3.5 | G | 0.02% FS | 3x | 1.2x |
| CP100 | -15 to 100 | -1 to 7.0 | G,L | 0.02% FS | 3x | 1.2x |
| CP150 | -15 to 150 | -1 to 10 | G,L | 0.02% FS | 3x | 1.2x |
| CP300 | -15 to 300 | -1 to 20 | G,L | 0.02% FS | 3x | 1.2x |
| CP500 | -15 to 500 | -1 to 35 | G,L | 0.02% FS | 3x | 1.2x |
| CP600 | -15 to 600 | -1 to 40 | G,L | 0.02% FS | 3x | 1.2x |
| CP1K | -15 to 1,000 | -1 to 70 | G,L | 0.02% FS | 3x | 1.2x |
| CP2K | -15 to 2,000 | -1 to 140 | G,L | 0.02% FS | 3x | 1.2x |
| CP3K | -15 to 3,000 | -1 to 200 | G,L | 0.02% FS | 3x | 1.2x |
| CP5K | -15 to 5,000 | -1 to 350 | G,L | 0.02% FS | 3x | 1.2x |
| Barometric Pressure | |||||
|---|---|---|---|---|---|
| P/N | Pressure Range | Media | Accuracy | Burst Pressure | |
| Low | High | ||||
| BP | 60 kPa | 110 kPa | G | 40 Pa | 3× |
