 | 0.02%、0.05%FS精度 本質安全 現場可切換壓力模塊 雙數字壓力模塊輸入 彩色觸摸屏顯示器 內置快速測試任務功能 內置氣壓計 類似智能手機的直觀界面 藍牙和USB通信 可選HART通信 與Additel的Link移動應用程序通信 ISO 17025認證校準，包括數據 |
Additel的273Ex是一款本質安全的手持式多功能壓力校準器，具有彩色觸摸屏、類似智能手機的界面、內置快速測試任務和可選HART通信功能。這種創新的Additel產品極大地改進了防爆現場測試和校準。Additel 273Ex具有內置的大氣壓力傳感器，因此可以方便地實現絕對壓力和表壓。通過三個壓力模塊輸入，一個在底部可切換，兩個在側面可切換，用戶可以相應地配置設置，并輕松滿足幾乎任何環境中的壓力校準和測試需求。
本質安全
ADT273Ex已通過權威機構最嚴格的ATEX、IECEX本質安全認證。防爆等級為Ex ia IIC T4 Ga。可廣泛應用于潛在爆炸性氣體環境，如石油和天然氣平臺、煉油廠、化工和石化廠、制藥行業、能源和天然氣加工行業。每個本質安全校準器都有一個先進的透反彩色LCD顯示屏，在陽光直射下觀看時可增強可視性。無論你的工作帶你去哪里，這些校準器都能勝任任務。
現代用戶體驗：
Additel在使用這款革命性的新型校準器時，為我們的客戶提供了盡可能好的體驗。與市場上的其他校準器相比，彩色觸摸屏顯示器提供了令人耳目一新的直觀體驗。憑借易于導航的菜單結構和快速的觸摸屏響應，您會發現ADT273Ex校準器使用起來簡單而強大。這種易于閱讀的顯示器不僅使用起來很有趣，而且堅固耐用，可以滿足現場或實驗室繁忙技術人員的需求。
可選HART通信：
ADT273Ex手持式壓力校準器支持HART通信協議，為寬壓力范圍內的變送器提供壓力校準解決方案。ADT273是一款高度便攜的設備，可以使用現場可切換的壓力傳感器精確測量壓力，并讀取傳感器產生的電流或mV。它甚至可以在校準期間向功率傳感器或變送器提供激勵電壓（回路電源）。
| Functional Features | |
|---|---|
| Scaling | User can convert measured current, voltage and frequency values into pressure, temperature and flow values. Three conversion functions available: linearity, square and square root |
| Filtering | Average sliding filter (sampling number: 1 ~ 50) First-order linear filter (First-order coefficient: 0.01 ~ 1) |
| Switch | The measurement value will be automatically displayed at the moment the switch change of state. The latest 8 state changes will be stored in the memory. |
| Pressure Tare | Tare value is set through the user interface |
| Pressure Stability Indicator | Stability time and criteria is selectable |
| General Specifications | ||
|---|---|---|

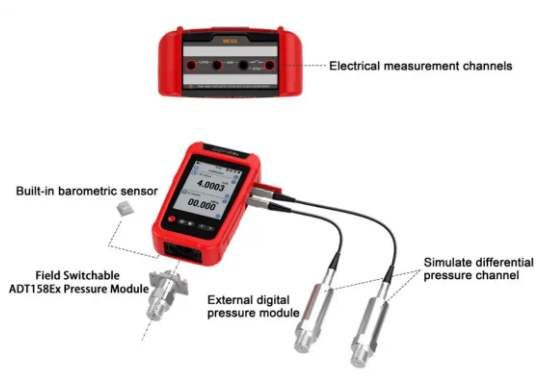

| Input Channels | Top: 1 electrical signal measurement channel, φ4mm banana jacks | |
| Right side: 2 channels for external digital pressure modules, 5-core dedicated aviation plug | ||
| Bottom: embedded digital pressure module (model ADT158Ex), field switchable. | ||
| Internal: 1 embedded atmospheric pressure sensor | ||
| Barometric Accuracy | ±55 Pa | |
| Measurement Rate | mV, V, mA & frequency: 3 times/sec | |
| Pressure module: 1~10 times/sec selectable (3 as default) | ||
| Barometer: 1 time/sec | ||
| Power | 4000mAh, 14.4Wh explosion-proof intelligent lithium battery, charging time = 6~8 hours, battery can be charged independently, typical working time 100 hours (measurement mode) | |
| Environmental | Guaranteed temperature range of technical specifications: (-10 ~ 50)°C | |
| Operating temperature: (-20 ~ 50)°C | ||
| Storage temperature: (-30 ~ 70)°C | ||
| Humidity: 0% to 95% RH, non-condensing. | ||
| Altitude: 3000 meters | ||
| Warm-up Time | 10 min to fully meet technical specifications | |
| Port Protection Voltage | 30V max | |
| Explosion-proof Grade | ATEX & IECEX: Ex ia IIC T4 Ga (Ta = -10°C ~ 50°C) | |
| CE Certification | TUV IEC61326, IEC61010 | |
| Rohs Compliance | Rohs II Directive 2011/65/EU, EN50581:2012 | |
| Protection Level | IP67, 1 meter drop test | |
| Communication | Isolate USB-Type C (slave), Bluetooth | |
| Display | 4.4-inch color display capacitive screen, transflective, with LED backlight | |
| Size | 6.97″ x 4.13″ x 2.04″ (177 mm x 105 mm x 52 mm) which doesn’t include bottom ADT158Ex. | |
| Weight | 1.98 lb (0.9 kg) | |
| Electrical Specifications | ||||
|---|---|---|---|---|
| Specification | Range | Accuracy | Resolution | Note |
| Voltage Measurement | ±300mV | 0.015%RDG + 0.005%FS | 1uV | Impedance: >100MΩ |
| ±30V | 0.015%RDG + 0.005%FS | 0.1mV | Impedance: >1MΩ | |
| Current Measurement | ±30mA | 0.015%RDG + 0.005%FS | 0.1uA | Impedance: < 40Ω |
| Frequency Measurement | 0.01~50000Hz (auto range) | 0.005% RDG + 2 last digit | 6-digit auto-resolution | Min threshold voltage: 2.5V |
| Units: Hz, kHz, MHz, CPM, CPH, s, ms, us | ||||
| Switch On-Off Measurement | Inspection voltage: (3 ~ 30)V | |||
| Response speed: < 10ms, supports wet and dry switch | ||||
| Pulse Count | 0 ~ 9999999, optional rising edge and falling edge | |||
| Min threshold voltage: 2.5V | ||||
| Loop Power | 20V ± 10%, max output impedance: 320Ω, max load current: 25mA | |||
| Pressure Technichal Specifications | |
|---|---|
| Pressure resolution | 4, 5, or 6 digit resolution (user selectable) |
| Temperature Compensation | -10°C~50 °C |
| Pressure Module Type | Built-in digital pressure module: ADT158Ex, for more detailed information, please see ADT 158Ex datasheet. External digital pressure module: ADT161Ex, for more detailed information, please see ADT 161Ex datasheet. |
| Specifications | Refer to the technical specification of the ADT158Ex and ADT161Ex |
| High Static Pressure and Differential Pressure Synthesis Index | Two modules must be with the same range; Typical Differential pressure accuracy of 0.002%FS or 0.02%RD, whichever is greater when using two 0.02%FS external modules. Typical Differential pressure accuracy of 0.002%FS or 0.05%RD, whichever is greater when using two 0.05%FS external modules. |
| Gauge Pressure [1] | |||||
|---|---|---|---|---|---|
| P/N | Pressure Range | Media [2] | Accuracy (%FS) | Burst Pressure | |
| (psi) | (bar) | ||||
| V15 | -15 | -1 | G | 0.02 | 3× |
| GP2 | 2 | 0.16 | G | 0.05 | 3× |
| GP5 | 5 | 0.35 | G | 0.05 | 3× |
| GP10 | 10 | 0.7 | G | 0.02 | 3× |
| GP15 | 15 | 1 | G | 0.02 | 3× |
| GP30 | 30 | 2 | G | 0.02 | 3× |
| GP50 | 50 | 3.5 | G , L | 0.02 | 3× |
| GP100 | 100 | 7 | G , L | 0.02 | 3× |
| GP150 | 150 | 10 | G , L | 0.02 | 3× |
| GP300 | 300 | 20 | G , L | 0.02 | 3× |
| GP500 | 500 | 35 | G , L | 0.02 | 3× |
| GP600 | 600 | 40 | G , L | 0.02 | 3× |
| GP1K | 1000 | 70 | G , L | 0.02 | 3× |
| GP1.5K | 1500 | 100 | G , L | 0.02 | 3× |
| GP2K | 2000 | 140 | G , L | 0.02 | 3× |
| GP3K | 3000 | 200 | G , L | 0.02 | 3× |
| GP5K | 5000 | 350 | G , L | 0.02 | 3× |
| GP10K | 10000 | 700 | G , L | 0.02 | 2× |
| GP15K | 15000 | 1000 | G , L | 0.05 | 2x |
| GP20K | 20000 | 1400 | G , L | 0.05 | 1.5x |
| GP25K | 25000 | 1600 | G , L | 0.05 | 1.5x |
| GP30K | 30000 | 2000 | G , L | 0.05 | 1.5x |
| GP36K | 36000 | 2500 | G , L | 0.05 | 1.5x |
| GP40K | 40000 | 2800 | G , L | 0.05 | 1.35x |
| GP50K | 50000 | 3500 | G , L | 0.1 | 1.2x |
| GP60K | 60000 | 4200 | G,L | 0.1 | 1.1x |
| [1] Sealed gauge pressure for above 1000 psi | |||||
| [2] G=Gas, L=Liquid | |||||
| Compound Pressure | ||||||
|---|---|---|---|---|---|---|
| P/N | Pressure Range | Media | Accuracy | Pressure Rating | ||
| psi | bar | Burst | Over Pressure | |||
| CP2 | ±2 | ±0.16 | G | 0.05% FS | 3x | 1.2x |
| CP5 | ±5 | ±0.35 | G | 0.02% FS | 3x | 1.2x |
| CP10 | ±10 | ±0.7 | G | 0.02% FS | 3x | 1.2x |
| CP15 | ±15 | ±1.0 | G | 0.02% FS | 3x | 1.2x |
| CP30 | -15 to 30 | -1 to 2.0 | G | 0.02% FS | 3x | 1.2x |
| CP50 | -15 to 50 | -1 to 3.5 | G | 0.02% FS | 3x | 1.2x |
| CP100 | -15 to 100 | -1 to 7.0 | G,L | 0.02% FS | 3x | 1.2x |
| CP300 | -15 to 300 | -1 to 20 | G,L | 0.02% FS | 3x | 1.2x |
| CP500 | -15 to 500 | -1 to 35 | G,L | 0.02% FS | 3x | 1.2x |
| CP600 | -15 to 600 | -1 to 40 | G,L | 0.02% FS | 3x | 1.2x |
| CP1K | -15 to 1,000 | -1 to 70 | G,L | 0.02% FS | 3x | 1.2x |
| CP2K | -15 to 2,000 | -1 to 140 | G,L | 0.02% FS | 3x | 1.2x |
| CP3K | -15 to 3,000 | -1 to 200 | G,L | 0.02% FS | 3x | 1.2x |
| CP5K | -15 to 5,000 | -1 to 350 | G,L | 0.02% FS | 3x | 1.2x |
| CP10K | -15 to 10,000 | -1 to 700 | G,L | 0.02% FS | 2x | 1.2x |
