| 自動和獨立的壓力產生和控制到1000磅/平方英寸（69巴）或1200百帕 0.02%FS的標準精度模型 用于多量程選擇的兩個可拆卸內部壓力模塊（用于氣壓的單個壓力模塊） 0.003%FS或0.02hPa的控制穩定性 便攜式，設計用于現場和實驗室 能夠測量兩個外部壓力模塊 Wi-Fi、藍牙、USB和以太網通信 HART和profibus通信 數據記錄和任務管理 獲得專利的電動泵技術和提高的速度 ISO 17025認證校準，包括數據 |

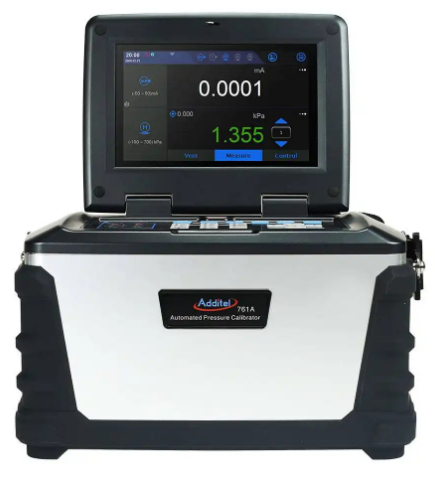

在Additel，創新和持續改進是我們公司文化和產品的一部分。當我們開始交付Additel 761A系列校準器時，我們知道我們需要為現有校準器系列（Additel 761系列）提供突破性改進和附加價值。ADT761A有許多改進：將壓力范圍提高到1000磅/平方英寸（70巴），可拆卸內部壓力模塊提高到0.02%FS，提高了壓力速度，能夠讀取兩個外部壓力模塊，觸摸屏顯示器，Wi-Fi，藍牙和以太網通信，使原電池壽命延長一倍，等等！
Additel 761A-LLP專為低壓校準而設計，配有±30英寸水柱（±75毫巴）的高量程模塊和您選擇的低量程模塊，范圍從±20英寸水柱到低至±0.25英寸水柱（？0至±0.62毫巴）。該裝置的精度為0.05%FS，控制穩定性優于0.005%FS。所有測量都可以在差壓或表壓下進行。
Additel 761A-D還提供差壓和表壓測量，其范圍為-13.5至35磅/平方英寸（-0.95至2.5巴）。該裝置配有一個CP35模塊（-13.5至35 psi）和一個您選擇的低量程模塊，量程低至±10 inH2O（25 mbar）。每個ADT761A-D都可以預先配置適合您需要的模塊，以便在執行校準的壓力下為您提供最佳精度。
Additel 761A-500將產生并控制高達500 psig（35 bar.g）的真空壓力。由于內置氣壓計，可以實現表壓和絕對壓力。每個裝置都配有適用于高量程的CP500模塊（-12.5至500 psig），低量程可根據低至10 psig（0.7 bar.g）的各種模塊進行預配置。
Additel 761A-1K將快速產生并控制高達1000 psig（70 bar.g）的真空壓力。與ADT761A-500一樣，由于內置氣壓計，可以實現表壓和絕對壓力。每個裝置都配有一個適用于高量程的CP1K模塊（-12.5至1000 psig），低量程可根據低至30 psig（2 bar.g）的各種模塊進行預配置。
Additel 761A-BP是為氣壓計傳感器的校準而設計的。該裝置的量程為100至1200 hPa，精度為0.01%FS，非常適合在工作臺或現場進行校準。
| Pressure Specifications | |||||
|---|---|---|---|---|---|
| Specification | 761A-LLP | 761A-D | 761A-500 | 761A-1K | 761A-BP |
| Max Pressure Range | 30 inH2O (75 mbar) | 35 psi (2.5 bar) | 500 psig (35 bar.g) | 1,000 pisg (70 bar.g) | 1,200 hPa sensor |
| Min Pressure Range | -30 inH2O (-75 mbar) | -13.5 psi (-0.95 bar) | -13 psi (-0.9 bar) | -13 psi (-0.9 bar) | 100 hPa sensor |
| Accuracy(1) | 0.05%FS | 0.02%FS | 0.02%FS | 0.02%FS | 0.01%FS |
| Stability | 0.005%FS or 0.05 Pa | 0.005%FS | 0.005%FS | 0.005%FS | 0.02 hPa |
| Pressure Type | Differential, Gauge | Differential, Gauge | Gauge, Absolute | Gauge, Absolute | Absolute |
| Over Range Indication | 1.2 | ||||
| Resolution | 6 digits | ||||
| Measurement Units | Pa, hPa, kPa, mPa, bar, mbar, psi, mmHg@0°C, cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C, mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, inH2O@20°C, inH2O@68°F, kg/m2, mtorr, torr, lb/ft2, tsi, custom | ||||
| Barometric Accuracy | N/A | N/A | 60 Pa | 60 Pa | N/A |
| [1] One year accuracy (including 1 year stability). FS specification applies to the span of the module range. | |||||
| [2] Specification based on gauge measurement. An additional 60 pa uncertainty will need to be included when measuring in absolute mode. Applicable only for use with the ADT761A-500 and ADT761A-1K | |||||
| * Additel 761A calibrators support 160A intelligent digital pressure modules that are available for gauge, vacuum and absolute pressure from -15 psi to 60,000 psi (-1 bar to 4200 bar).? For detailed specs, see the 160A pressure module data sheet. | |||||
| Electrical Specifications | ||||
|---|---|---|---|---|
| Specification | Range | Resolution | Accuracy | Note |
| mA Measure | Auto-ranging, ±25 or ±50 mA | 0.1 μA | 0.008%RD+0.004%FS | Impedance<10Ω |
| V Measure | ±300 mV | 1 μV | 0.008%RD+0.002%FS | Impedance >1GΩ |
| Auto-ranging, ±5, ±12 or ±30 V | ±5V:20 μV | 0.008%RD+0.002%FS | Impedance >1MΩ | |
| ±12V:100 μV | ||||
| ±30V:100 μV | ||||
| Loop Power Source | 24 V | N/A | ±0.24 V | 50 mA (Max Loading) |
| mA Source | 0 to 2.5 mA or 2.5 to 25 mA | 0-2.5 mA: 0.05μA | 0-2.5 mA: 0.008%RD+0.2 μA | 20 mA @ 1KΩ |
| 0-25 mA:0.5μA | 0-25 mA: 0.008%RD+1.0 μA | |||
| Power Source | 16 to 30 V | 1 V | 1V | 70 mA (Max Loading) |
| V Source | 0 to 16 V | 250 μV | 0.008%RD+500 μV | |
| Pressure Switch | Mechanical Switch, Live Mechanical Switch, NPN Switch, PNP Switch | N/A | N/A | Response time<10 ms. If the switch is live, voltage range will be (3-30) V |
| Temperature Compensation | 18°C to 28°C | |||
| Temperature Coefficient | Outside of 5°C to 35°C: <±0.0005%RD+0.0001%FS/°C | |||
| Misuse Protection | Up to 30 V on any two sockets | |||
| Internal Module Specification and Compatibility | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | inH2O [6] | mbar [6] | Media | Accuracy (%FS)(1) | Burst Pressure | 761A-LLP | 761A-D | 761A-500 | 761A-1K |
| ADT155-20-DP025 | ±0.25 | ±0.62 | G | 0.2 (2) | 100x | ? | |||
| ADT155-10-DP050 | ±0.5 | ±1.25 | G | 0.1(3) | 100x | ? | |||
| ADT155-05-DP1 | ±1 | ±2.5 | G | 0.05(4) | 100x | ? | |||
| ADT155-05-DP2 | ±2 | ±5 | G | 0.05(4) | 100x | ? | |||
| ADT155-05-DP5 | ±5 | ±10 | G | 0.05(4) | 50x | ? | |||
| ADT155-05-DP10 | ±10 | ±25 | G | 0.05(4) | 20x | ? | ? | ||
| ADT155-05-DP20 | ±20 | ±50 | G | 0.05 | 20x | ? | ? | ||
| ADT155-05-DP30 | ±30 | ±75 | G | 0.05 | 20x | ? | ? | ||
| ADT155-05-DP50 | ±50 | ±125 | G | 0.05 | 3x | ? | |||
| ADT155-02-DP100 | ±100 | ±250 | G | 0.02 | 3x | ? | |||
| ADT155-02-DP150 | ±150 | ±350 | G | 0.02 | 3x | ? | |||
| ADT155-02-DP300 | ±300 | ±700 | G | 0.02 | 3x | ? | |||
| ADT155-02-DP400 | -380 to 400 | -950 to 1K | G | 0.02 | 3x | ? | |||
| ADT155-02-DP800 | -380 to 800 | -950 to 2K | G | 0.02 | 3x | ? | |||
| ADT155-02-DP1K | -380 to 1K | -950 to 2.5K | G | 0.02 | 3x | ? | |||
| [1] FS specification applies to the span of the module range. Accuracy includes one-year stability, except for DP025 to DP10 modules. | |||||||||
| [2] Accuracy is a 6 months spec, 1-year long-term drift is 0.2%FS. | |||||||||
| [3] Accuracy is a 6 months spec, 1-year long-term drift is 0.1%FS. | |||||||||
| [4] Accuracy is a 6 months spec, 1-year long-term drift is 0.05%FS. | |||||||||
| [5] Specification based on gauge measurement. An additional 60 pa uncertainty will need to be included when measuring in absolute mode.? Applicable only for use with the ADT761A-500 and ADT761A-1K. | |||||||||
| [6] The low module pressure range may be outside the pressure range of the calibrator.? APplicable only for use with the ADT761A-500 and ADT761A-1K. | |||||||||
| Internal Module Specification and Compatibility (Gauge Pressure) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | psig | bar.g | Media | Accuracy (%FS)(1) | Burst Pressure | 761A-LLP | 761A-D | 761A-500 | 761A-1K |
| ADT155-02-CP10 | ±10 | ±0.7 | G | 0.02[5] | 3x | ? | ? | ||
| ADT155-02-CP15 | -13.5 to 15 | -0.95 to 1 | G | 0.02[5] | 3x | ? | ? | ||
| ADT155-02-CP30 | -13.5 to 30 | -0.95 to 2 | G | 0.02[5] | 3x | ? | ? | ? | |
| ADT155-02-CP35 | -13.5 to 35 | -0.95 to 2.5 | G | 0.02[5] | 3x | ? | ? | ? | |
| ADT155-02-CP50 | -13.5 to 50 | -0.90 to 3.5 | G | 0.02[5] | 3x | ? | ? | ||
| ADT155-02-CP100 | -13.5 to 100 | -0.95 to 7 | G | 0.02[5] | 3x | ? | ? | ||
| ADT155-02-CP150 | -13.5 to 150 | -0.95 to 10 | G | 0.02[5] | 3x | ? | ? | ||
| ADT155-02-CP200 | -13.5 to 200 | -0.95 to 14 | G | 0.02[5] | 3x | ? | ? | ||
| ADT155-02-CP300 | -13.5 to 300 | -0.95 to 20 | G | 0.02[5] | 3x | ? | ? | ||
| ADT155-02-CP500 | -13.5 to 500 | -0.95 to 35 | G | 0.02[5] | 3x | ? | ? | ||
| ADT155-02-CP600 | -13.5 to 600 | -0.95 to 40 | G | 0.02[5] | 3x | ? | |||
| ADT155-02-CP1K | -13.5 to 1K | -0.95 to 70 | G | 0.02[5] | 3x | ? | |||
| [1] FS specification applies to the span of the module range. Accuracy includes one-year stability, except for DP025 to DP10 modules. | |||||||||
| [5] Specification based on gauge measurement. An additional 60 pa uncertainty will need to be included when measuring in absolute mode.Applicable only for use with the ADT761A-500 and ADT761A-1K. | |||||||||
| General Specifications | |
|---|---|
| Specification | Description |
| User Interface | Color touch screen and/or keypad operation |
| Four total: one electrical, high or low internal | |
| Channels | pressure module, two external pressure modules |
| Enclosure IP Rating | IP31 |
| Battery | Rechargeable Li-Ion battery, typically 16 hours of operation, recharges in less than 5 hours. |
| Power | Rechargeable Li-Ion battery, external power 110/220 V power adapter 27 V |
| Display | 7” TFT touch screen 800 x 480 color |
| Communications | USB, LAN, Bluetooth, Wi-Fi |
| Weight | <17.52 lb (7.95 KG) |
| Size | 11.77 x 7.60 x 7.56 in (299 x 193 x 192 mm) |
| Certification | ISO17025 accredited certificate of calibration with NIST-traceable data |
| Data Storage | 6 GB |
| Data Logging | Up to 1,000,000 readings (data and time stamped) |
| HART Communicator | Read, configure and calibrate HART devices – DD files updated periodically |
| Task documentation | Up to 1000 tasks can be stored with data |
| Automation Functions | Switch test, auto step, leak test |
| User Interface Localization | English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese, and Russian |
| Pump life | >100,000 cycles |
| Environmental Specifications | Operating temperature: 32 °F to 122 °F( 0°C to 50°C) |
| Compensated temperature: 32 °F to 122 °F( 0°C to 50°C) | |
| Storage temperature: -20°C to 60°C ( -4 °F to 120 °F) | |
| Humidity: <90%, non-condensing | |
| Vibration and Shock | Vibration: 4g (20 to 2,000 Hz) |
| Shock: 8g, 1 meter drop test | |
| Compliance | CE |
| Software Compatibility | ACal, Additel Land and Additel Link for access via mobile application |
| Warranty | 1 year |
| Pressure Range | ||||||
|---|---|---|---|---|---|---|
| Type | Model | Pressure Range | High-Range Pressure Module | Low-Range Pressure Module | ||
| Range | Accuracy | Range | Accuracy | |||
| Low/Differential Pressure | ADT761A-LLP-05-DPXX | -75 to 75 mbar (-30 to 30 inH2O) | DP30: -75 to 75 mbar (-30 to 30 inH2O) | 0.05%FS | User selectable from DP20 to DP025 | See Internal Module Table |
| ADT761A-D-02-DPXX-X | -0.95 to 2.5 bar (-13.5 to 35 psi) | CP35: -0.95 to 2.5 bar (-13.5 to 35 psi) | 0.02%FS | User selectable from DP10 to CP30 | See Internal Module Table | |
| Standard Accuracy Gauge/Absolute Pressure | ADT761A-500-XX-CPXX-X | -0.9 to 35 bar (-13 to 500 psi) | CP500: -0.9 to 35 bar (-13 to 500 psi) | 0.02%FS | User selectable from CP10 to CP300 | See Internal Module Table |
| ADT761A-1K-XX-CPXX-X | -0.9 to 70 bar (-13 to 1000 psi) | CP1K: -0.9 to 70 bar (-13 to 1000 psi) | 0.02%FS | User selectable from CP30 to CP600 | See Internal Module Table | |
