| 壓力范圍從真空到3000磅/平方英寸（200巴） 精確精度模型達到讀數的0.01% 標準模型精度為滿刻度的0.02% HART通信和Profibus PA（不包括在ADT780S中） 0.003%FS的控制穩定性 易于使用的基于圖標的用戶界面 ISO 17025認證校準，包括數據 |
多年來，我們?yōu)楝F(xiàn)場應用提供了最耐用、最準確、最優質的壓力校準產品。Additel 780控制器將同樣的耐用性、準確性和質量融入到一個新的臺式控制器中，該控制器具有非常易于使用的功能和特點。Additel 780提供兩個基本范圍：至1000 psi（70巴）和至3000 psi（200巴）。基本范圍建立了控制器的最大控制范圍。每種配置都包括一個控制傳感器，您可以在其中預選最適合您應用的傳感器范圍。可以使用外部和內部傳感器，這允許在未來擴展范圍和精度能力。
模塊化設計
每個單元都配有一個智能壓力模塊，可根據提供的多種產品進行配置。標準精度傳感器（ADT160A-CPXX）是硅壓力傳感器，1年精度為0.02%FS。基于石英的精密傳感器將1年的精度規格提高到讀數的0.005%+0.005%FS。每個傳感器在組裝前都經過了專門的老化、測試和篩選。組裝后，在-10°C至50°C的范圍內對每個傳感器進行溫度補償。Additel 780允許一個內部壓力傳感器和一個外部壓力傳感器。該裝置的模塊化設計可使內部和外部傳感器與其他智能壓力模塊互換。除了智能壓力模塊外，Additel 780還內置氣壓傳感器。這允許在表壓和絕對壓力之間進行切換。
獨立解決方案
典型的壓力控制器將需要用于氣體供應的氮氣瓶，這使得在不必移動或連接到另一個瓶的情況下難以移動控制器。Additel 780的獨特之處在于，通過可選的電動泵，您可以在不需要氣瓶的情況下產生1000磅/平方英寸（70巴）的壓力。
流程功能
780壓力控制器被認為可以處理非常廣泛的應用，這些應用通常需要壓力校準器。內置功能，包括電流和電壓測量功能、24伏回路電源、HART?和Profibus PA通信、開關測量功能、可選模擬輸出等。
Additel 780

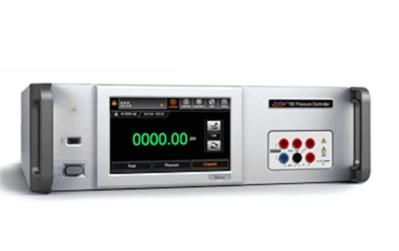

Additel 780是一款臺式控制器，專為功能性和易用性而設計。該控制器的量程高達1000磅/平方英寸，或帶氣瓶的3000磅/平方米，標準精度為0.02%（可能有更好的精度），適用于許多壓力應用。此外，780還包括HART?和Profibus PA通信，以允許與其他工藝設備進行交互。
Additel 780S
要獲得比Additel 780更簡單的解決方案，請考慮經濟且用戶友好的Additel 780S。（包含與780本身類似的功能，HART和Profibus通信除外）
| Specification | ADT780-1K | ADT780-3K |
|---|---|---|
| Pressure range | -14.5 to 1,000 psi (-0.95 to 70 bar) | -14.5 to 3,000 psi (-0.95 to 200 bar)[1] |
| Control stability | 0.003% FS (stability based on % FS of control sensor range) | |
| Precision (includes 1 year stability) | See pressure range table | |
| Media | Clean gas | |
| Over-range indication | 103% to 120% (based on sensor) | |
| Resolution | 4, 5, 6, or 7 digits (user selectable)[2] | |
| Pressure type | Gauge, Absolute | |
| Warm up time | 15 minutes | |
| Measurement units | Pa, hPa, kPa, MPa, bar, mbar, psi, mmHg@0°C,cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C, mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, kg/m2, kg/cm2, mtorr, torr, atm, lb/ft2, tsi, user selectable | |
| Minimum control pressure[3] | 0.0001 psi | 0.001 psi |
| BAROMETRIC MEASUREMENT SPECIFICATION | |
|---|---|
| Barometer | Accuracy |
| Standard | 55n Pa |
| High Accuracy (HABP) | 10 Pa |
| Barometer range (60~110) kPa, the accuracy includes calibration uncertainty, linearity, and long term stability | |
| ELECTRICAL MEASURE SPECIFICATIONS | |||
|---|---|---|---|
| Specification | Range | Resolution | Accuracy |
| Volts DC | -30 to 30 V | 0.1 mV | ±0.01% rdg + 1.5 mV |
| -300 to 300 mV | 1 μV | ±0.01% rdg + 15 μV | |
| Current DC | -30 to 30 mA | 0.1 μA | ±0.01% rdg + 1.5 μA |
| Switch test | If the switch has detected voltage, the range is from 3 – 24 V | ||
| DC 24V output | 24V ± 0.24V, max 30 mA | ||
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Specification | ADT780-1K & ADT780-3K |
| Power | 100 to 240V, 50/60 Hz |
| Pressure ports | G1/8 F |
| Storage temperature | -20°C to 70°C |
| Operating environment | 0-90% RH non-condensing |
| Display | 7 inch (17.8 cm) color, touch screen display |
| Weight | 33 lbs (15 kg) |
| Dimensions (DWH) | 16.5 x 17.3 x 5.2 inch (419 x 440 x 132 mm) |
| Mounting | Standard desktop, optional rack mount kit |
| Shock | 4G |
| Vibration | 1G 10Hz~500Hz |
| OTHER SPECIFICATIONS | |
|---|---|
| WiFi specifications | 802.11 b, g, and n |
| Vent | Front panel vent and safety release button (only for 780S) |
| Communications | RS232,USB,LAN,WIFI |
| Stability indicator | User selectable |
| Operating modes | Control, measure, and vent |
| Display modes | Controller – show pressure indication and control |
| Localization | English, Chinese (simplified), German, Spanish, French, Italian, Portuguese, Russian, Japanese |
| Conformity | CE |
| Calibration certification | Accredited certificate of calibration with data included |
| Warranty | 1 year |
| Specifications for ADT780 Internal / External Sensors (Standard Pressure Sensors) | ||||||||
|---|---|---|---|---|---|---|---|---|
| P/N | Pressure Range | Media | Accuracy | Pressure Rating | Suggested Controller Compatibility | Internal/ External Use | ||
| psig | bar.g | Burst | Over Pressure | |||||
| Standard Pressure Sensors | ||||||||
| CP10 | ±10 | ±0.7 | G | 0.02% FS | 3x | 1.2x | ADT780-1K only | Both |
| CP15 | ±15 | ±1.0 | G | 0.02% FS | 3x | 1.2x | ADT780-1K only | Both |
| CP30 | -15 to 30 | -1 to 2.0 | G | 0.02% FS | 3x | 1.2x | ADT780-1K only | Both |
| CP50 | -15 to 50 | -1 to 3.5 | G | 0.02% FS | 3x | 1.2x | ADT780-1K only | Both |
| CP100 | -15 to 100 | -1 to 7.0 | G,L | 0.02% FS | 3x | 1.2x | ADT780-1K only | Both |
| CP300 | -15 to 300 | -1 to 20 | G,L | 0.02% FS | 3x | 1.2x | Both | Both |
| CP500 | -15 to 500 | -1 to 35 | G,L | 0.02% FS | 3x | 1.2x | Both | Both |
| CP600 | -15 to 600 | -1 to 40 | G,L | 0.02% FS | 3x | 1.2x | Both | Both |
| CP1K | -15 to 1,000 | -1 to 70 | G,L | 0.02% FS | 3x | 1.2x | Both | Both |
| CP2K | -15 to 2,000 | -1 to 140 | G,L | 0.02% FS | 3x | 1.2x | ADT780-3K only | Both |
| CP3K | -15 to 3,000 | -1 to 200 | G,L | 0.02% FS | 3x | 1.2x | ADT780-3K only | Both |
| CP5K | -15 to 5,000 | -1 to 350 | G,L | 0.02% FS | 3x | 1.2x | N/A | External |
| CP10K | -15 to 10,000 | -1 to 700 | G,L | 0.02% FS | 2x | 1.2x | N/A | External |
| Specifications for ADT780 Internal / External Sensors (Precision Sensors) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| P/N | Media | Compound Pressure | Absolute Pressure [3] | Pressure Rating | Suggested Controller Compatibility | Internal/ External Use | |||
| Compound Pressure Range (psi, bar) | Accuracy [2] | Absolute Pressure Range (psi.a, bar.a) | Accuracy | Burst | Over Pressure | ||||
| Precision Sensors | |||||||||
| AP15R | G | N/A | N/A | 0 to 15 psi.a (0 to 1 bar.a | 0.01% FS | 2x | 1.2x | ADT780-1K only | Both |
| CP30M | G,L | -15 to 30 psi (-1 to 2.0 bar) | 0.005% rdg + 0.005% FS | 0 to 45 psi.a (0 to 3 bar.a) | 0.05% rdg or 0.005% FS [4] or 0.02%FS [5] | 2x | 1.2x | ADT780-1K only | Both |
| CP50M | G,L | -15 to 50 psi (-1 to 3.5 bar) | 0.005% rdg + 0.005% FS | 0 to 65 psi.a (0 to 4.5 bar.a) | 0.05% rdg or 0.005% FS [4] or 0.02%FS [5] | 2x | 1.2x | ADT780-1K only | Both |
| CP100M | G,L | -15 to 100 psi (-1 to 7.0 bar) | 0.005% rdg + 0.005% FS | 0 to 115 psi.a (0 to 8 bar.a) | 0.05% rdg or 0.005% FS [4] or 0.02%FS [5] | 2x | 1.2x | ADT780-1K only | Both |
| CP300M | G,L | -15 to 300 psi (-1 to 20 bar) | 0.005% rdg + 0.005% FS | 0 to 315 psi.a (0 to 21 bar.a) | 0.05% rdg or 0.005% FS [4] or 0.02%FS [5] | 2x | 1.2x | Both | Both |
| CP500M | G,L | -15 to 500 psi (-1 to 35 bar) | 0.005% rdg + 0.005% FS | 0 to 515 psi.a (0 to 36 bar.a) | 0.05% rdg or 0.005% FS [4] or 0.02%FS [5] | 2x | 1.2x | Both | Both |
| CP1KM | G,L | -15 to 1000 psi (-1 to 70 bar) | 0.01% rdg or 0.003%FS whichever is greater | 0 to 1015 psi.a (0 to 71 bar.a) | 0.01% rdg or 0.003% FS whichever is greater | 2x | 1.2x | Both | Both |
| CP1.5KM | G,L | -15 to 1500 psi (-1 to 100 bar) | 0.01% rdg or 0.003%FS whichever is greater | 0 to 1515 psi.a (0 to 101 bar.a) | 0.01% rdg or 0.003% FS whichever is greater | 2x | 1.2x | ADT780-3K only | Both |
| CP2KM | G,L | -15 to 2000 psi (-1 to 140 bar) | 0.01% rdg or 0.003%FS whichever is greater | 0 to 2015 psi.a (0 to 141 bar.a) | 0.01% rdg or 0.003% FS whichever is greater | 2x | 1.1x | ?ADT780-3K only | Both |
| CP3KM | G,L | -15 to 3000 psi (-1 to 200 bar) | 0.01% rdg or 0.003%FS whichever is greater | 0 to 3015 psi.a (0 to 201 bar.a) | 0.01% rdg or 0.003% FS whichever is greater | 2x | 1.1x | ?ADT780-3K only | Both |
| [1] Contact Additel for other range options. | |||||||||
| [2] Accuracy includes calibration uncertainty, linearity and long-term stability. | |||||||||
| [3] Absolute pressure is created using a combination of CPXM sensor and internal barometer. Internal barometer accuracy is 55 pa accuracy for the standard controller and 10 pa accuracy for the high accuracy barometer option (780-XX-XX-CPXM-X-HABP)，excl AP15R. | |||||||||
| [4] Absolute accuracy when used with high accuracy barometer option. | |||||||||
| [5] Absolute accuracy when used with standard barometer. | |||||||||
| **Low pressure sensors (ADT161-XX-DPX) available for low pressure and differential pressure measurement. Also available for low pressure control (gauge mode only). Ranges from ±1 inH20 (2.5 mbar) to 300 inH2O (700 mbar). | |||||||||
| ADT780-1K-EPUMP | |
|---|---|
| Pressure range | -13.8 to 1,080 psi (-0.95 to 75 bar) |
| Weight | 69.6 lbs (31.6 kg) |
| Size(WHD) | 17.3 X 9.3 X 21.7 inch (440 X 235X 550 mm) |
| Power | 100 to 240V |
| Media | Air |
| Volume | 150 mL |
| Outlet port | G1/8F |
| Storage temperature | -20°C to 70°C |
| Operating environment | 0-90% RH non-condensing |
| Mounting | Standard desktop, optional rack mount |
| Control operation | 2 LED displays with pressure limit settings |
| Typical max pressure time | Approx 2 min with ADT780 Controller |
