5個視頻隔離變壓器，采用薄型機架安裝封裝
這些75歐姆的視頻隔離變壓器可承受500伏以上的直流電壓，具有20Hz至4.5MHz、20Hz至6Mhz的平坦頻率響應。

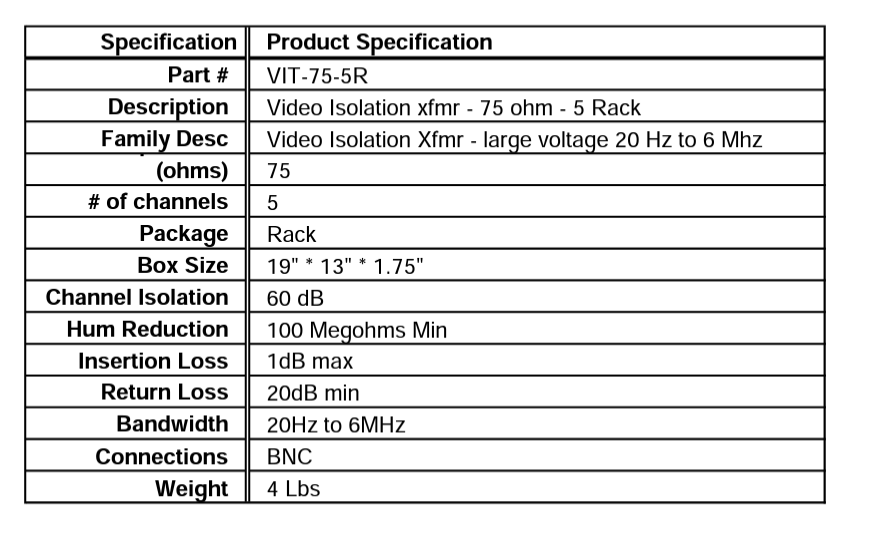

Product Specifications
| General Parameters: | |
|---|---|
| Connectors: | BNC |
| Impedance: | 75 Ohms |
| Bandwidth: | 20Hz to 6MHz |
| Ground loop Isolation: | 60 dB |
| Return Loss: | 20dB min |
| # of channels: | 5 |
| Hum Reduction: | 100 Megohms Min |
| Insertion Loss: | 1dB max |
| Package: | Rack |
| Box Size: | 19″ * 13″ * 1.75″ |
| Weight: | 4 Lbs |
