Allen Avionics LPS系列高性能低通濾波器主要使用切比雪夫和橢圓算法設計和制造低通濾波器。
我們的LPS系列是高性能濾波器，旨在以小于1.0 dB的衰減通過基頻，并衰減95 dB以上的所有諧波。
它們采用適合大多數精密信號調理高性能測試應用的規格和技術設計。
在典型應用中，它們用于增強所有測試發生器和信號源的性能，用于測試模數、數模轉換器、放大器和其他電子元件。
它們提高了所有頻譜分析儀對諧波失真和互調測量的選擇性和動態范圍。這些濾波器裝在屏蔽金屬外殼中，以提供對無用信號的最佳隔離。

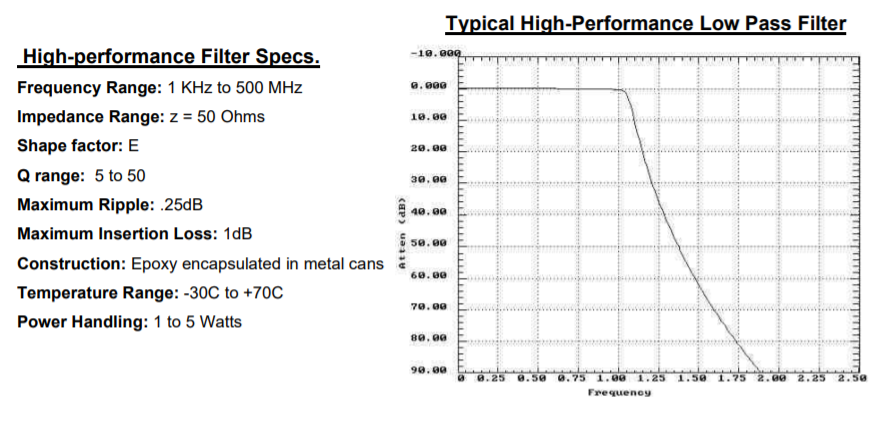

這些過濾器的關鍵參數是:
頻率范圍:1千赫至500兆赫
阻抗:50歐姆
最大插入損耗:1 dB
最大紋波:0.25 dB

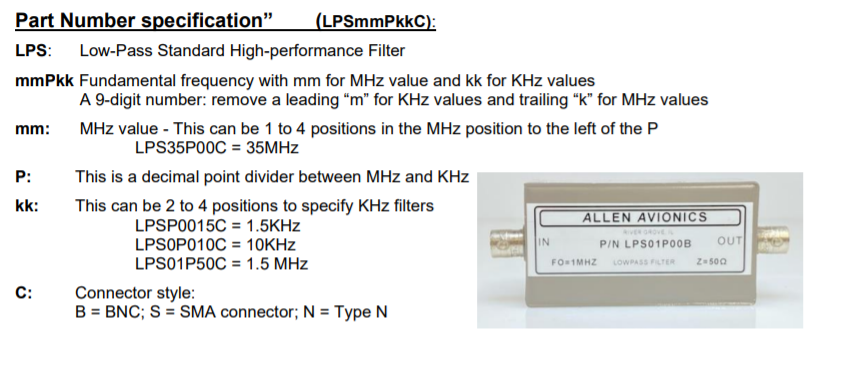

Allen Avionics LPS0P001B 1 KHZ 50 Ohms
Allen Avionics LPSP0015B 1.5 KHZ 50 Ohms
Allen Avionics LPS0P002B 2 KHZ 50 Ohms
Allen Avionics LPSP0024B 2.4 KHZ 50 Ohms
Allen Avionics LPS0P003B 3 KHZ 50 Ohms
Allen Avionics LPSP0036B 3.6 KHZ 50 Ohms
Allen Avionics LPSP0048B 4.8 KHZ 50 Ohms
Allen Avionics LPS0P005B 5 KHZ 50 Ohms
Allen Avionics LPS00P01B 10 KHZ 50 Ohms
Allen Avionics LPS00P02B 20 KHZ 50 Ohms
Allen Avionics LPS0P025B 25 KHZ 50 Ohms
Allen Avionics LPS00P10B 100 KHZ 50 Ohms
Allen Avionics LPS0P165B 165 KHZ 50 Ohms
Allen Avionics LPS00P20B 200 KHZ 50 Ohms
Allen Avionics LPS0P330B 330 KHZ 50 Ohms
Allen Avionics LPS00P50B 500 KHZ 50 Ohms
Allen Avionics LPS00P60B 600 KHZ 50 Ohms
Allen Avionics LPS01P00B 1 MHZ 50 Ohms
Allen Avionics LPS01P50B 1.5 MHZ 50 Ohms
Allen Avionics LPS02P00B 2.0 MHZ 50 Ohms
Allen Avionics LPS02P50B 2.5 MHZ 50 Ohms
Allen Avionics LPS03P00B 3.0 MHZ 50 Ohms
Allen Avionics LPS05P00B 5.0 MHZ 50 Ohms
Allen Avionics LPS10P00B 10.0 MHZ 50 Ohms
Allen Avionics LPS12P00B 12.0 MHZ 50 Ohms
Allen Avionics LPS15P00B 15.0 MHZ 50 Ohms
Allen Avionics LPS20P00B 20.0 MHZ 50 Ohms
Allen Avionics LPS30P00B 30.0 MHZ 50 Ohms
Allen Avionics LPS50P00B 50.0 MHZ 50 Ohms
Allen Avionics LPS70P00B 70.0 MHZ 50 Ohms
Allen Avionics LPS100P0B 100.0 MHZ 50 Ohms
Allen Avionics LPS200P0B 200.0 MHZ 50 Ohms
Allen Avionics LPS250P0B 250.0 MHZ 50 Ohms
Allen Avionics LPS500P0B 500.0 MHZ 50 Ohms
Allen Avionics LPS1000PB 1,000 MHZ 50 Ohms
