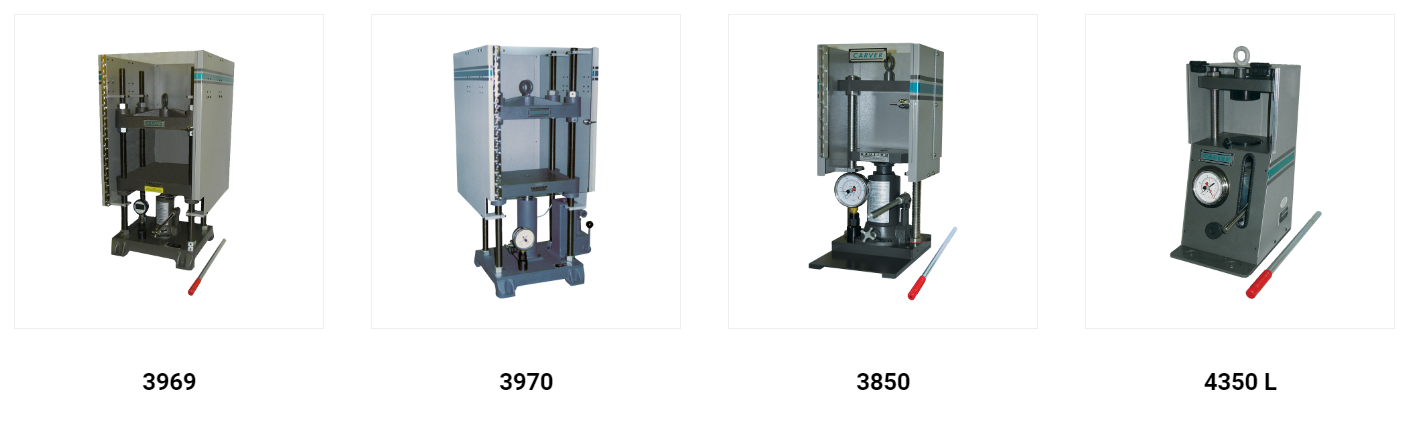

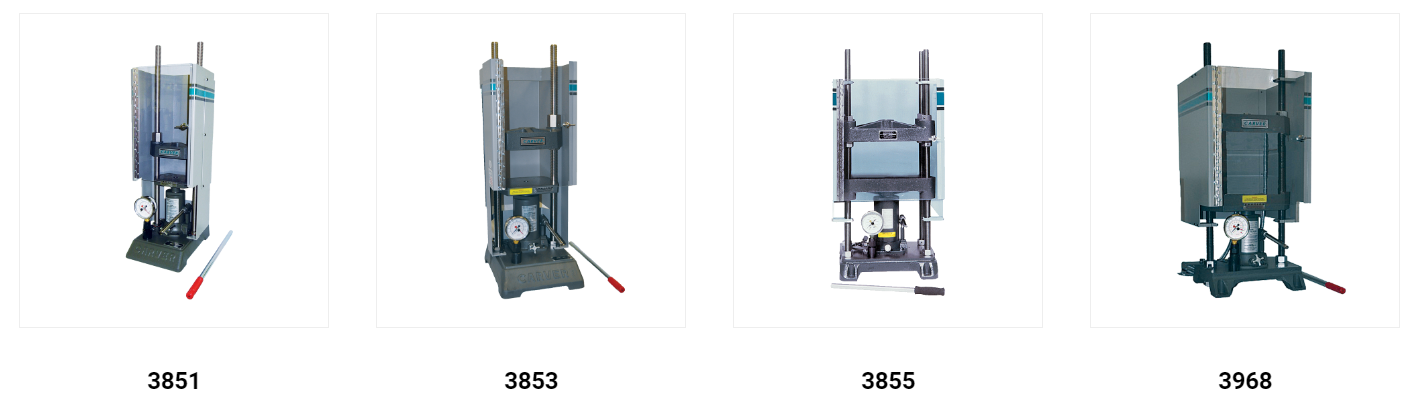

Carver實驗室標準非加熱臺式壓機、Carver 3851、Carver 3850、Carver 4350、Carver 3968、Carver 3969、Carver 3968、Carver 3853、Carver 3855、Carver 3970
Carver公司提供幾款12噸、25噸和30噸容量的標準非加熱手動臺式實驗室壓機。這些實驗室壓機可用于制備顆粒、松香和流體提取、壓力成型、破壞性測試及其他測試程序。
| Catalog Number w/Shield | 3850 | 4350.L | 3851 | 3968 | 3969 | 3853 | 3855 | 3970 |
| Model | Mini C | Pellet | Model C | 12-10 | 12-12 | Model M | 25-12 | 30-12 |
| Old Press Number | 3393 & 4332 | 3620 | 2086 | 3724 & 2624 | 2696 & 2626 | 2089 | 2702 | 2698 & 2628 |
| Clamping Force: Tons | 12 | 12 | 12 | 12 | 12 | 25 | 25 | 30 |
| Clamping Force: (lb) | 24,000 | 24,000 | 24,000 | 24,000 | 24,000 | 50,000 | 50,000 | 60,000 |
| Platens (in) | 6 x 6 | 4 round | 6 x 6 | 10 x 7 | 12 x 12 | 9 x 9 | 12 x 12 | 12 x12 |
| Ram Stroke (in) | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 6.5 | 6.5 | 6 |
| Daylight Opening (in) | 0.75 to 7 | 0 to 5.50 | 0.75 to 18 | 1 to 16 | 1 to 15 | 0.75 to 16 | 1 to 14 | 1 to 17 |
| Overall Size w x d (in) | 12 x 16 | 10.5 x 15 | 13 x 20 | 17 x 18 | 21 x 29 | 23 x 15 | 21 x 29 | 29 x 29 |
| Height (in) | 25 | 23 | 41 | 39 | 41 | 42 | 42 | 46 |
| Weight (lb) | 140 | 130 | 200 | 420 | 642 | 350 | 695 | 688 |
