HUNTINGTON STANDARD LINEAR FEEDTHROUGH 標準線性真空饋通 線性真空傳通件

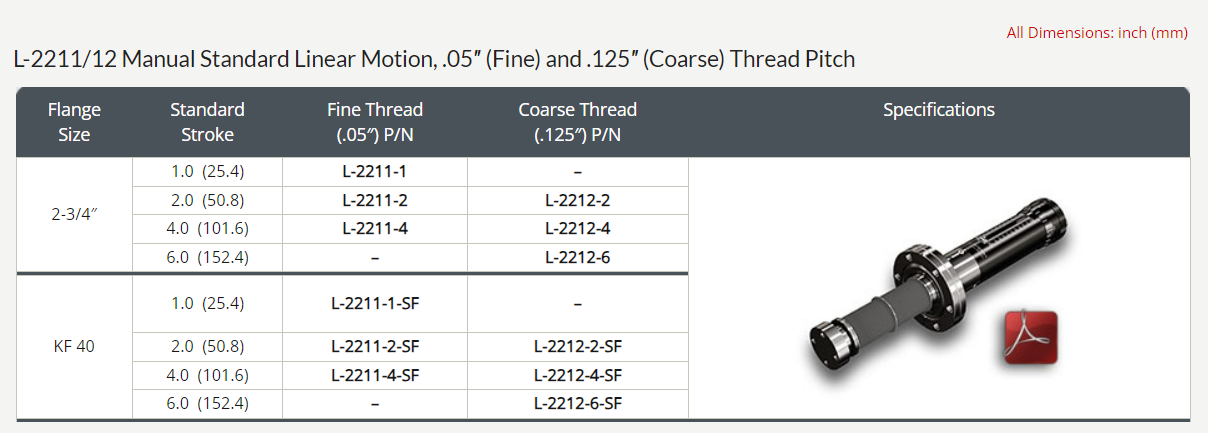

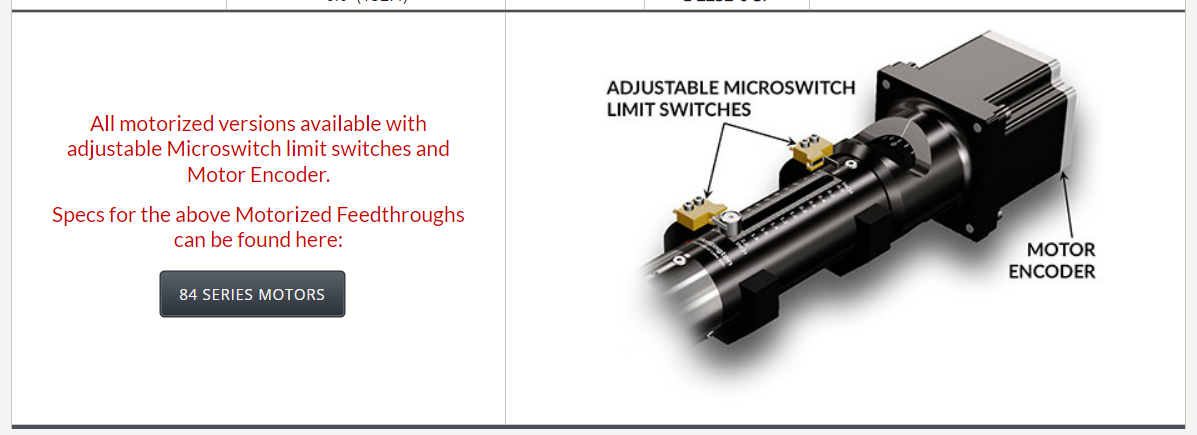

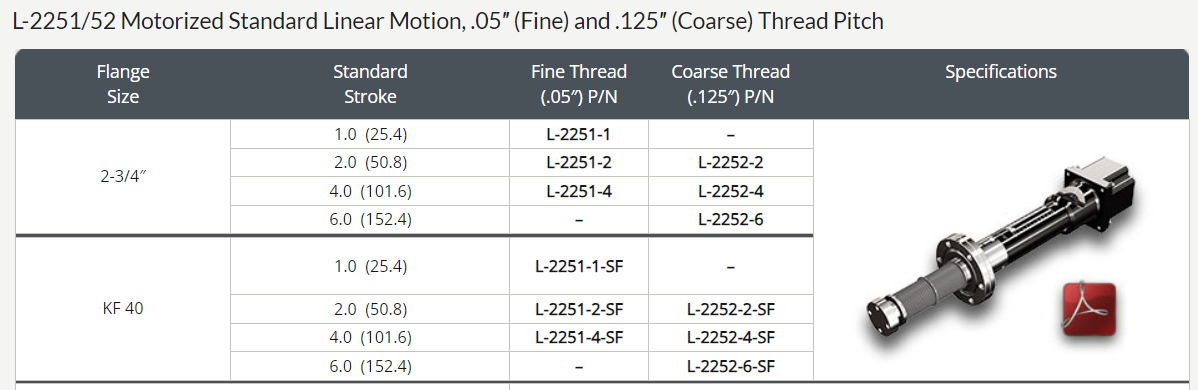

L-Series Standard Linear Motion Feedthroughs incorporate a unique modular design which accommodates three actuator options on two basic shaft/body configurations. Each combination of body and actuator is available in three standard stroke lengths with special lengths available upon request. The manually operated?L-2211 Series?feature a fine thread for more precision while the?L-2212 Series?feature a coarse thread for faster travel.?Motorized?L-2251 Series feedthroughs feature finer thread (.05″ pitch) while the L-2252 Series feature coarse (.125″ pitch) thread movement.

L系列標準線性運動饋通采用獨特的模塊化設計，可在兩種基本軸/機身配置上提供三種執行器選項。閥體和執行機構的每種組合都有三種標準行程長度，可根據要求提供特殊長度。手動操作的L-2211系列采用細螺紋以提高精度，而L-2212系列采用粗螺紋以加快行程。電動L-2251系列通孔具有較細的螺紋（.05〃螺距），而L-2252系列具有較粗的螺紋運動（.125〃螺距）。
