HUNTINGTON UHV & HV DUAL MOTION FEEDTHROUGHS 超高真空和高壓雙馬達真空饋通

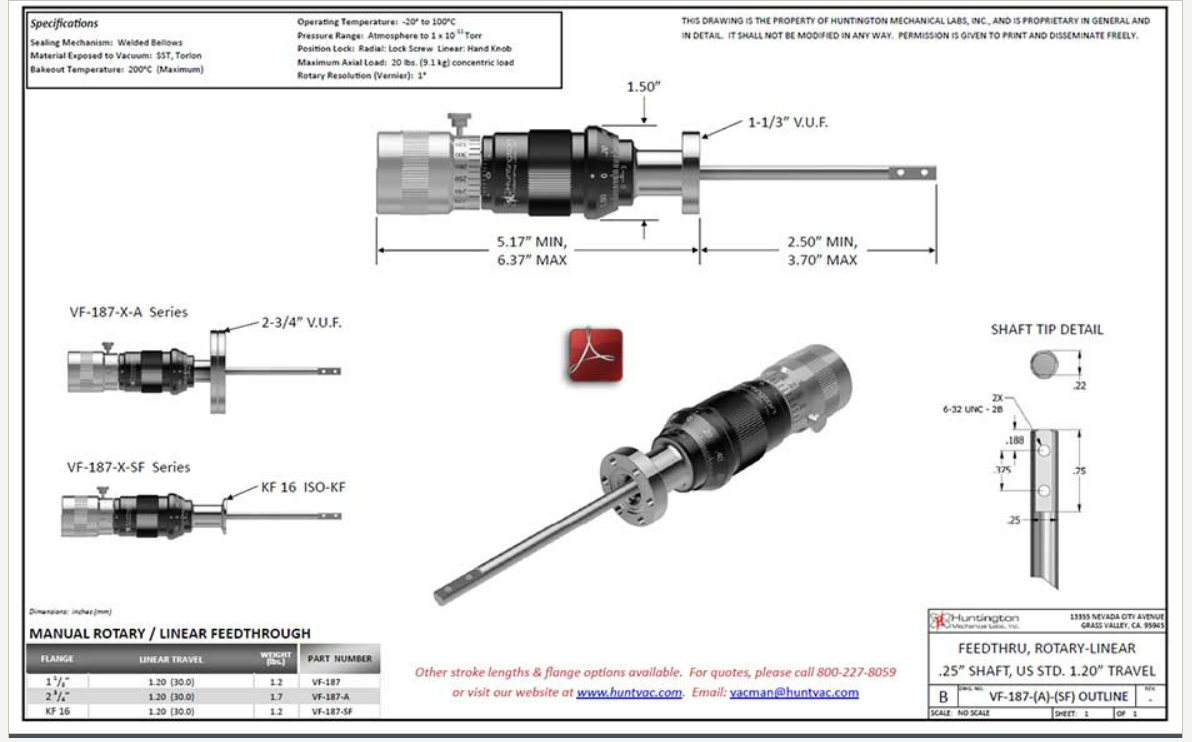

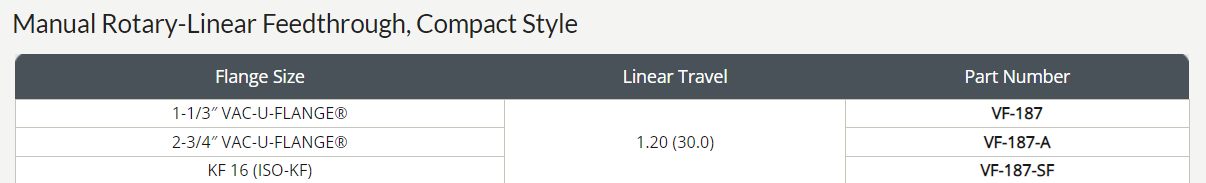

The patented design of the?VF-187 Series?provides the highest torque in the smallest envelope of any UHV-compatible rotary-linear feedthrough. The Vernier design provides excellent resolution in both the rotary and linear movements. Designed specifically for use in STM (Scanning Tunnel Microscopes), this versatile positioning device is suitable for a wide variety of applications while providing long life, high accuracy and smooth operation.

VF-187系列的專利設計在任何超高壓兼容旋轉線性饋通的最小包絡中提供最高扭矩。游標卡尺的設計在旋轉和線性運動中都提供了出色的分辨率。這種多功能定位設備專為STM（掃描隧道顯微鏡）設計，適用于各種應用，同時壽命長、精度高、操作平穩。
