HPM60 200 VAC Servo Motor
伺服電機
用于伺服應用的60毫米、200至750瓦可定制電機
- 釹鐵硼磁體
- 平穩、低齒槽運動
- 功率范圍:200到750瓦
- IP65防護等級
- 行業標準反饋
- 符合CE和RoHS標準
選型：
| ? ? ? ? ?MODEL | |||||
| PARAMETER | UNITS | HPM60-01-200-01 | HPM60-02A-200-01 | HPM60-03-200-01 | HPM60-04-200-01 |
| Rated Power | kW | .2 | .4 | .6 | .75 |
| Rated Voltage | V | 200 (AC) | |||
| Continous Stall Torque | ?Nm | 0.64 | 1.27 | 1.91 | 2.4 |
| Max Torque | ?Nm | 1.92 | 3.81 | 5.73 | 7.2 |
| Rated Speed/ Max.Speed | rpm | 3000/5000 | 3000/3600 | ||
| Rated Current | A(peak) | 1.5 | 3.0 | 2.6 | 3.7 |
| Max. Current | A(peak) | 4.5 | 9.0 | 7.8 | 11.1 |
| Back EMF Constant, Ke | V(peak)/Krpm | 43.84 (±10%) | 42.4 (±10%) | 77.8 (±10%) | |
| Torque Constant, Kt | Nm/A(peak) | 0.42 (±10%) | 0.405 (±10%) | 0.74 (±10%) | |
| Moment Of Inertia | x10-4?kg*m2 | 0.16 | 0.26 | 0.4 | 0.42 |
| Number of Poles | # | 8 | |||
| Mass | kg | 0.96 | 1.2 | 1.58 | 1.95 |
| Length | mm | 99 | 126 | 136 | 150 |
| Feedback Options | -01: Optical encoder (2500 line) | ||||
| Operating Environment | Temperature: 0 to 40° C; Humidity ≤95% RH, Non-condensing | ||||
| Storage Environment | Temperature: -20 to 65° C; Humidity ≤95% RH, Non-condensing | ||||
| Insulation Rating | Class F (155°C Winding Temperature) | ||||
| Protection Class | IP65 | ||||
| Duty Cycle | Continuous | ||||

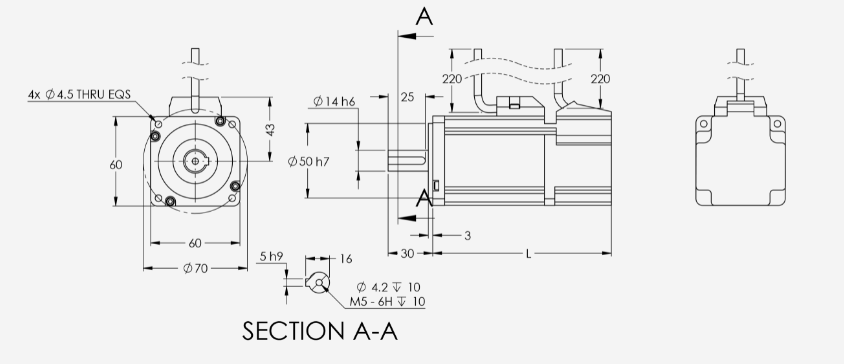

圖紙：
