PAVE 同軸RF密封 氣密同軸連接器

同軸RF密封 – 氣密同軸連接器，除非圖紙上另有說明，否則所有電氣屏蔽均為隔離或浮動，且具有端到端的電氣連續性。

PAVE的氣密同軸連接器RF密封是雙向的，可以雙向密封壓力或真空。對于超過300 psi（20 bar）的壓力，如果改變圖紙上顯示的壓力方向，請與銷售工程師聯系。

無論是低壓還是高壓，從1 bar到1000 bar，以及從低真空到10^-8 Torr的高真空，PAVE幾乎可以提供無限選擇的氣密同軸電氣針連接器類型或屏蔽RF同軸電纜密封，溫度范圍從低溫-200℃到200℃，具體取決于設計和客戶的實際操作和測試要求。PAVE的氣密環氧密封取代了氣密玻璃-金屬連接器密封，提供了更多的電氣連接器設計選項。在大多數情況下，如果需要，現有設計圖紙也可以適應更高的壓力、更低的泄漏率和更廣的溫度范圍。

氣密同軸連接器包括BNC 50歐姆和75歐姆，SMA低頻和高頻（+2-100 GHz使用需要特殊設計），SHV，SMB，SMC，N，雙軸等，既有雙面連接器也有單面樣式。大多數氣密同軸連接器屏蔽都是隔離或浮動的，也可以訂購接地的。此外，還提供氣密多針圓形連接器和氣密密封的矩形組合D-Sub連接器設計。

幾乎任何類型的氣密同軸連接器或屏蔽電纜都可以以幾乎任何組合和電線長度進行氣密密封。隔板的多種氣密貫通安裝樣式可供選擇，包括卡口螺母O形圈、NPT、活塞O形圈、Conflat?法蘭等，甚至包括定制工程設計。通過或繞過電纜沒有可檢測到的氣體或液體泄漏。我們隨時可以協助選擇合適的具有成本效益的氣密密封設計。

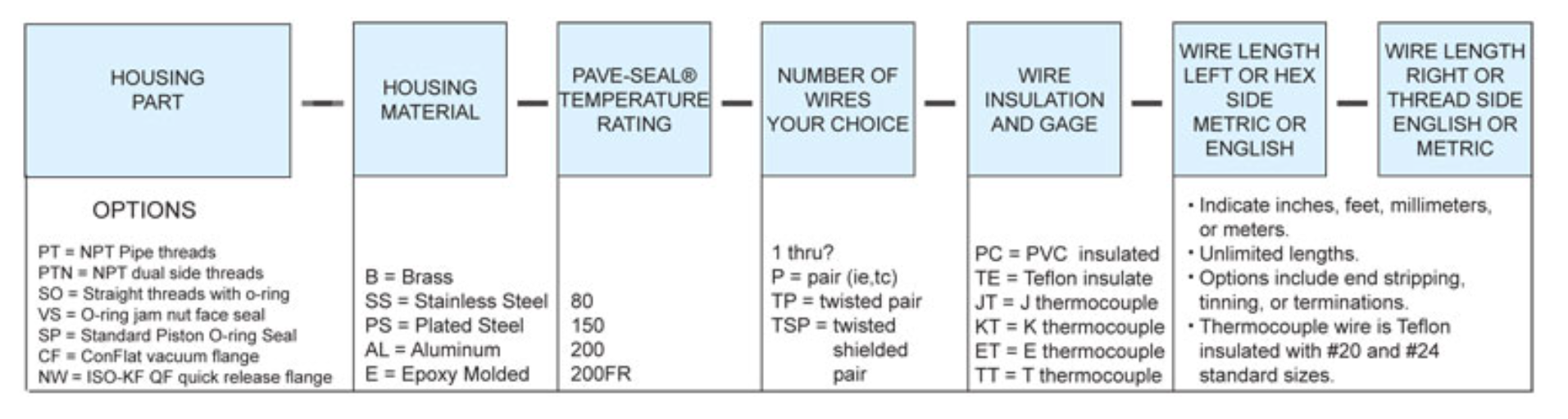

安裝接口雙邊，單邊總線PAVE 描述代碼, 外殼 &?線纜線纜 1AWG #線纜 2AWG #圖紙號碼 #
?” o-ring piston sealcable sealRG 178SP6H-E-150-1-RG178-18-18 25k psi1RG 1784792
3/8″ piston o-ringhermetic cable seal1SP6H-E-150-1-RG316-18-181RG 3165752
1″ o-ring face sealDual In-Stock1VS15L-SS-150-1-BNC-BNC isolated shield0261
?” NPTdual1PT8-SS-150-1-BNC-BNC11532
?” NPTdual1PT8-SS-150-BNC-BNC (XL)12095
?” NPT threadsdual or single1PT8-BNP-150-1-BNC-BNC 75 OHM175 ohm184424
1” o-ring face sealdual side connect1VS15L-SS-150-BNC-BNC14054
1″ o-ring face sealdual1VS15L-SS-150HV-1-BNC-BNC GROUNDED SHIELD1BNC5302
?” o-ring face sealconnector1VS8-SS-150-1-BNC-PIN1probe4523
?” o-ring face sealdual in-stock1VS8-SS-150-SMA-SMA?isolated shield See Quick Ship List11162
?” 2x o-ring face sealdual connect1VS8x2OR-SS-150-1- SMA- SMA13817
? o-ring face sealdual1VS8L-SS-150-1-SMA-SMA long threads 2 Ghz max isolated1245774
? o-ring face sealdual capacitance seal1VS8-SS-150-1-SMA-SMA 26 GHz 100% shielding isolated1204708
1″ o-ring face sealPAVE-Mate? II2VS15L-SS-150-2-2.92-2.92 40GHz SMK 2.92mm2coaxial5240
3/4″ o-ring face sealPAVE-Mate? II1VS12L-SS-150-1-65GHZCOAX-F-30F SMK 1.85mm12coaxial5251
? o-ring face sealcable1VS12L-SS-150-1-100GHZCOAX-2.5F-20F SMK 1.0mm1100 GHz4765
? o-ring face sealcable1VS12L-SS-150-1-100 GHZ COAX-2.5-20 1mm SMK SMA1100 GHz4567
3/4″ o-ring face sealsingle2VS12L-SS-150-2-100GHZCOAX-F-24F 1.0mm21.0mm5230
KF25 NW25 QF25 DN25 flangedual1NW25-SS-150-1-2.92mm-2.92mm Ka-Band SMA 2.9mm SMK 40 GHz1224527
1/16″ NPTCable Seal 600 bar2PT1-SS-2-RG178-1-1M2rg1783473
1″ NPTdual UHF coax1PT16-SS-150-1-UHF-UHF11768
?” NPTsingle side disconnect1PT4-SS-150-SMA-RG196-60mm LOW TEMP1rg1964023
?” NPTsingle side connect1PT4-SS-150-SMA-RG196-50mm12410
1″ NPTdual side connect1PT8-SS-150-TNC-TNC12172
?” SAE threadsingle1SO8S-SS-200-1-TE26-SMB-61PTFE264830
?” SAEdual side connect1SO8-SS-150-SMA-SMA (grounded)11646
1/2″ o-ring straight threadcable seal2 shieldedSO8-SS-150-1-TPS28100RF-3T-7T twinax Samtec2twinaxial285730
?” SAEdual side connect1SO8S-SS-150-1-TWINAXE20-60-61330
?” o-ring piston sealcable9SP8/100-E-150-8/1-PC24/RG178-16-168241RG 1754582
?” piston o-ringattenna seal1SP8A-E-150-1-STORM421710-POST-35 SMA1sma cable3748
1/2″ o-ring piston sealRG178 cable1SP8L-E-150-1-RG178-45-301RG1785126
?” piston o-ringhermetic cable seal1SPF12-E-150-1-RG142/RG316-6-181rg142/3162808
?” o-ring face sealdual side connect2VS12-SS-150-1-TWINAX/Triax2201155
1;” p-ring face sealdual2VS15L-SS-150-1-TWINAX-TWINAXtwinax4948
1 ?” o-ring face seal jam nutdual side connect2VS18-SS-150-2-TWINAX-TWINAX205335
?” piston o-ringsingle side connect2SPF12L-B-80-2-TE20-TWINAX/Triax-22202220
1″ o-ring face sealcable seal2VS15L-SS-150-1-TWINAX24-264-72 100 ohm twinax2264894
7/16″-28 o-ring sealsingle side connect2SP5.5-E-150-2-TE20-TWINAX-122202664
17.37mm piston o-ringcable seal3SP11L-E-150-2/1-PC24/RG405/U-12-382PVC24RG 4054330
?” o-ring face sealcable seal7VS12-SS-150-1/6-RG316/TE26-24-241RG 3166265661
?” o-ring face sealdual side connect1VS12-AL-150-F-F12577
?” o-ring face sealsingle side connect1VS12L-SS-150-1-BNC-SC11861
1″ o-ring face sealdual side connect1VS15L-SS-150-BNC, 75 OHMs175 ohms2800
1″ o-ring face sealdual side connect1VS15L-SS-150-MHV-MHV12954
1″ o-ring face sealdual side connect1VS15L-SS-150-1-MHV-MHV GROUNDED SHIELD1MHV5303
1″ o-ring face sealdual side connect1VS15L-SS-200-TNC11527
1″ o-ring face sealdual1VS15L-SS-150HV-1-BNC-BNC1182964
1?” o-ring face sealdual side connect1VS18-SS-150-BNC-BNC11750
1″ o-ring face sealdual sided1VS18-SS-150-SHV-SHV?isolated shield See Quick Ship List11518
1?” o-ring face sealdual side connect1VS18-SS-200-N-N11526
?” o-ring face sealdual side connect1VS8-SS-150-SMA-SMA11162-1
NW40 KF40dual8NW40-SS-150-4-BNC-BNC8singleSMA5149
?” o-ring face sealsingle1VS4N-SS-150-1-22-RPSMA-2 reverse polarity SMA1singleSMA4546
?” o-ring face sealhermetic cable seal1VS8-SS-80-1-RG179-96-48 75 ohm11557
?” o-ring face sealdual side connect1VS8-SS-150-1-SMC MICRODOT13349
?” o-ring face sealdual side connect1VS8-SS-150-1-SMB12144
13mm o-ring face sealsingle side connect1VSBNC-SS-200-1-CRTFE18-BNC-131182628
custom flange sealsingle side connect2CONNECTOR FUEL GAGE NSN 5935-00-673-8388 57F908572-3 Blackhawkcopter20075
?” NPThermetic cable seal1PTN8-SS-150-1-RG62U-48-6 93 ohm1rg623271
?” SAEhermetic cable seal2SO12L-SS-80-2-RG316-10-3021504
1.25″ o-ring face sealconnector4VS18-SS-150-2-TWINAX-TWINAXdual twinax5490
1″ NPTcable sealsPT16-SS-200-3-RG59-18T-18TRG595476
1?” o-ring face sealdual side connect3VS22-SS-150-3-BNC-BNC3BNC4319
1?” o-ring face sealdual side connect3VS22-SS-150-2/1-BNC/MHV-BNC/MHV31699
?” piston o-ringcable seal3SPF8-E-150-3-MICROCOAX-11-143micro coax3722
1″ o-ring facecable seal3VS15-SS-150-3-RG178-24-243RG 1785736
1″ o-ring facecable seal3VS15-AL-150-1/2/1-RG174/RG58-72-18RG1745483
1″ o-ring facecable seal3VS15L-SS-150-3-USB-96 USB A-48 USB B3USB A to B3819
?lsingle3VS22-SS-150-3-J3 COAX-BNC-425BNCJ3 coax Wilcoxon4377
M24 o-ring face seallow noise cables3VSM24XL-SS-150-3-AC0005-433-395100
NW40 flangedual4NW40-SS-150-4-TWINAX-TWINAX4twinax4803
1″ o-ring sealcable seal4VS15L-SS-150-1- ESATA-16M-18M EsataE-SATA4018
1″ piston o-ringscable seal7SP16-E-200-5/2-RG316/PVF20-1-2m4088
1″ piston o-ring sealcoax cables4SP16-E-150-4-0024A0311-7-78coax3650
1″ o-ring face sealdual2VS15L-SS-150-1-RCA-RCA2RCA5158
1″ o-ring face sealcable5VS15-AL-150-1/2/2-RG174/RG58/KE30-72-291 RG174 2 RG58 2 Type E TC pairs5482
3/4″ mNPTcable4PT12-SS-150-4-RG316-144-1444RG 3165267
17,37mm piston o-ringcable1SP11L-E-150-1-RG316-60-245RG 3165211
1-1/16″ SAEsingle side connect5SO16L-SS-80-3/2-RG316/18HV51306
1″ o-ring face sealhermetic cable seal5VS15L-SS-150-3-RG58-6T-6T52435
1?” o-ring face sealhermetic cable seal5VS18-SS-150-5-RG58-6T-6T51774
M24 metric threadcable seal6VSM24XL-SS-150-6-AC0005-433-39 low noise6Low Noise5127
1?” o-ring face sealhermetic cable seal5VS18-SS-150-5-RG59-6T-72T 75 ohm52505
1″ piston o-ringcable seal6 + 2 gas linesSP16-E-150-6/2-RG174/.125SS-186rg1743860
1?” o-ring face sealhermetic cable seal6VS18-SS-150-5/1-RG316/REYNOLDS HV-36-36rg31618kv263509
1?” o-ring face sealhermetic cable seal6VS18-SS-150-5/1-RG174/1788022-5rg1741hv2963
1?” o-ring face sealhermetic cable seal6VS18-SS-150-6-RG178-48-4862393
1?” o-ring face sealhermetic cable seal6VS18-SS-150-6-RG316-180-40FE6PA61540
1?” o-ring face sealhermetic cable seal7VS18-SS-150-7-RG174+C-12-12071461
1/2″ piston -ring sealcable seal1SP8A-E-150-1-STORM421710-POST-12 SMA1COAX5386
Flange o-ring face sealPCB antenna12SPF14X-T-150-3/9-RG178/24 printed circuit board antenna3RG1789265277
NW40 KF40dual side connector7NW40-SS-150-7-SMA-SMA5686
custom flange sealdual side connect8FL54/18-AL-150-8-RG178 or 196-DSUB-DSUB combo dsub hermetic8coax3205
?” piston o-ringPVC/PTFE9SP8/100-E-150-8/1-PC24/RG178-16-168241rg 1784582
1-1/16″ SAEhp8SP16-E-200-8-RG178-1-2M8rg1783530
8 coax+2 #26SP16S-E-150-8/2-RG178/E26-39-38RG1752624942
25.3mm piston o-ring sealhermetic cable seal8SP16-E-80-2/1/5-RG178/RG179/TE28?50 ohm 75 ohm81574
1-?” o-ring face sealcable seal8VS18-SS-150-7/1-RG174/REYNOLDS2896-85FT-10FT7RG1741HV4333
2?” conflat flangeServo stepper cables9 plus shieldsCF275-SS-150-1/1-CBLPW/CBLFB-125T-229T4145204756
M24 metric threadcable seal9VSM24XL-SS-150-9-AC0005-433-39 low noise9Low Noise5128
1?” conflat flangecable seal9VS22-SS-150-3/6- TWINAX /COAX-60-603twinax6rg1784172
2?” conflat flangehermetic cable seal10CF275-SS-150-10-HVC-36-36101470
2?” conflat flangecable10CF275-SS-150-10-RG188DS-48-4810rg 188RG 188DS4583
2?” conflat flangehermetic cable seal10CF275-SS-150-10-RG178-36-36101471
NW40 flangecable10NW40/VS18-SS-150-10-RG174-84BNC-12SMB10rg 1745281
1?” o-ring face sealhermetic cable seal10VS18-SS-150-10-RG178-36-3610rg1782915
1?” o-ring face sealhermetic cable seal10VS18-SS-150-10-RG58/U-8-12102537
1?” o-ring face sealcable10VS18-SS-150-10-RG174-72-7210RG1744520
1 1/2″ o-ring face sealsingle11D38999/24-AL-150-11-5024A1311-308Cheminax5224
1?” o-ring face sealhermetic cable seal11VS22-SS-150-11-RG178-60-60111389
2?” piston o-ringhermetic cable seal11SPF12-E-150-4/5/1/1-TEE24/26/RG179/ USB-120-30cm 75 ohm924-26USBrg1793833
1.25″ o-ring face sealcable16VS18-SS-150-11/5-CCSC/K34-20-91cm11 ultra coax FEP cables#325#34 Kapton5543
1?” o-ring face-sealcable12VS22-304SS-150-12-J3-4T-30012J3 coax4517
1-1/5″ o-ring face-sealcable seal14VS22-304SS-150-12-RG316-4T-165T12RG3164358
1?” o-ring face sealcable seal splice12VS26-SS-150-12-RG316/RG58-4T-115T1212RG584684
M24 o-ring face seallow noise cables12VSM24XL-SS-150-12-AC0005-433-395099
2?” conflat flangehermetic cable seal13CF275-SS-150-13-R24A0024-30-30131416
2?” o-ring face sealhermetic cable seal13VS32L-AL-150-13-RG59U-480-480130681
1-?” o-ring face sealcable seal16VS22-SS-150-15/1-RG178/REYNOLD15RG1741HV4334
1?” piston o-ringcustom hermetic connector17SP20-E-150-16/1-COAX/TE24-#22P-18161coax2948
?” o-ring face sealsubmersible + hermetic cable seal16VS10-ss-150-15241coax1456
D38999/23Ysingle side connect16D38999/23Y*-E-150-6/10-RG179/TZ24-P247PS1 75 ohm16202635
2.75″ o-ring face sealhermetic connector16VS44-SS-150-4-RCN900724-76T-66T twinax quadraxTwinax cables Quadrax connectorquadraxtwinaxtwinax5582
1?” o-ring face sealdual sided16VS22-SS-150-4-9- QUADRAX PS quadrax twinax 100 ohm4quadrax#94874
1?” o-ring face sealdual sided16VS22-SS-150-4-QUADRAX-PIN-PIN quadrax twinax 100 ohmethernet4rugged d-sub100 ohms4886
1?” o-ring face sealsingle side connect16VS22-SS-150-16-RG316-240-40FG116rg3163199
1?” o-ring face sealsingle side connect16VS26-SS-150-16C-RG179-240-40FG 75 ohmrg1792887
1″ NPT with DSUBPTFE17PT16-B-150-1-AXO PATCH200B-70-4817243618
1?” o-ring face sealcoaxial cable seal18VS26-SS-150-18-RG316/RG58-4T-115T18RG316 RG 584703
1 1/4″ mNPT nipplecable seal19PTN20-SS-150-19-RG174-35T-35T MICRODOT19RG 1745755
1?” o-ring face sealcable twinax 100 ohm20 shieldedVS22-304SS-150-10-SP28-96-96 100 ohm twinax20twinax284725
1?” o-ring face sealcable twinax 100 ohm20 shieldedVS22-SS-150-10-TWINAX30-96-9620twinax 100 ohm4776
1?” o-ring face sealsingle side connect20VS22-SS-150-20-RG178-60-60202529
M36 o-ring face seallow noise cables18VSM36XL-SS-150-18-AC0005-433-395098
NW40 flangehermetic cable seal29VS26-SS-150-29-RG179-144-QDB 75 ohm290880
2?” o-ring face sealsingle side connect29VS32-SS-150-29-CX-3899940RN29COAX3254
2?” o-ring face sealhermetic cable seal30VS32-SS-150-30-RG316-2-2m302482
70mm flangesingle32D38999/20-SS-150-32-RG178-5.3-20278102R1832rg1784470
flange mountsingle32D38999/20-SS-150-32-RG178-5.5-20278102R1832rg1784436
1 7/8″ o-ring face sealhermetic cable seal32VS26-SS-150-32-RG178-42T-42T SMB32rg1785219
1?” o-ring face sealcable seal36VS26-SS-150-4/32-TZ20/TWINAX-3.5M-3.5M42032Twinaxial4383
1?” o-ring face sealcable37VS26-SS-150-37-MPA08-22T-48T1rg 1783939
NW40 flangehermetic cable seal38NW40-SS-150-38-MICTOR-73-24382751
1.25″ piston o-ring sealdata bus cable ETFE38SP20-E-200-19-TSP22-0.5M-0.5M Cheminax 105992270 ohm5112
1?” o-ring face sealhermetic PTFE40VS22-SS-200-20-TSP20-168-72 twisted pair40204366
1?” o-ring face sealhermetic cable seal40VS26-SS-150-40-RG178-24-24402561
2?” o-ring face sealcable40VS32-SS-150-40-TE12S-10-10m40shielded #12124403
NW50 KF50cable seal low vac84NW50-SS-150-72/12-TWINAX/COAX-37T-21.7T72TWINAX12Coax5374
1?” o-ring face sealhermetic cable seal72VS22-SS-150-36TSP-100 OHM TWINAX-5M-5M72TWINAX2791
