氣密引腳頭密封電氣貫穿件，PAVE的氣密密封是雙向的，可以在任意方向或兩者方向上密封壓力和真空。對于超過300 psi（20 bar）的壓力，如果改變圖紙上顯示的壓力方向，請與銷售工程師聯系。
氣密引腳頭電氣密封具有單側或雙側的多個小線規銅合金引腳，用于低壓或高壓和真空的電信號傳輸，溫度范圍為-200℃至200℃。O形圈密封或電子束焊或激光焊氣密貫穿設計，氦氣泄漏率低至10^-9cc/sec。不銹鋼、鋁、鈦及其他金屬的氣密引腳頭外殼均可提供。請參閱下方列出的當前電氣氣密貫穿設計圖紙，也可根據要求提供新的定制設計。

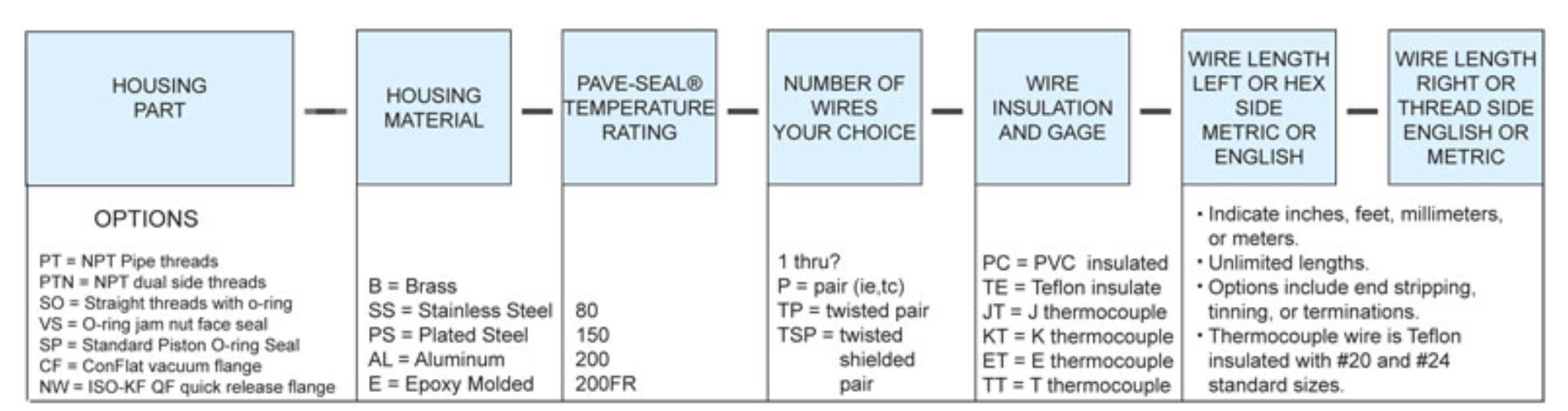

| Installation Port | Seal | Total Wires/Pins | PAVE Description Codes, Housing & Wires | AWG # | DRAWING # |
|---|---|---|---|---|---|
| 1/16″ NPT | hermetic header | 1 | PT1-SS-80-1-#12/TE18-.3-24 | 18 | 2096 |
| ?” NPT | hermetic header | 1 | PT4-B-200-1-20-SC-SC | 20 | 3550 |
| 5,08mm laser weld | hermetic header | 2 | LWT4-IN-200-2-18-0-.4 laser weld | 18 | 3741 |
| ?” SAE o-ring | hermetic header | 1 | SO6-SS-150-1-(2-56F)-SC | 20 | 4657 |
| ?” NPT | hermetic header | 2 | PT2-B-80-2-TEE24-SC-6 | 24 | 1438 |
| ?” SAE | hermetic header | 2 | SO8-SS-150-2-TE20-10-SC | 20 | 3133 |
| 7.82mm piston o-ring | piston o-ring | 2 | SP5X-E-200-2-18-.2-.2> | 18 | 4732 |
| 7.82mm piston o-ring | solder cups | 2 | SP5X-E-200-2-26-SC-SC | 26 | 4460 |
| ?” piston o-ring | hermetic header | 2 | SP6-E-200-2-24-T | 24 | 1847 |
| ?” piston o-ring | hermetic header | 2 | SP8H-E-200-2-20-SC-SC | 20 | 3327 |
| ?” piston o-ring | header solder cups | 5 | SP8S-E-150-3/2-TZ18/26-12-SC | 3 #18, 2 #26 | 4716 |
| ?” piston o-ring | hermetic header | 2 | SP8S-E-150-2-TE22-18-3PINS(MOLEX) | 18 | 2384 |
| ?” piston o-ring | piston o-ring seal | 2 | SPF12-E-150-2-.032SS-.6-.5 | #26 | 5720 |
| ?” piston o-ring | hermetic header | 2 | SPF12-E-150-2S-TEE8-1.5M-LUG | 22 | 3128 |
| ?” SAE | hermetic header | 3 | SO8-SS-150-3-PC24-12T-SC | 24 | 2066 |
| ?” piston o-ring | hermetic header | 3 | SP6X-E-150-3-ET26-SC-48 | 26 | 5057 |
| ?” SAE | hermetic header | 4 | PT6-SS-80-4-TE26-8-SC | 26 | 0953 |
| 16,26mm sq flange | piston o-ring | 4 | SPF8.8-AL-150-4-TE24-9.5-SC | 24 | 5090 |
| ?” piston o-ring | hermetic header | 5 | SP8S-E-150-3/2-TZ18/26-12-SC | 3 #18, 2 #26 | 5358 |
| ?” piston o-ring | hermetic header | 5 | SP8S-E-150-5-TZ22-80-SC | 22 | 2208 |
| 11,13mm piston o-ring | hermetic header | 5 | SP7-E-200-5-22-PIN-PIN | 22 | 4389 |
| ?” piston o-ring | passthrough | 5 | SPF12-E-200-3/2-16/22-SC-SC | 16 & 22 | 4723 |
| Custom 2″ flange | hermetic header | 6 | FL-AL-150-6-TE18-PIN-12 | 18 | 3139 |
| ?” SAE Thread | hermetic header | 6 | SO12-SS-150-6-TEE18-8-SC | 18 | 3630 |
| ?” SAE o-ring thread | hermetic header | 6 | SO12-SS-150-6-TEE22-8-SC | 22 | 4968 |
| 0.5550″ piston o-ring | hermetic header | 6 | SPF9-E-80-6-20-SC-SC | 20 | 1990 |
| ?” o-ring face seal | wires & PCB pins | 6 | VS12-SS-150-6-TE24-4-PCB | 24 | 4801 |
| ?” piston o-ring | hermetic header | 8 | SPF12XS-E-200-8-22-PIN-PIN | 22 | 3679 |
| ?” piston o-ring | hermetic header | 9 | SP8M-E-150-9-22-SC-sc REV JOI-9 SOC! | 22 | 0207 |
| ?” piston o-ring | hermetic header | 9 | SP8M-E-150-9-20-SC-SC | 18 | 4538 |
| ?” piston o-ring | PTFE | 9 | SP8L-E-150-9-22-SC-SC | 20 | 2713 |
| 31.55mm piston o-ring | hermetic header | 10 | SP20XS-AL-80-2/8-10/16-PIN-PIN | 2#10 and 8 #16 | 5438 |
| 3/4″ | piston o-ring | 12 | SPF12-E-200-12-22-SC-SC | 22 | 1962 |
