PAVE 氣密熱電偶貫穿件 真空貫通連接器

氣密熱電偶貫穿件 – 真空貫通連接器，PAVE熱電偶氣密貫穿件和雙向密封可以在任意方向或兩者方向上密封壓力和真空。對于超過300 psi（20 bar）的壓力，如果改變圖紙上顯示的壓力方向，請與銷售工程師聯系。

熱電偶貫穿氣密密封適用于低或高真空和任何類型的固體導體特氟龍?或玻璃編織絕緣熱電偶線對的壓力，氣密密封溫度范圍為-200℃至200℃，具體取決于設計或客戶要求。所有類型的熱電偶氣密貫穿電纜均可氣密密封，包括K、T、J、E、N、RxSx，以及任何組合或電纜長度的屏蔽電纜。熱電偶電纜導體通過氣密密封保持連續，從而實現最高的溫度準確性。也可訂購焊接線連接。多針氣密連接器版本也可提供。無論是小批量還是大批量，均可提供標準和定制設計的氣密密封設計，具有多種安裝樣式和成本效益設計，包括O形圈面密封或活塞密封、NPT密封。

無論是小批量還是大批量，均可提供標準和定制設計的熱電偶氣密貫穿密封設計，具有多種安裝樣式和成本效益設計，包括O形圈面密封或活塞密封、NPT密封、Conflat?、ISO和定制法蘭，包括電子束或激光焊接。我們的氣密環氧電纜密封對溶劑、燃料、液體和氣體具有高度耐受性。

此外，我們的環氧氣密密封已通過NASA認證，可在高真空（高達10^-8 Torr）中實現低放氣。

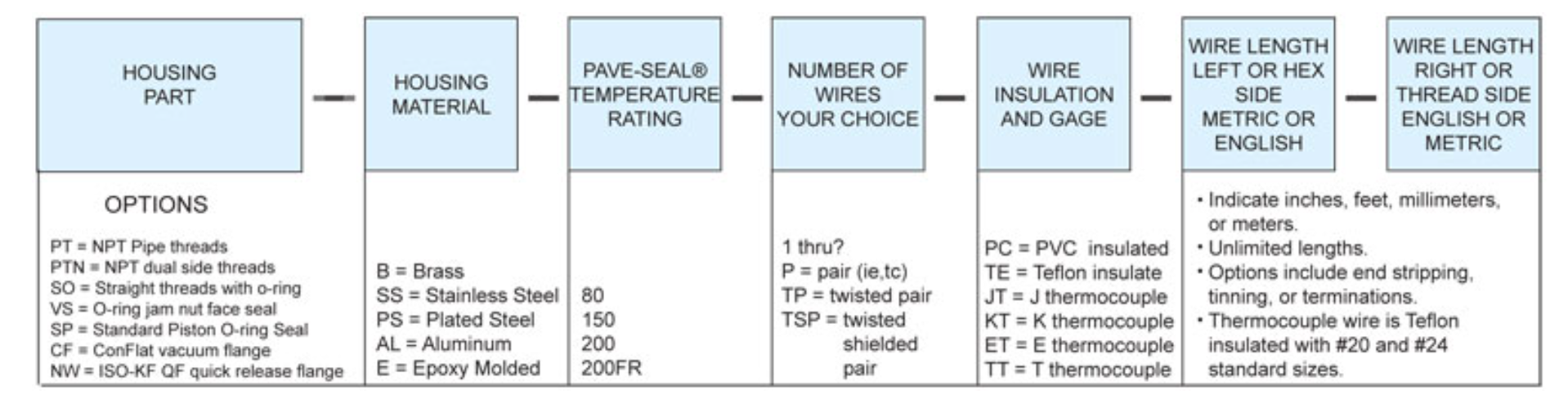

安裝接口熱電偶類型總線數PAVE 描述代碼, 外殼 &?線纜AWG #圖紙 #
1″ o-ring face sealType E FEP18VS15L-SS-150-9P-ET20-48-48,Type E FEP201602
1″ o-ring face sealType J FEP18VS15L-SS-150-9P-JT20-48-48, Type J FEP?See Quick Ship List201664
1″ o-ring face sealType K FEP18VS15L-SS-150-9P-KT20-48-48, Type K FEP?See Quick Ship List201601
1″ o-ring face sealType T FEP18VS15L-SS-150-9P-TT20-48-48, Type T FEP?See Quick Ship List201650
1/16″ NPTType J FEP2PT1-SS-150-1P-JT24-50-50mm242409
?” NPTType K FEP2PT2-B-80-1P-KT30-55T-4303782
1/16″ NPTType K FEP2PT1-SS-150-1P-KT24-10M-6M244080
?” NPTType K FEP2PT2-B-200-1P-KT30-26.5-13.5304179
?” NPTType K FEP2PT2-SS-150-1P-K30-120C-4W302154
?” NPTRxSx2PT4-SS-200-1P-RT30-6-42304733
?” NPTType T FEP #30 AWG with calibrated welded tip bead2PT2-B-80-1P-TT30-67T-72304718
? NPTType T FEP2PT4-B-200-1P-TT20-96-24203462
3/8″-24 SAE threadTThermistor2SO6SW-AL-150-2-18-DELPHI-THERMISTOR HVAC183851
6.27mm piston o-ringType K FEP2SP4S-E-150-1P-TT36-71-BEAD4098
?”piston o-ringType K FEP2SP6-E-150-1P-KT24-36-36241606
o-ring face sealType K #304SP6H-E-200UL94-2P-KT30-12-118 10k psi305634
?” piston o-ring sealPTFE6SP6-E-150-4/1P-TE28/TT30-9-9204086
?” piston o-ringType K PFA insulated2SPF12-E-150-1p-KT20-48-11T204957
?” o-ring face sealType Bx FEP2VS8-SS-150-1P-BX20-180-36201621
?” o-ring face sealType Sx FEP2VS8-SS-150-1P-SX20-180-36202035
?” o-ring face sealType Kx Kapton2VS8-SS-150-1P-KK20-12-100204816
NW16 flangeType J FEP3NW16-SS-200-3P-JT20-104-4202622
?” NPTType E FEP4PT4-SS-150-2P-ET20-48-48203687
?” NPTType T FEP4PT4-B-150-2P-TT24-16-16242136
?” NPTType K FEP4PT6-SS-150-2P-KT24-6-.2243378
5/16-24 UNEF-2AType K FEP insulated4SO5-AL-150-2P-KT30-12-12BEAD305181
7/16″ SAE threadType K4SO7L-SS-150-2P-KT24-3122P-48 Type K204004
?” SAEType J FEP4SO8X1688-AL-150-1/2-JT20/E16-3-3161648
?” piston o-ringRsSx4 shieldedSP12-E-150-2P-RTS20-120-120201808
1″ o-ring face sealType J FEP insulated4VS15L-SS-200UL94-2P-JT20-210-48205677
1″ o-ring face sealType Bx FEP4VS15L-SS-150-2P-BX20-360-120201963
?” o-ring face sealType K FEP4VS8-SS-150-2P-KT24-72-18242470
?” o-ring face sealType T FEP4VS8-SS-150-2P-TT24-30-30241997
NW16 KF16 flangeType J FEP6NW16-SS-150-3P-JT20-72-36205395
?”NPTType J FEP6PT4-SS-150-3P-JT24-36-36241559
? NPTType T FEP6PT4-B-150-3P-TT24-16-16243716
?”NPTType E6PTN12-SS-150-2P-ETS20-24-480204745
1″ NPT nippleType K shielded6PTN16-SS-150-3-KT20TWSH-72-180 shielded204476
? piston o-ringType K & J7SP8M-E-150-1P/1P/3-KT20/JT20/TEE24-12-12243706
2.75″ Conflat flangeType K FEP8CF275/PT12-SS-150-4P-KT20-99920P-360#205221
NW 40 KF20 flangeType K FEP #308NW40-SS-150-4P-KT30-5T-26 welded BEAD305675
?” NPTType K FEP8PT6-SS-80-4P-KT24-300-300mm241493
?”NPTType T FEP8PT8-B-150-4P-TT20-72-72201737
?” mNPTType K FEP8PT8-SS-200-4P-KT20-24-144205042
?”NPT nippleType T FEP8PTN12-SS-200-4P-TT20-24-36205260
?”NPT nippleType J FEP8PTN12-SS-200-4P-JT20-24-48202241
1″ NPT nippleType J FEP8PTN16-SS-200-4P-JT20-36-240201757
?”NPT nippleType R FEP8PTN6-SS-200-4P-RT24-36-204241478
1 1/4″ o-ring face sealType K FEP8VS18-B-150-4P-KT20-99920P-12 marine bronze shells205191
1 1/4″ o-ring face sealType K FEP8VS18-B-150-4P-KT20-99920P-12 marine bronze shells205192
1″ o-ring face sealType K FEP & #16 PTFE12VS15L-SS-200-4P/4-KT20/TE16-3470P-1220 & 165754
1″ o-ring face sealType R & K FEP8VS15L-SS-150-2P/6P-RT20/KT20-36-3202038
1″o-ring face sealType Bx FEP8VS15L-SS-150-4P-BX20-120-1202850
1″ o-ring face sealType Bx FEP8VS15L-SS-150-4P-BX20-120-120201620
1″ o-ring face sealSX FEP8VS15L-SS-150-4P-SX20TWSH-120-120205194
1 1/4″ o-ring face sealType D16VS18-SS-200-8/4P-K20/TCD-15-15FT205650
1″ NPTPlatinum9PT2-SS-150-5-TE24/PFA36(Pt)-4-15 3k psi#24 #365310
KF40 NW40 flangeType K #24 FEP10NW40-SS-150-5P-KT24-48T-48T4953
NW40 FlangeType T FEP10NW40-SS-150-5P-TT24-1M-1M241680
1?” NPTType K FEP10PT20-SS-200-5P-KF22-48-48222234
?”NPTType K FEP10PT6-SS-150-5P-KT24-84-36241604
?” NPT sealType T10PT8-SS-200-5P-TT20-48-48204590
?”piston o-ringType K FEP10SP8S-E-150-5P-KT24-36-36241896
1″ o-ring face sealType Bx10VS15L-SS-150-5P-BX20-240-240204988
1″o-ring face sealType K FEP10VS15L-SS-150-5P-KT20-5m-25m203104
1″ o-ring face seal#18 BARE NIOBIUM SOLID10VS15L-SS-150-10-NB18- 72-12185450
?” o-ring face sealType K FEP10VS8-SS-150-5P-KT24-10-10242716
2 ?” sanitary flange 316SSType J FEP12CLF3(2.0)-316LSS-200-6P-JT28-10M-10M285357
NW 25 KF25 flangeType Bx glass baid12NW25-SS-200-6P-BX20-48-48205430
NW25 flangeType K FEP12NW25-SS-150-6P-KT20-24-24201960
1/2″mNPTType T #20 FEP12PT8-BNP-150-6P-TT20-18-32205066
?” NPTType T & K FEP insulated12PT12-B-150-3P/3P-TT20/KT20-120-120205002
?”NPTType K FEP12PT12-B-150-6P-TT20-72-72204363
1″ NPT nippleType K Glass Braid12PT16-SS-150-6P-KXG16-36-36162161
1″NPTType Jx FEP12PT16-SS-150-6P-JX24-300-180243697
1″ NPT hex nippleType K FEP12PTN16-SS-150-6-KT20-48-48205449
1?” NPTType J FEP12PT24-SS-200-6P-JT20-24-24202428
?”NPTType K FEP12PT8-SS-150-6P-KT20-12-12202583
1″ NPTType T FEP12PT16-SS-150-6P-TT20-48-96204800
1″NPTType t12PT16-B-150-6P-TT20-72-72204345
? ” piston o-ringType K FEP12SP8L-E-150-6P-KT30-12-12304419
17.37mm piston o-ringType K FEP12SP11M-E-80-6P-KT24-180CM-7CM241517
1″ o-ring face sealK Refrasil12VS15L-SS-200-6P-KR20-96T-96T202667
1″o-ring face sealType R & C FEP12VS15L-SS-150-4P/2P-RTT24/CX24-36-48241505
1;” o-ring sealType E FEP shielded12VS15L-SS-150-6P-ETSS20-15-15201404
1″ o-ring face sealCx PFA insulated12VS15L-SS-150-6P-CXT24-12-12245095
?” NPTType K FEP14PT8-SS-200-2/6P-TEE22/KT36-23.5/17-23.5/17362908
?”NPTType E21PTN12-SS-150-7P-ETS20-24-480204744
Conflat 1.33″Type T FEP insulated16CF133-SS-200-8P-TT24-120-38245775
DN40 flangeType T FEP insulated16NW40-SS-150-8P-TT20-1M-1M205113
?” NPTType T FEP16PT12-SS-200-8P-TT20-24-24202150
?” NPT threadType J FEP16PT12-SS-200-8P-JT20-36-72204360
?” NPTType T FEP16PT8-SS-150-8P-TT27-84-96271944
1/2″ mNPTType K FEP16PT8-SS-200-8P-KT24-120-40245052
?”NPTType T or K FEP16PT8-SS-150-8P-TT24-40-120?See Quick Ship List243285
?” NPT nippleType J FEP16PTN12-SS-200-8P-JT20-36-180201679
?”NPTType T FEP insulated16PT12-SS-150-8P-TT20-48-964839
?” NPTType K FEP16PT12-SS-200-8P-KT24-72-120243691
1″ NPT hex nippleSX FEP16PTN16-SS-150-8P-SX20TWSH-72-180205195
?”piston o-ringType Sx FEP16SP12-E-150-8P-SX20TWSH-240-180 twisted shielded pairs205196
?”piston o-ringType Kx16SP12-E-150-8P-KX20-240-180204809
17.32mm piston o-ringsType K FEP32SP11H-E-200-16/8P-TE28/KT28-24-24 10k psi16 #28 and 8 pairs Type K #285764
?” piston o-ringType Bx FEP16SP12-E-150-8P-BX20-240-180200722
1″o-ring face sealType Rx glass braid16VS15L-SS-150-8P-RSXG20-118-118205588
1″o-ring face sealType Rx & N glass braid16VS15L-SS-150-6P/2P-RSXG20/NG20-118-118205589
1″o-ring face sealType Rx & N glass braid16VS15L-SS-150-6P/2P-BXG20/NG20-118-118205590
1″o-ring face sealType K #20 glass braid16VS15L-SS-150-8P-HTKT20-48-1804854
1″ o-ring face sealBx16VS15L-SS-150-8P-BX20-3M-3M204275
1″o-ring face sealType T FEP16VS15L-SS-150-6P/4-TT20/EE22-48-48202214
1″ o-ring face sealType E #24 PVC16VS15-AL-150-4-TSPEP24-72-18 twisted shielded pairs245485
1?” o-ring face sealType K FEP shielded16VS18-SS-150-8TSP-KT20-18T-18T term205360
1?” o-ring face sealType Rx shielded FEP16VS18-SS-150-8TWSH-RPS20-300-60203692
1″o-ring face sealType Cx18VS15L-SS-150-9P-CX24-72-12244964
1?” o-ring face sealSingle disconnect Type Cx16VS22-SS-200-8P-CX16-120-3450P162707
1?”o-ring face sealSingle disconnect Type K16VS22-SS-200-8P-K16-120-3450P162706
3/4″ NPTK, T, J, or E18PTN12-SS-200-9P-KT TT JT ET20904
1?” NPTType K FEP18PT20-SS-200-9P-KF22-48-48222125
1″o-ring face seal nutType K glass braid18VS15L-SS-150-9P-KG20-48-48204994
1″ o-ring face sealType K FEP18VS15L-SS-150-9P-KT24-96-96242129
1″o-ring face sealType R FEP18VS15L-SS-150-9P-RXT20-48-48201875
1″ o-ring face sealType K18VS15-AL-150-9P-KT20-12-12204715
1″ o-ring face sealType K & R FEP16VS15L-SS-150-4p/4p-KT20/RT20-12-483513
1 5/8″o-ring face sealType Bx glass braid18VS22-SS-200-9P-BX20-120-3450S205380
1?”o-ring face sealType K #2219VS18P-SS-150-19-K22-3899920PS22PT-1073
1?”o-ring face sealType K19Pushthru PAVE-Mate? replaceable core20PT-1074
n/aType K19INLINE SUBMERSIBLE THERMOCOUPLE CABLE ASSEMBLY4613
n/aType K5SUBMERSIBLE RECEPTACLE THERMOCOUPLE CABLE ASSEMBLY4614
2?” Conflat flangeType Cx glass braid20CF275-SS-150-10P-CXG24-12-72245564
2?” Conflat flangeType Rx Sx20CF275-SS-150-10P-RT24-120-1204831
NW50 KF50Type K & Bx FEP20NW50-SS-200-2P/8P-KT20/BX20-36-36205573
NW/KF40Type J #24 FEP20NW40-SS-150-10P-JT24-96-48245513
1″NPTType K20PT16-SS-200-10P-KT20-36-X WELDED TIP204720
1 1/4″ o-ring face sealType K FEP20VS18-SS-150-10P-KT20-20-20205102
1?” o-ring face sealType T FEP20VS18-SS-150-10P-TT20SLE-72-72202225
Custom 6″ flangeType K FEP24FL-SS-150-12P-KG20-96-36 glass braid tc202145
NW40 flangeType Bx FEP24NW40-SS-150-12P-BXT20-48-48202441
NW40 flangeType K FEP24NW40-SS-150-12P-KT20-48-48201581
NW40 flangeType Ni/NiMo FEP24NW40-SS-150-12P-Ni/NiMoT18-36-24181843
NW40 flangeType N FEP24NW40-SS-150-12P-NT20-48-48202429
1″ NPTType K #2024PT16-SS-200-12P-KT20-18-18205504
1″ NPTType K FEP24PT16-SS-150-12P-KT20-120-480102317
?”NPT nippleType J FEP24PTN12-SS-200-12P-JT20-24-48202240
1″ NPT nippleType K Glass Braid24PTN16-SS-200-12P-KG20-36-36203115
1″NPT nippleType K FEP24PTN16-SS-150-12P-KT20-420-180203662
1?” NPT nippleType Sx FEP24PTN24-SS-200FR-24-SXT20-360<24202323
17.37mm piston o-ringType K FEP24SP11M-E-200-12P-KT30-400-400cm243585
1″ o-ring face sealType T FEP24VS15-AL-150-12P-TT20-96-244534
1″o-ring face sealType T FEP24VS15L-SS-150-12P-TT24-1M-1M244621
1″ o-ring face sealType K FEP24VS15L-SS-150-12P-KT24-300mm-300mm244524
1″o-ring face sealType C FEP24VS15L-SS-150-12P-CT24-120-60241586
1″ o-ring face sealTelfon16VS15L-SS-150-2/1/2-TSP26/USB3.1/USB2.0-34-34265459
1″ o-ring face sealType T & E shielded24VS15L-SS-200-10/2-TT20TWSH/ET20TWSH-36-60204574
1?”o-ring face sealType R FEP24VS18-SS-200-12P-RT20-12-12202564
standard densitydual sided25SP46/13-E-150-25-20-DSUB-DSUB TYPE K CONTACTS20 Type K3714
19.05mm piston face o-ringsType T FEP #2626SP11H-E-200-13P-TT26-96-18265656
1?”o-ring face sealType T special limits26VS18-SS-150-13P-TT24SLE-120-120244560
1?” o-ring face sealType K & R FEP26VS18-SS-200-5P/8P-KT20/RT20-180-180202009
1?”piston o-ringType T FEP27SPF18-E(1.125DIA)37-TT24241232
1 1/4″ o-ring face sealType J FEP insulated30VS18-SS-150-15P-JT20-5M-5M205110
2.5” sanitary flange 316SSType J #28 Teflon30CLF3(2.0)-316LSS-200-15P-JT28-10M-10M sanitary fitting hermetic passthrough285068
KF40 NW40 flangeType T FEP insulated32NW40-SS-150-16P-TT24-108-48245729
2?” Conflat flangeType T #24 FEP32CF275-SS-150-16P-TT24SLE-96-48245609
2?” Conflat flangeType T FEP32CF275-SS-150-16P-TT24-96-48244900
NW40 KF40 LF flangeType K FEP32NW40-SS-150-16P-KT24-108-48245154
1″NPTType B FEP32 shieldedPTN16-SS-150-8-BT20TWSH-72-180204477
1″ hex nipple NPTType T twisted shield32PTN16-SS-150-16P-TT24TWSH-36-84245387
17.37mm piston o-ringsType T #30 FEP32SP11H-E-200-16P-TT30-96-18305656
1″ jam nut o-ring face sealK #3038VS15L-AL-150-16P/8-KT30/TE30-12-48305552
1″ o-ring face sealType K40VS15-AL-150-16P/8-KT30/TE30-12-48305294
1″ o-ring face sealType K FEP insulated32VS15-AL-150-16P-KT30-12-48305187
1′ o-ring face sealType K #30 FEP32VS15L-SS-150-16P-KT30-12-48305135
1?”o-ring face sealType T FEP welded bead32VS18-SS-150-16P-TT24-144-60 BEAD245394
1?”o-ring face sealType E FEP32VS18-SS-200-16P-ET24-96-60242759
1-?” o-ring face sealType R FEP32VS18-SS-200-16P-RT24-12-12243724
1 1/4″ o-ring face sealType T FEP insulated32VS18-SS-150-16P-TT24SLE-144-144245180
1?”o-ring face sealType T FEP32VS22-SS-150-16P-TT20-24-24201871
1?” o-ring face sealType J & K FEP34VS22-SS-150-5P/2P/20-JT20/KT20/TEE20-72-72202275
1?”o-ring face sealType K FEP36VS22-SS-150-18P-KT20-48-48201779
2?”ConflatType K FEP40CF275-SS-200-20P-KT24-36-60245150
1?” NPTType T FEP40PT24-SS-150-20P-TT24-36-36241683
2?”Conflat flangeType K #2440CF275-SS-200-20P-KG24-36-36 glass braid insulation245749
2?”ConflatType K FEP40CF275-SS-150-20P-KT24-12-36244646
1?” o-ring face sealType T FEP40VS22-SS-150-20P-TT20-48-48201790
1?”o-ring face sealType K FEP40VS22-SS-200-20P-KT20-24-60202347
1?” o-ring face sealType R FEP40VS22-SS-200-20P-RXT20-24-60202032
1?”o-ring face sealSingle disconnect Type T FEP40VS26-SS-200-20-TT20-3122P-300 & SC3126F20-20-TT20-120202205
KF40 NW40Type K FEP Insulated48NW40-SS-150-24P-KT24-48-108245760
1?” NPT nippleType Sx FEP48PTN24-SS-200FR-24TP-SXT20-360<24202322
o-ring face sealType K dual sided connector50SP58/16-E-150-50-20-DSUB-DSUB TYPE K CONTACTS205344
1?”o-ring face sealType K FEP50VS22-SS-150-25P-KT20-36-36202063
1?” o-ring face sealType E FEP50VS22-SS-150-25P-ET24SLE-60-48242184
1?”o-ring face sealType N FEP50VS22-SS-150-25P-NT20-36-36, Ni203212
1?” o-ring face sealType T FEP50VS22-SS-150-25P-TT20-36-36202057
1?”o-ring face sealType T FEP60VS22-SS-150-25P/10-TT20/TEE20-48-48203508
1?” o-ring face sealType T FEP60VS22-SS-150-30P-TT24-120-24241626
1?”o-ring face sealType E FEP60VS22-SS-150-30P-ET24-144-72243304
1?” o-ring face sealType E FEP60VS22-SS-150-30P-ETSLE24-300-30243533
1?”o-ring face sealType E Glass Braid60VS22-SS-200FR-30P-EG24-24-240243646
1?” o-ring face sealDual sided connector Type T61VS26-SS-150-61-20-3470PS Type T thermocouple contacts202734
2?”conflatType K FEP72CF275-SS-150-36P-KT24-18-36243667
1?” o-ring face sealType K FEP80VS26-SS-150-40P-TT20-72T-120T204032
1?”o-ring face sealType K FEP80VS26-SS-150-40P-KT20-48-48203590
1?” SAEType T FEP80SO26-SS-150-40P-TT20-100-100202372
2?”o-ring face sealType K FEP80VS32L-SS-200-76P/4P-NT20S/RST20S-60ft-2ft203803
4.5″ Conflat flangeType T FEP96CF450-SS-150-48P-TT24-36-36245770
2?” conflatType E FEP100CF275-SS-150-50P-ET24-18-36243666
2?”o-ring face sealType E FEP140VS32-SS-150-70P-ET20-96-180E203313
2?”o-ring face sealType T FEP140VS32-SS-150-70P-TTSTR20-48-84202535
2?”o-ring face sealType K FEP160VS32-SS-150-80P-KT20-48-48201773
2?” o-ring face sealN & R/S FEP160VS32L-SS-200-76P/4P-NT20S/RST20S-60ft-2ft203802
2 1/2″ o-ring face sealType T FEP insulated250VS32-SS-150-125P-TT24SLE-144-144245179-3

Related posts
