螺紋銅棒氣密端子密封，PAVE的氣密密封是雙向的，可以在任意方向或兩者方向上密封壓力和真空。對于超過300 psi（20 bar）的壓力，如果改變圖紙上顯示的壓力方向，請與銷售工程師聯系。
銅或黃銅螺紋氣密端子密封用于最高電流容量，或鎳、鋁或不銹鋼螺紋或非螺紋棒針氣密密封貫穿端子密封，有各種各樣的樣式，包括標準設計和定制設計，適用于低和高工作壓力、真空達到10^-8 Torr、溫度范圍在-200℃至200℃之間、電壓達到32kV、電流達到1000安培。請參閱下方標準設計的螺紋氣密端子密封圖紙，也可以訂購新的定制密封設計。

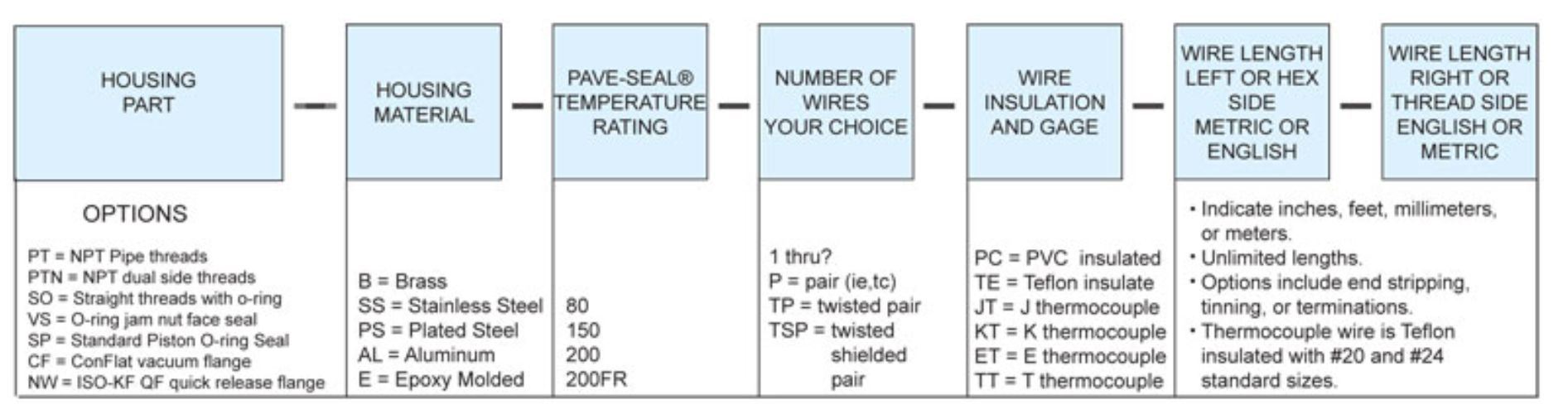

| Installation Port | Total Terminals or Studs | PAVE Description Codes, Housing & Wires | AWG # | Suggested Max Amperage +600V | DRAWING # |
|---|---|---|---|---|---|
| ? ” NPT | 1 | PT8-SS-150-1-.25CU-3-3?See Quick Ship List | 0.25 “ | 94 | 1573 |
| 1 ” NPT | 1 | PT16-SS-200HV-.50Cu-2.4-3.0?See Quick Ship List | 0.50 “ | 300 | 1587 |
| ? ” NPT | 1 | PT12-SS-200-.5CU-3-2 | 0.50 “ | 300 | 3181 |
| 1? ” o-ring face seal | 1 | VS26-SS-150-1-.75CU-3.7-3.7?See Quick Ship List | 0.75 “ | 400 | 1565 |
| NW40 KF40 | 1 | NW40-SS-150-1-.75CU-3.5-4.5 | 0.75 “ | 400 | 5034 |
| NW50 Flange | 2 | NW50-SS-150-2-.25CU-2.5-3.3 | .25 “ | 94 | 4056 |
| ? ” NPT | 2 | PT6-B-150-2-NICKEL FILAMENTS | 20 | 7 | 1307 |
| ? ” NPT | 2 | PT6L-SS-80-2-TE18 probe | 18 | 10 | 1340 |
| ? ” NPT | 2 | PT6L-SS-200-2- ALARM PROBE ASY | 24 | 3565 | |
| ? ” SAE | 1 | SO8-SS-80-1-B6.32CU-1-1 | 0.15 “ | 15 | 2584 |
| ? ” SAE | 1 | SO8-SS-80-1-B10.32-.5-.5 | 0.17 “ | 20 | 2616 |
| ? SAE | 1 | SO8-SS-150HV-1-.063NI-.43-.67 | 0.060 ” diameter nickel | 4349 | |
| 9/16 “-20 UN-2A | 1 | SO9-SS-150-1-.25CU-1-1.75 | 0.25 “ | 94 | 4212 |
| 9/16 ” SAE | 1 | SO9-SS-150-1-.39CU-1-1 | 0.30 ” or 7.62mm | 100 | 4051 |
| ? ” SAE o-ring | 1 | SO12-SS-200HV-.25CU-.85-.85 | 0.25 “ | 94 | 4721 |
| ? ” SAE | 1 | SO12-SS-150-.25CU-.7-.7 | 0.25 | 94 | 2910 |
| ? ” SAE | 1 | SO12-SS-150-1-.25-22-33mm | 0.25 | 94 | 3132 |
| 7/8″-14 UNF-2A threads | 1 | SO14L-AL-200-1-.38CU-1-1 | 3/8″ diameter copper rod | 200 | 5647 |
| ? ” o-ring face seal | 1 | VS8XL-AL-80HV-1-.08CU-1.3-.5 | 12 | 25 | 2053 |
| ? ” NPT | 1 | PT4-SS-80-1-.19CU-.94-1.62 | 0.19 “ | 50 | 0926 |
| 2 1/2″ o-ring face seal | 2 | VS32-SS-150-2-SurLok IP67 | 50mm2 copper cable | 200 | 5561 |
| ? ” NPT | 1 | PT12-PS-200HV-.38Cu-1-1?See Quick Ship List | 0.38 “ | 200 | 1236 |
| 3/4″mNPT | 1 | PT12-SS-200HV-.38Cu-1.6-1.6 | 3/8″ diameter copper rod | 200 | 5719 |
| 3/4″NPT | 1 | PT12-SS-200HV-.5CU-2-1.75 | 0.50 “ | 200 | 5587 |
| 3/4″mNPT | 1 | PT12-SS-200-.5CU-3-10 | 0.50 “ | 5070 | |
| ? ” o-ring face seal | 1 | VS12-SS-200-1-.25CU-3-3 | 0.25 “ | 94 | 0916 |
| 7/8″-14-28 SAE o-ring | 1 | SO14L-SS-150-1-.38CU-1-1 | 3/8″ diameter copper threaded rod | 200 | 5647 |
| 1-3/16 ” SAE | 1 | SO17LH-PS-200-1-.38CU | 0.38 “ | 200 | 2893 |
| 1 ” o-ring face seal | 1 | VS15-SS-150-.38CU-1-1 | 1/2″ copper tubes | 200 | 1444 |
| CF450 Contrlat flange | 2 | CF450-SS-150-2-.5 CU TUBE-4-10 | 0.38 “ | 5553 | |
| 1 ” o-ring face seal | 1 | VS15-SS-80-.38 SS Tube-1-1 | 0.38 “ | 0 | 1568 |
| 1 ” o-ring face seal | 1 | VS15L-SS-150-1-.5CU-2.4-1 | ?” diameter copper rod | 300 | 5447 |
| 1? ” o-ring face seal | 1 | VS18-SS-200-.50CU-2.2-2.6 | 0.50 “ | 300 | 917 |
| 1?” o-ring face seal jam nut | 1 | VS18-SS-150-1-.5CU-2.4-1 | ?” copper rod | 300 | 5314 |
| M45-6g thread o-ring face seal | 1 | VSM45XL-SS-150-1-.67CU-3.5-2 | 0.67 inches 17mm OD copper rod | 350 | 5249 |
| 1? ” NPT | 1 | PT24-SS-200HV-1-.75CU-3.6-7.9 PEEK 240C | ? ” copper rod | 400 | 4743 |
| 1? ” NPT | 1 | PT24-SS-150HV-1-0.75cu-4-4 | 0.75 “ | 400 | 1629 |
| 2? ” o-ring face seal | 1 | VS32DSL-SS-200HV-1-1CU-8-4 | 1.25 “ | 800 amps | 3344 |
| 2? ” o-ring face seal | 1 | VS32-SS-200HV-1-1.5CU-4.25-3 | 1.50 “ | 1000 amps | 3296 |
| 3? ” ASAS flange | 1 | FL2498-PS-200FR-1.50Ni-7-16 | 1.5 “ | 700 | 2477 |
