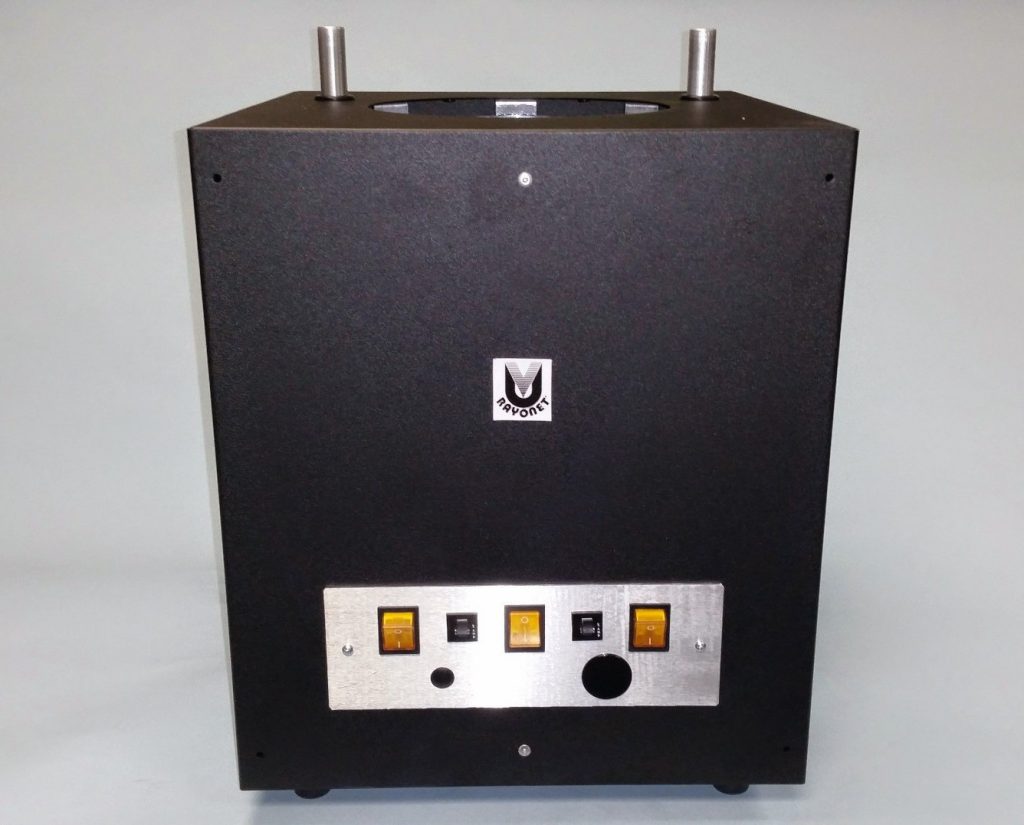

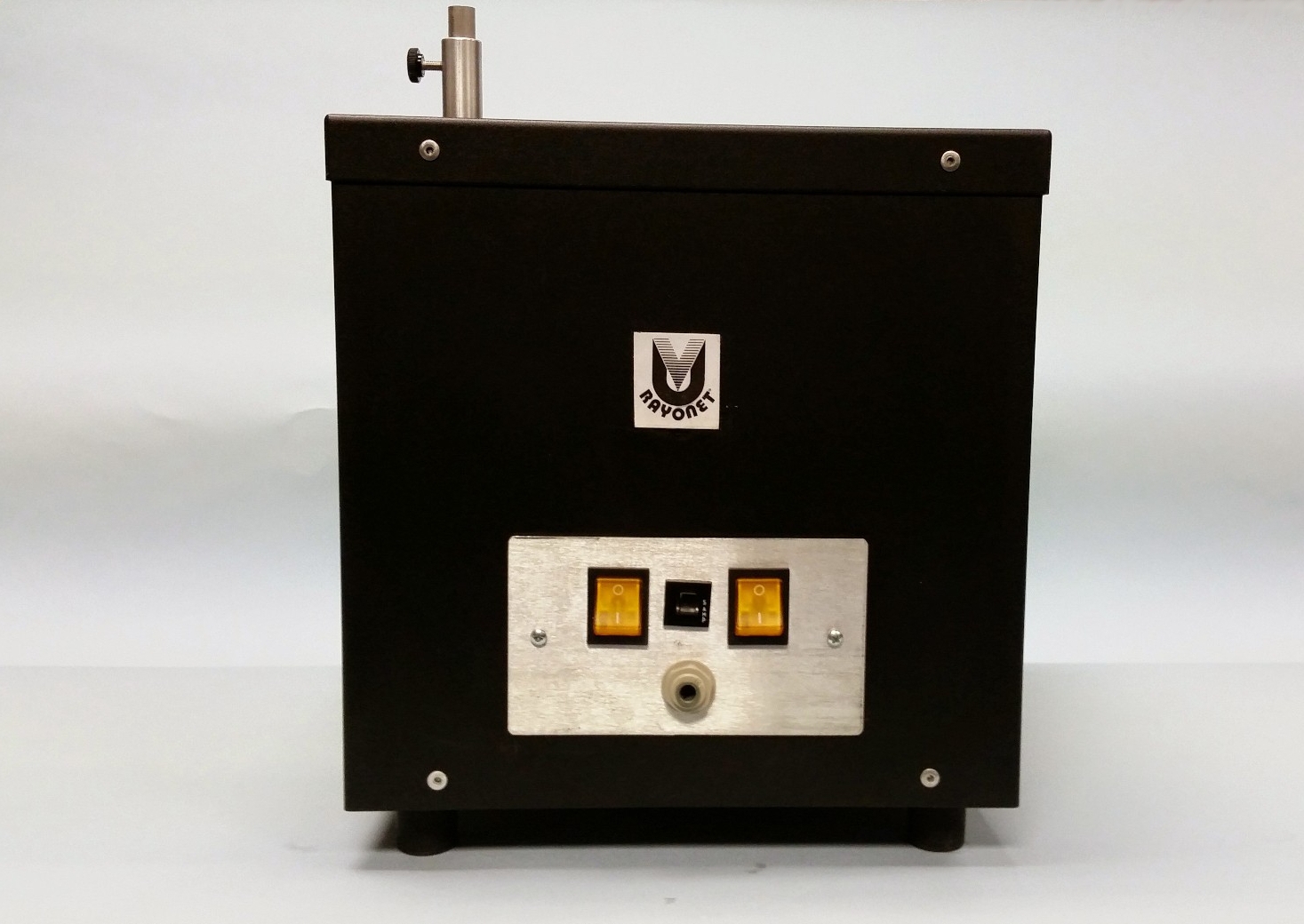

The RMR-600 model is a versatile, efficient, easy-to-use photochemical reactor. Ideal for applications where instrument simplicity and reliability are of prime importance, and cost effectiveness is a determining factor. This reactor makes a perfect teaching system; it comes complete in a “Ready to Use” package, with no assembly required.
STANDARD EQUIPMENT: The “Mini” reactor is supplied with eight 2537 A° light sources, one 1/2″ built-in support rod and a cooling fan. Normal operating temperature is 37°C. Low cost lamps provide long running life (approximately 3000 hours). The reactor’s power consumption is about one amperes @ 110/1 20 volts, 50/60 Hz, A.C. Reactor will operate for overseas operation (220/240v power grid – please be sure to request this in the notes of your quote request). Simple to operate, the reactor is controlled by four lamp switches, located on the top panel.
- The?RMA-400 Merry-Go-Round unit, which holds up to 8 samples for equal irradiation at one time at 5 RPM
Three Interchangeable Light Sources:
| Designed for the photolysis of | |
| Baldheads | Heterocyclic Compounds |
| Ketenes | Aromatic Nuclei |
| Halogen Derivative | Conjugated Dynes |
| Thio Compounds | Polynes |
| Olefins | Epoxides |
A photochemical system for the limited budget. High-performance, small size and low price makes it ideal for both undergraduate and graduate studies.
