奧地利Roithner Lasertechnik GmbH發光二極管 Mid-IR? Single Chip LEDs 中紅外單片發光二極管 Roithner 進口代理

2024年11月20日2024年11月20日許秀娟18001942024

Mid-IR? Single Chip LEDs 中紅外單片發光二極管

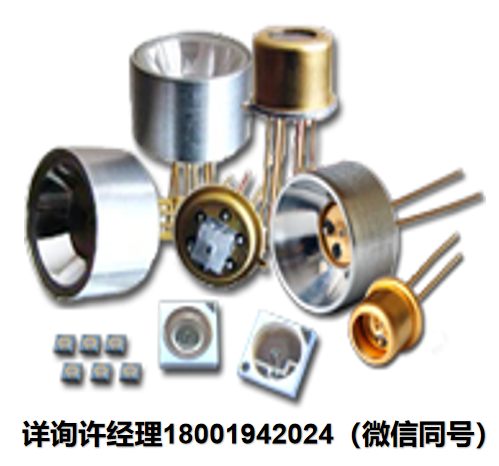

所有l(wèi)ed均提供TO18、TO5和SMD封裝，并可額外配置以下選項:

(R)拋物面反射器:向前方集中更多的輻射
(W)窗口:保護LED芯片免受損壞
(CH)硫?qū)俨Ａ?特殊的玻璃蓋，用于增加光輸出功率(高達3-5倍)
(T)熱電冷卻器:用于穩定的工作溫度或波長調諧

LED10	Peak Wavelength	FWHM	Output Power	Package	Note
LED10-SMD3020	1.03-1.07 μm	70-100 nm	QCW 12-20 mW	SMD	MOQ = 10 pcs
LED10	1.03-1.07 μm	70-100 nm	QCW 12-20 mW	TO-18
LED10-R	1.03-1.07 μm	70-100 nm	QCW 12-20 mW	TO-18
LED10-RW	1.03-1.07 μm	70-100 nm	QCW 12-20 mW	TO-18
LED10-TW	1.03-1.07 μm	70-100 nm	QCW 12-20 mW	TO-5
LED10-TRW	1.03-1.07 μm	70-100 nm	QCW 12-20 mW	TO-5

LED13	Peak Wavelength	FWHM	Output Power	Package	Note
LED13-SMD3020	1.25-1.33 μm	70-100 nm	QCW 10-18 mW	SMD	MOQ = 10 pcs
LED13	1.25-1.33 μm	70-100 nm	QCW 10-18 mW	TO-18
LED13-R	1.25-1.33 μm	70-100 nm	QCW 10-18 mW	TO-18
LED13-RW	1.25-1.33 μm	70-100 nm	QCW 10-18 mW	TO-18
LED13-TW	1.25-1.33 μm	70-100 nm	QCW 10-18 mW	TO-5
LED13-TRW	1.25-1.33 μm	70-100 nm	QCW 10-18 mW	TO-5

LED14	Peak Wavelength	FWHM	Output Power	Package	Note
LED14-SMD3020	1.40-1.49 μm	90-120 nm	QCW 7-15 mW	SMD	MOQ = 10 pcs
LED14	1.40-1.49 μm	90-120 nm	QCW 7-15 mW	TO-18
LED14-R	1.40-1.49 μm	90-120 nm	QCW 7-15 mW	TO-18
LED14-RW	1.40-1.49 μm	90-120 nm	QCW 7-15 mW	TO-18
LED14-TW	1.40-1.49 μm	90-120 nm	QCW 7-15 mW	TO-5
LED14-TRW	1.40-1.49 μm	90-120 nm	QCW 7-15 mW	TO-5

LED15	Peak Wavelength	FWHM	Output Power	Package	Note
LED15-SMD3020	1.50-1.59 μm	110-140 nm	QCW 7-15 mW	SMD	MOQ = 10 pcs
LED15	1.50-1.59 μm	110-140 nm	QCW 7-15 mW	TO-18
LED15-R	1.50-1.59 μm	110-140 nm	QCW 7-15 mW	TO-18
LED15-RW	1.50-1.59 μm	110-140 nm	QCW 7-15 mW	TO-18
LED15-TW	1.50-1.59 μm	110-140 nm	QCW 7-15 mW	TO-5
LED15-TRW	1.50-1.59 μm	110-140 nm	QCW 7-15 mW	TO-5

LED16	Peak Wavelength	FWHM	Output Power	Package	Note
LED16-SMD3020	1.60-1.69 μm	120-150 nm	QCW 7-15 mW	SMD	MOQ = 10 pcs
LED16	1.60-1.69 μm	120-150 nm	QCW 7-15 mW	TO-18
LED16-R	1.60-1.69 μm	120-150 nm	QCW 7-15 mW	TO-18
LED16-RW	1.60-1.69 μm	120-150 nm	QCW 7-15 mW	TO-18
LED16-TW	1.60-1.69 μm	120-150 nm	QCW 7-15 mW	TO-5
LED16-TRW	1.60-1.69 μm	120-150 nm	QCW 7-15 mW	TO-5

LED17	Peak Wavelength	FWHM	Output Power	Package	Note
LED17-SMD3020	1.70-1.76 μm	160-220 nm	QCW 5-10 mW	SMD	MOQ = 10 pcs
LED17	1.70-1.76 μm	160-220 nm	QCW 5-10 mW	TO-18
LED17-R	1.70-1.76 μm	160-220 nm	QCW 5-10 mW	TO-18
LED17-RW	1.70-1.76 μm	160-220 nm	QCW 5-10 mW	TO-18
LED17-TW	1.70-1.76 μm	160-220 nm	QCW 5-10 mW	TO-5
LED17-TRW	1.70-1.76 μm	160-220 nm	QCW 5-10 mW	TO-5

LED18	Peak Wavelength	FWHM	Output Power	Package	Note
LED18-SMD3020	1.80-1.89 μm	100-200 nm	QCW 0.7-1.1 mW	SMD	MOQ = 10 pcs
LED18	1.80-1.89 μm	100-200 nm	QCW 0.7-1.1 mW	TO-18
LED18-R	1.80-1.89 μm	100-200 nm	QCW 0.7-1.1 mW	TO-18
LED18-RW	1.80-1.89 μm	100-200 nm	QCW 0.7-1.1 mW	TO-18
LED18-TW	1.80-1.89 μm	100-200 nm	QCW 0.7-1.1 mW	TO-5
LED18-TRW	1.80-1.89 μm	100-200 nm	QCW 0.7-1.1 mW	TO-5

LED19	Peak Wavelength	FWHM	Output Power	Package	Note
LED19-SMD3020	1.90-1.99 μm	100-200 nm	QCW 0.8-1.2 mW	SMD	MOQ = 10 pcs
LED19	1.90-1.99 μm	100-200 nm	QCW 0.8-1.2 mW	TO-18
LED19-R	1.90-1.99 μm	100-200 nm	QCW 0.8-1.2 mW	TO-18
LED19-RW	1.90-1.99 μm	100-200 nm	QCW 0.8-1.2 mW	TO-18
LED19-TW	1.90-1.99 μm	100-200 nm	QCW 0.8-1.2 mW	TO-5
LED19-TRW	1.90-1.99 μm	100-200 nm	QCW 0.8-1.2 mW	TO-5

LED20	Peak Wavelength	FWHM	Output Power	Package	Note
LED20-SMD3020	2.00-2.09 μm	150-250 nm	QCW 0.8-1.2 mW	SMD	MOQ = 10 pcs
LED20	2.00-2.09 μm	150-250 nm	QCW 0.8-1.2 mW	TO-18
LED20-R	2.00-2.09 μm	150-250 nm	QCW 0.8-1.2 mW	TO-18
LED20-RW	2.00-2.09 μm	150-250 nm	QCW 0.8-1.2 mW	TO-18
LED20-TW	2.00-2.09 μm	150-250 nm	QCW 0.8-1.2 mW	TO-5
LED20-TRW	2.00-2.09 μm	150-250 nm	QCW 0.8-1.2 mW	TO-5

LED21	Peak Wavelength	FWHM	Output Power	Package	Note
LED21-SMD3020	2.10-2.19 μm	150-250 nm	QCW 0.8-1.2 mW	SMD	MOQ = 10 pcs
LED21	2.10-2.19 μm	150-250 nm	QCW 0.8-1.2 mW	TO-18
LED21-R	2.10-2.19 μm	150-250 nm	QCW 0.8-1.2 mW	TO-18
LED21-RW	2.10-2.19 μm	150-250 nm	QCW 0.8-1.2 mW	TO-18
LED21-TW	2.10-2.19 μm	150-250 nm	QCW 0.8-1.2 mW	TO-5
LED21-TRW	2.10-2.19 μm	150-250 nm	QCW 0.8-1.2 mW	TO-5

LED22	Peak Wavelength	FWHM	Output Power	Package	Note
LED22-SMD3020	2.20-2.29 μm	150-250 nm	QCW 0.8-1.2 mW	SMD	MOQ = 10 pcs
LED22	2.20-2.29 μm	150-250 nm	QCW 0.8-1.2 mW	TO-18
LED22-R	2.20-2.29 μm	150-250 nm	QCW 0.8-1.2 mW	TO-18
LED22-RW	2.20-2.29 μm	150-250 nm	QCW 0.8-1.2 mW	TO-18
LED22-TW	2.20-2.29 μm	150-250 nm	QCW 0.8-1.2 mW	TO-5
LED22-TRW	2.20-2.29 μm	150-250 nm	QCW 0.8-1.2 mW	TO-5

LED23	Peak Wavelength	FWHM	Output Power	Package	Note
LED23-SMD3020	2.30-2.39 μm	170-270 nm	QCW 0.6-1.0 mW	SMD	MOQ = 10 pcs
LED23	2.30-2.39 μm	170-270 nm	QCW 0.6-1.0 mW	TO-18
LED23-R	2.30-2.39 μm	170-270 nm	QCW 0.6-1.0 mW	TO-18
LED23-RW	2.30-2.39 μm	170-270 nm	QCW 0.6-1.0 mW	TO-18
LED23-TW	2.30-2.39 μm	170-270 nm	QCW 0.6-1.0 mW	TO-5
LED23-TRW	2.30-2.39 μm	170-270 nm	QCW 0.6-1.0 mW	TO-5

LED27	Peak Wavelength	FWHM	Output Power	Package	Note
LED27-SMD3020	2.70-2.79 μm	300-500 nm	QCW 12-25 μW	SMD	MOQ = 10 pcs
LED27	2.70-2.79 μm	300-500 nm	QCW 12-25 μW	TO-18
LED27-R	2.70-2.79 μm	300-500 nm	QCW 12-25 μW	TO-18
LED27-RW	2.70-2.79 μm	300-500 nm	QCW 12-25 μW	TO-18
LED27-CH	2.70-2.79 μm	300-500 nm	QCW 50-150 μW	TO-18	HIGH POWER
LED27-TW	2.70-2.79 μm	300-500 nm	QCW 12-25 μW	TO-5
LED27-TRW	2.70-2.79 μm	300-500 nm	QCW 12-25 μW	TO-5

LED28	Peak Wavelength	FWHM	Output Power	Package	Note
LED28-SMD3020	2.83-2.90 μm	300-500 nm	QCW 20-40 μW	SMD	MOQ = 10 pcs
LED28	2.83-2.90 μm	300-500 nm	QCW 20-40 μW	TO-18
LED28-R	2.83-2.90 μm	300-500 nm	QCW 20-40 μW	TO-18
LED28-RW	2.83-2.90 μm	300-500 nm	QCW 20-40 μW	TO-18
LED28-CH	2.83-2.90 μm	300-500 nm	QCW 100-300 μW	TO-18	HIGH POWER
LED28-TW	2.83-2.90 μm	300-500 nm	QCW 20-40 μW	TO-5
LED28-TRW	2.83-2.90 μm	300-500 nm	QCW 20-40 μW	TO-5

LED32	Peak Wavelength	FWHM	Output Power	Package	Note
LED32	3.20-3.30 μm	400-700 nm	QCW 10-35 μW	TO-18	on request
LED32-R	3.20-3.30 μm	400-700 nm	QCW 10-35 μW	TO-18	on request
LED32-RW	3.20-3.30 μm	400-700 nm	QCW 10-35 μW	TO-18	on request
LED32-TW	3.20-3.30 μm	400-700 nm	QCW 10-35 μW	TO-5	on request
LED32-TRW	3.20-3.30 μm	400-700 nm	QCW 10-35 μW	TO-5	on request

LED34	Peak Wavelength	FWHM	Output Power	Package	Note
LED34-SMD3020	3.30-3.44 μm	250-600 nm	QCW 20-45 μW	SMD	MOQ = 10 pcs
LED34	3.30-3.44 μm	250-600 nm	QCW 20-45 μW	TO-18
LED34-R	3.30-3.44 μm	250-600 nm	QCW 20-45 μW	TO-18
LED34-RW	3.30-3.44 μm	250-600 nm	QCW 20-45 μW	TO-18
LED34-CH	3.30-3.44 μm	250-600 nm	QCW 100-300 μW	TO-18	HIGH POWER
LED34-TW	3.30-3.44 μm	250-600 nm	QCW 20-45 μW	TO-5
LED34-TRW	2.83-2.90 μm	300-500 nm	QCW 20-40 μW	TO-5
