Broad Bandpass Filters寬帶通濾波器BBP系列? BBP-1190-1590c nm
標準寬帶通濾波器(波長范圍為紫外、可見、近紅外和紅外)。
一般規(guī)格:
直徑:25.4毫米+0/-0.2毫米。定制尺寸
厚度:在下面的過濾器列表中指定(毫米)，公差為0.2毫米
阻擋:平均< 0.1 %的紫外線阻擋高

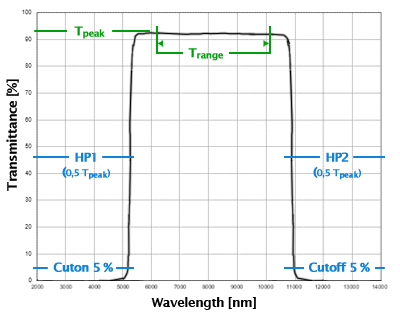

斜率:< 5 %定義為:
光譜測量
每種濾光器類型都提供了室溫和垂直入射角下的光譜曲線。
描述:以納米為單位的BBP-HP1-HP2(HP為Tpeak的50 %)
(例如BBP-0555-0695c nm，c代表濾波器在截止和截止5 %后分類，而不是HP1和HP2正常的50 %)
Broad Bandpass Filters寬帶通濾波器貨號：
| Description | Substrate | Thk | HP1 50 % +/- tol | HP2 50 % +/- tol | Transm > % | Block high | ||
|---|---|---|---|---|---|---|---|---|
| BBP-1190-1590c nm | Glass | 0.5 | 30 | 30 | 75 | 3500 | ||
| BBP-1260-1500 nm | Glass | 0.55 | 50 | 50 | 70 | 3500 | ||
| BBP-1615-2280 nm | Silicon | 0.5 | 50 | 50 | 70 | 3500 | ||
| BBP-1800-2200 nm | Glass | 0.5 | 50 | 50 | 65 | 3500 | ||
| BBP-2050-2600 nm | Glass | 0.55 | 150 | 150 | 80 | 3500 | ||
| BBP-2150-3100c nm | Silicon | 0.5 | 85 | 85 | 70 | 7500 | ||
| BBP-2850-3850 nm | Sapphire | 0.5 | 75 | 75 | 70 | 30000 | ||
| BBP-2960-3260 nm | Quartz | 1 | 75 | 75 | 70 | 5500 | ||
| BBP-3000-5000 nm | Sapphire | 1 | 100 | 100 | 70 | 30000 | ||
| BBP-3190-3840c nm | Quartz | 1 | 75 | 75 | 70 | 30000 | ||
| BBP-3440-4075 nm | Sapphire | 1 | 50 | 50 | 70 | 30000 | ||
| BBP-3950-6250 nm | Silicon | 0.5 | 100 | 120 | 70 | 10000 | ||
| BBP-4300-4600 nm | Silicon | 1 | 100 | 100 | 70 | 6000 | ||
| BBP-4700-5300 nm | Sapphire | 0.5 | 100 | 100 | 70 | 22000 | ||
| BBP-5030-5730c nm | Sapphire | 0.5 | 75 | 75 | 70 | 30000 | ||
| BBP-5040-5715c nm | Sapphire | 0.5 | 75 | 75 | 70 | 30000 | ||
| BBP-5500-6000 nm | Silicon | 1 | 100 | 100 | 70 | 14000 | ||
| BBP-7000-8750c nm | Germanium | 1 | 100 | 200 | 80 | 12000 | ||
| BBP-8075-9400 nm | Germanium | 1 | 150 | 150 | 70 | 20000 | ||
| BBP-8150-11000 nm | Zns | 1.4 | 200 | 200 | 70 | 20000 | ||
| BBP-8250-8780 nm | Germanium | 1 | 50 | 50 | 70 | 12000 | ||
| BBP-8500-15800 nm | Germanium | 0.5 | 350 | 350 | 70 | 23000 | ||
| BBP-8900-13250 nm | Zns | 1.4 | 150 | 150 | 70 | 20000 | ||
| BBP-9040-9360 nm | Germanium | 1 | 100 | 100 | 70 | 12000 | ||
| BBP-9050-9450 nm | Germanium | 1 | 150 | 150 | 70 | 12000 | ||
| BBP-9100-9455 nm | Germanium | 1 | 100 | 100 | 70 | 12000 | ||
| BBP-9350-10075 nm | Silicon | 0.5 | 150 | 150 | 17000 | |||
| BBP-10000-11230 nm | Silicon | 0.5 | 250 | 250 | 70 | 20000 | ||
| BBP-10100-11500 nm | Germanium | 0.5 | 300 | 300 | 80 | 15000 |
