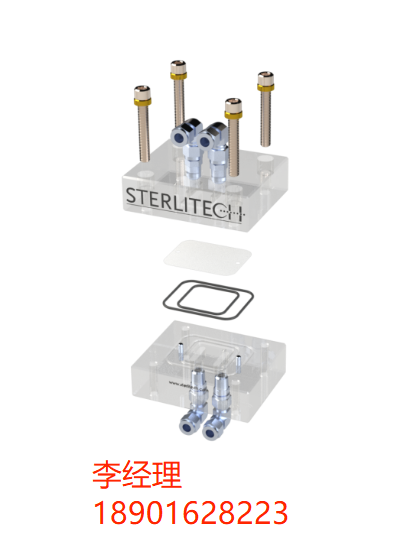

CF042 Cell Assembly, Crossflow, Acetal Copolymer (Delrin) (CF042D)
CF042乙醛共聚物（聚甲醛）錯流電池組件（CF042D）
橫流/切向流測試池通常用于膜應用，例如：
- 膜試驗和質量保證
- 生物或生物制藥加工
- 濃縮果汁和提取物
- 食品飲料加工
- 微咸水或海水淡化
- 電鍍槽沖洗水的凈化
- 市政或工業用水和廢水凈化
Specifications
| ? | CF016 | CF042 | Sepa |
|---|---|---|---|
| Active Membrane Area | 20.6 cm2?(3.2 in2) | 42 cm2?(6.5 in2) | 140 cm2?(22 in2) |
| Hold-Up Vol. | 13 mL (0.44 oz) | 17 mL (0.57 oz) | 70 mL (2.4 oz) |
| Connections | Feed:1/4?in FNPT (base of cell) Concentrate1/4?in FNPT (base of cell) Filtrate:1/8?in FNPT (top of cell) |
Feed:1/4?in FNPT (base of cell) Concentrate1/4?in FNPT (base of cell) Filtrate:1/8?in FNPT (top of cell) |
Feed:1/4?in FNPT (base of cell) Concentrate1/4?in FNPT (base of cell) Filtrate:1/8?in FNPT (top of cell) |
| Outer Dimensions | 12.7 x 10 x 8.3 cm (5 x 4 x 3.25 in) | 12.7 x 10 x 8.3 cm (5 x 4 x 3.25 in) | 16.51 x 21.3 x 5 cm (6.5 x 8.38 x 2.07 in) |
| Active Area Dimensions | 4.52 x 4.52 cm (1.78 x 1.78 in) | 9.207 x 4.572 cm (3.625 x 1.8 in) | 9.7 x 14.7 cm (3.81 x 5.78 in) |
| Slot Depth | 0.23 cm (0.09 in) | 0.23 cm (0.09 in) | 0.19 cm (0.075 in) |
| Slot Width | 39 mm (1.54 in) | 39 mm (1.54 in) | 95.3 mm (3.75 in) |
