單向和雙向集成抽頭檢測器

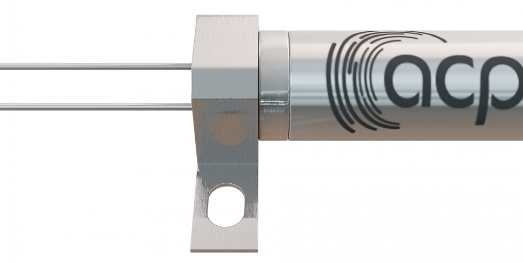

ACP的單向和雙向集成抽頭檢測器是一種混合光學組件，將薄膜抽頭和PIN光學檢測器的功能結合在一個緊湊的封裝中，用于電源監控應用。單向設計確保僅檢測輸入端口功率，對反射光具有高隔離性(指向性)。
特性
低IL和PDL
低暗電流
優秀的方向性
密封PD
應用程序
產品規格
| Parameter | Unit | Specifications | ||||
|---|---|---|---|---|---|---|
| Tap Ratio | % | 1 | 2 | 3 | 5 | 10 |
| Operating wavelength | nm | 1310nm: 1270 ~ 1350 1550nm: 1510 ~ 1590 L – Band: 1570 ~ 1610 O+C+L Band: 1270 ~ 1350 & 1510 ~ 1610 | ||||
| Insertion Loss (Single Window) | dB | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | ≤ 0.7 | ≤ 0.9 |
| Insertion Loss (Dual Window) | dB | ≤ 0.7 | ≤ 0.7 | ≤ 0.7 | ≤ 0.9 | ≤ 1.0 |
| Responsivity (C, L Band) (Max) | mA/W | 15 | 25 | 40 | 64 | 145 |
| Responsivity (C, L Band) (Min) | mA/W | 7 | 13 | 25 | 42 | 70 |
| Responsivity (1310) (Max) | mA/W | 11 | 23 | 38 | 60 | 136 |
| Responsivity (1310) (Min) | mA/W | 5 | 11 | 23 | 40 | 65 |
| Wavelength Flatness | dB | ≤ 0.15 | ||||
| Polarization Dependent Loss | dB | ≤ 0.10 | ||||
| Directivity | dB | ≥ 251) | ||||
| Return Loss | dB | ≥ 45 | ||||
| Optical Input Power (Max.) | dBm | ≤ 23 | ≤ 20 | ≤ 18 | ≤ 16 | ≤ 13 |
| Soloering Temperature | °C | 250 (≤10sec) | ||||
| Operating Temperature | °C | – 5 to +70 | ||||
| Storage Temperature | °C | – 40 to +85 | ||||
| Package Dimensions | mm | See “MECHANICAL DIMENSIONS” | ||||
Note:
1) For unidirectional only.
All values refenced are without connector.
