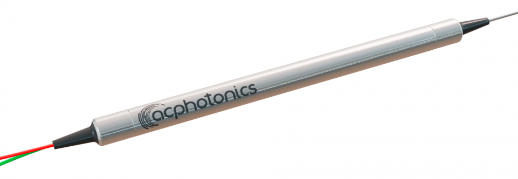

多模光環行器
ACP的多模光環行器采用專有設計和金屬鍵合微光學封裝。它提供低插入損耗，寬帶高隔離，低PDL，優異的溫度穩定性和光路無環氧樹脂。它可用于波長加/降、色散補償和EDFA應用。
特性
低插入損耗
寬帶，高隔離
低PDL
緊湊直列封裝
高穩定性和可靠性
無環氧光路
應用程序
光放大器
城域網
波長增加/下降
色散補償
雙向的溝通
產品規格
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Grade | P | A | |
| Operating Wavelength | nm | 1310±30, 1550±30, 1585±30 | |
| Typical Insertion Loss | dB | 1.0 | 1.1 |
| Insertion Loss | dB | ≤ 1.3(Max.) | ≤ 1.5(Max.) |
| Channel Peak Isolation | dB | ≥ 40 | |
| Channel Minimum Isolation | dB | ≥ 30 | |
| Channel Cross Talk | dB | ≥ 30 | |
| Return Loss | dB | ≥ 30 | |
| Optical Power | W | ≤ 5 | |
| Operating Temperature | °C | 0 to +70 | |
| Storage Temperature | °C | – 40 to +85 | |
| Package Dimensions | mm | ?5.5 x L72 | |
All values referenced are without connector.
