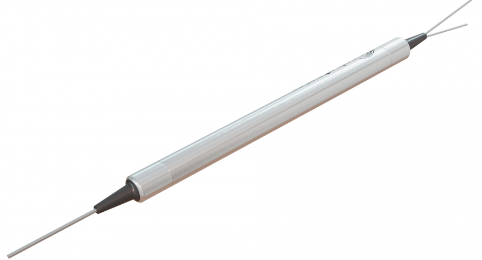

CL波段偏振不敏感光環行器
ACP的偏振不敏感光學環行器采用專有設計和金屬鍵合微光學封裝。它提供低插入損耗，寬帶高隔離，低PDL，優異的溫度穩定性和光路無環氧樹脂。它可用于波長加/降、色散補償和EDFA應用。
特性
低插入損耗
寬帶，高隔離
低PDL
緊湊直列封裝
高穩定性和可靠性
無環氧光路
應用程序
光放大器
城域網
波長增加/下降
色散補償
雙向的溝通
產品規格
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Grade | P | A | |
| Operating Wavelength | nm | 1470 – 1610 | |
| Typical Insertion Loss | dB | 0.7 | 0.8 |
| Insertion Loss | dB | ≤ 1.0 (Max.) | ≤ 1.1 (Max.) |
| Channel Peak Isolation | dB | ≥ 50@1550nm | |
| Channel Isolation | dB | 1520 – 1580nm: ≥40 (Min.) 1470 – 1610nm: ≥32 (Min.) | |
| Channel Cross Talk | dB | ≥ 50 | |
| Polarization Dependent Loss | dB | ≤ 0.15 | |
| Polarization Mode Dispersion | ps | ≤ 0.10 | |
| Return Loss | dB | ≥ 50 | |
| Optical Power | mW | ≤ 300 | |
| Operating Temperature | °C | 0 to +70 | |
| Storage Temperature | °C | – 40 to +85 | |
| Package Dimensions | mm | ?5.5xL63 ?5.5xL50 | |
All values referenced are without connector.
