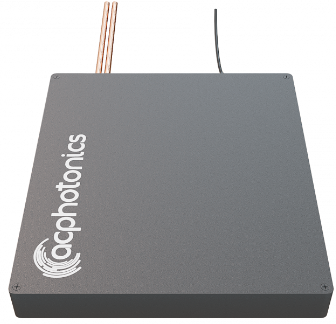

大功率PLC分路器
特性
低插入損耗
低PDL
優異的環境和機械穩定性
符合Telcordia GR-1221和GR-1209標準
應用程序
FTTX (fttp, ftth, fttn, fttc)
無源光網絡(PON)
局域網(LAN)
有線電視
測試設備
產品規格
| Parameter | Unit | Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | nm | 1310±40 or 1550±40 or 1260 ~ 1650 | |||||||||||
| Type | dB | 1×2 | 2×2 | 1×4 | 2×4 | 1×8 | 2×8 | 1×16 | 2×16 | 1×32 | 2×32 | 1×64 | 2×64 |
| Insertion loss (max) * | dB | 4.0 | 4.5 | 7.2 | 7.8 | 10.8 | 11.2 | 14.0 | 14.5 | 16.9 | 17.5 | 21.0 | 22.2 |
| Uniformity * | dB | 0.50 | 1.2 | 0.60 | 1.2 | 0.80 | 1.5 | 1.2 | 2.0 | 1.7 | 2.5 | 2.5 | 2.5 |
| Polarization Dependent Loss* | dB | 0.20 | 0.30 | 0.20 | 0.30 | 0.30 | 0.40 | 0.30 | 0.40 | 0.30 | 0.40 | 0.30 | 0.40 |
| Wavelength Dependent Loss | dB | 0.30 | 0.30 | 0.30 | 0.40 | 0.30 | 0.60 | 0.50 | 0.60 | 0.80 | 0.80 | 0.80 | 1.0 |
| Temperature Dependent Loss (-40 ~ 85°C) | dB | ≤ 0.5 | |||||||||||
| Return Loss* | dB | ≥ 50 | |||||||||||
| Directivity * | dB | ≥ 55 | |||||||||||
| Optical Power | W | ≤ 1.0(Higher power upon request) | |||||||||||
| Operating Temperature | °C | – 40 to +85 | |||||||||||
| Storage Temperature | °C | – 40 to +85 | |||||||||||
| Package Dimensions (LxWxH) | mm | Type S: 89x51x9.2 Type F: 96x78x8 Type L1: LGX box single wide | Type F: 96x78x8 Type G: 96x78x13 Type H: 96x78x16 Type R1: 19” Rack single wide Type L1: LGX box single wide** Type L2: LGX box double wide | Type H: 96x78x16 Type R1: 19” Rack single wide Type L2: LGX box double wide** | Type G: 96x78x13 Type H: 96x78x16 Type R1: 19” Rack single wide Type L2: LGX box double wide** | ||||||||
| Package Dimensions (LxWxH) [Type A (Ribbon and Bare Fiber)] | nm | 40x4x4 | 40x4x4 | 40x4x4 | 40x4x4 | 40x4x4 | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | 60x12x4 | 60x12x4 |
| Package Dimensions (LxWxH) [Type A (900um loose tube)] | mm | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | 60x12x4 | 60x12x4 | 80x20x6 | 80x20x6 | 100x40x6 | 100x40x6 |
Note:
*At room temperature and excludes connector loss.
** For small form factor connectors only.
