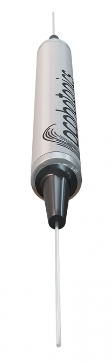

增益平坦濾波器-隔離器混合
ACP的用于EDFA的GFFI是增益平坦濾波器和1550隔離器的組合。GFFI提供edfa頻譜增益曲線的在線補償，具有高隔離度、低PDL和低PMD等優異性能。
特性
寬工作波長范圍
低插入損耗
高的隔離
平坦譜增益
高穩定性和可靠性
無環氧光路
應用程序
光纖放大器
產品規格
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Stage | Single | Dual | |
| Operating Wavelength (C-Band) | nm | 1528 – 1565 or custom | |
| Operating Wavelength (L-Band) | nm | 1570 – 1610 or custom | |
| Insertion Loss | dB | ≤ 1.0 | ≤ 1.1 |
| Modulation Depth | dB | 1 – 3 | 3.1 -6 |
| Peak to Peak Error Function | dB | ≤ 0.50 | ≤ 0.80 |
| Isolation | dB | ≥ 28 | ≥ 45 |
| Polarization Dependent Loss | dB | ≤ 0.10 | |
| Return Loss | dB | ≥ 50 | |
| Optical Power | mW | ≤ 500 | |
| Operating Temperature | °C | 0 to +70 | |
| Storage Temperature | °C | – 40 to +85 | |
| Package Dimensions | mm | A=standard, ? 5.5 x L34 for bare fiber ? 5.5 x L38 for 900um fiber M=Compact, ?4.8XL30 (250um bare fiber) | |
All values referenced are without connector.
