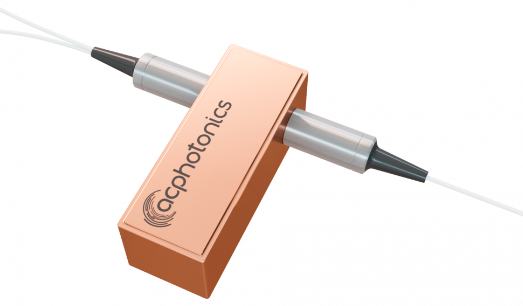

雙1×2機械單模光纖開關
ACP的MS系列開關通過將輸入的光信號重定向到選定的輸出光纖來連接光通道。這是使用正在申請專利的光機械專有配置實現的，并通過電氣控制信號激活。Switch提供超高的可靠性和快速的交換速度以及雙向性能。MS光纖開關是光網絡應用的真正交換解決方案。
特性
低成本
低插入損耗
高通道隔離
高度穩定可靠
無環氧光路
閉鎖或非閉鎖
應用程序
光網絡保護/恢復
光信號路由
可配置光的添加/刪除
發射機和接收機保護
網絡測試系統
儀表
產品規格
| Parameter | Unit | Specifications | |||
|---|---|---|---|---|---|
| Operating Windows | Single | Dual | |||
| Operating Wavelength | nm | 1310 ± 40 or 1550 ± 40 | 1310 / 1550 ± 30 | ||
| Grade | P | A | P | A | |
| Insertion Loss | dB | ≤ 0.5 | ≤ 0.8 | ≤ 0.7 | ≤ 1.0 |
| Temperature Dependent Loss | dB | ≤ 0.15 | ≤ 0.20 | ≤ 0.15 | ≤ 0.20 |
| Wavelength Dependent Loss | dB | ≤ 0.25 | ≤ 0.30 | ||
| Polarization Dependent Loss | dB | ≤ 0.05 | |||
| Channel Cross Talk | dB | ≥ 55 | |||
| Return Loss | dB | ≥ 55 | |||
| Repetability | dB | ± 0.02 | |||
| Switching Speed | ms | Typ.: 4 Max.: ≤5 | |||
| Operating Voltage | V | 5 ± 0.5 | |||
| Durability (Cycles) | Million | 10 | |||
| Optical Power | mW | ≤ 500 | |||
| Operating Temperature | °C | 0 to +70 | |||
| Storage Temperature | °C | – 40 to +85 | |||
| Package Dimensions | mm | H Package: L22.3 x W12.1 x H11.0 V Package: L25 x W12.6 x H8.5 | |||
All values referenced are without connector.
