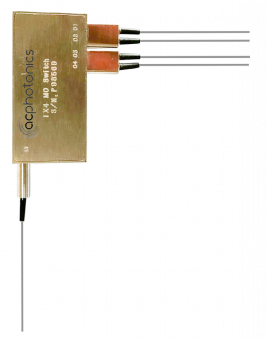

緊湊型1×4固態單模光纖開關
ACP的SW系列交換機通過將輸入的光信號重定向到選定的輸出光纖來連接光通道。這是通過正在申請專利的非機械專有配置實現的，并通過電氣控制信號激活。固態操作提供了超高的可靠性和快速的開關速度以及雙向性能。SW光纖交換機是光網絡應用的真正交換解決方案。
特性
切換速度快
超高可靠性
自鎖
高度可重復性
低成本
應用程序
光網絡保護/恢復
光信號路由
可配置光的添加/刪除
發射機和接收機保護
網絡測試系統
儀表
產品規格
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Port Configuration | Unidirectional | Bidirectional | |
| Operating Wavelength | nm | 1525 – 1565 or custom wavelengths | |
| Insertion Loss | dB | ≤ 1.5 | ≤ 1.8 |
| Polarization Dependent Loss | dB | ≤ 0.25 | ≤ 0.3 |
| Polarization Mode Dispersion | ps | ≤ 0.20 | |
| Channel Cross Talk | dB | ≥ 40 | ≥ 30 |
| Return Loss | dB | ≥ 40 | ≥ 30 |
| Repetability | dB | ± 0.01 | |
| Switching Speed | us | Regular: 50 ~ 200 Ultra-fast: 2 ~ 20 | |
| Durability (Cycles) | Billion | ≥ 1,000 | |
| Optical Power | mW | ≤ 500 | |
| Operating Temperature | °C | – 5 to +70 | |
| Storage Temperature | °C | – 40 to +85 | |
| Package Dimensions (LxWxH) | mm | 37x21x7.5 | |
All values referenced are without connector.
