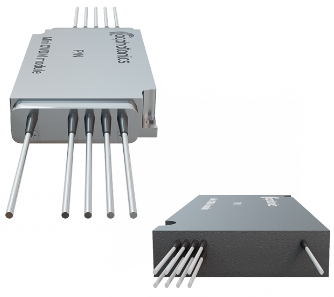

緊湊型CWDM單面和雙面
ACP的粗波分復用器(CWDM)采用薄膜涂層技術和專有的非通量金屬鍵合微光學封裝設計。它具有低插入損耗，高通道隔離，寬通帶，低溫靈敏度和無環氧樹脂光路。
特性
緊湊的組件
優異的熱穩定性
低紋波濾波器
低插入損耗
寬通帶
高通道隔離
應用程序
寬帶系統
光加/丟復用
城域/接入通信網絡
光纖儀器
產品規格
| Parameter | Unit | Specifications | |||||
|---|---|---|---|---|---|---|---|
| Mux/Demux | |||||||
| Operating Wavelength | nm | 1270 ~ 1610 | |||||
| Center Wavelength | nm | 1270, 1290, …1610 or 1271, 1291, …1611 | |||||
| Minimum Channel Spacing | nm | 20 | |||||
| Channel Passband | nm | ≥ 13 | |||||
| Package Type | Dual side | Single side | |||||
| Channel configuration | 4 Ch | 4+1 Ch1) | 8 Ch | 8+1 Ch1) | 4 Ch | 8 Ch | |
| Insertion Loss (Channel ports) | dB | ≤ 1.4 | ≤ 1.5 | ≤ 1.5 | ≤ 1.6 | ≤ 1.0 | ≤ 1.5 |
| Insertion Loss (1310nm port) | dB | ≤ 1.2 | ≤ 1.2 | ||||
| Insertion Loss (UPG port) | dB | ≤ 1.52) | ≤ 1.72) | ≤ 1.62) | ≤ 2.02) | ||
| Isolation (Demux only) | dB | ≥ 30 (Adjacent) ≥ 40(Non-adjacent) | |||||
| Channel Ripple | dB | ≤ 0.5 | |||||
| Polarization Dependent Loss | dB | ≤ 0.2 | |||||
| Polarization Mode Dispersion | ps | ≤ 0.2 | |||||
| Directivity | dB | ≥ 55 | |||||
| Return Loss | dB | ≥ 45 | |||||
| Optical Power | mW | ≤ 300 | |||||
| Operating Temperature | °C | 0 to +70 (Extended temperatures are also available upon request) | |||||
| Storage Temperature | °C | – 40 to +85 | |||||
| Package Dimensions | mm | CS= 57×28.8×8.0 case (Single side) CD= 53.8x28x8.0 case (Dual side) | |||||
Note:
1) Add 1310nm port
2) UPG: port upgrade for future expansion
All values refenced are without connector.
