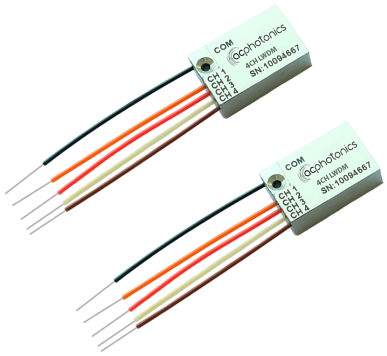

4通道LAN波分復用器
ACP的LAN波分復用器(LWDM)采用薄膜涂層技術和專有的非通量金屬鍵合微光學封裝設計。它具有低插入損耗，高通道隔離，寬通帶，低溫靈敏度和無環氧樹脂光路。
特性
Telcordia GR-1221和GR-1209合規性
超迷你尺寸
低插入損耗
高通道隔離
優異的溫度穩定性
無環氧樹脂光通
應用程序
CFP收發模塊優化包
局域網
WDM網絡
手機應用程序
產品規格
| Parameter | Unit | Mux/Demux |
|---|---|---|
| Operating Wavelength | nm | 1280 – 1 330 |
| Channel Spacing | GHz | 800 |
| Center Wavelength (CWL) | nm | 1295.56 (CH1) 1300.05 (CH2) 1304.58(CH3) 1309.14(CH4) |
| Channel Passband (@-0.5dB bandwidth) | nm | ≥ 1.03 |
| Insertion Loss | dB | ≤ 1.5 |
| Passband Ripple | dB | ≤ 0.50 |
| Channel Isolation | dB | ≥ 25 (Adjacent) ≥ 35(Non-adjacent) |
| Polarization Dependent Loss | dB | ≤ 0.20 |
| Polarization Mode Dispersion | ps | ≤ 0.20 |
| Directivity | dB | ≥ 50 |
| Return Loss | dB | ≥ 45 |
| Optical Power | mW | ≤ 300 |
| Operating Temperature | °C | -10 to +75 |
| Storage Temperature | °C | – 40 to +85 |
| Package Dimensions (LxWxH) | mm | A=20.0×12.4×6.4 |
All values referenced are without connector.
Customer channels are available upon request.
