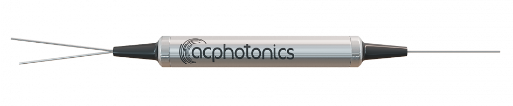

保偏濾波器耦合器
特性
低超額損失
各種耦合比
寬通帶
高穩定性和可靠性
無環氧光路
應用程序
光放大器
光纖網絡
光纖傳感器
電力監控

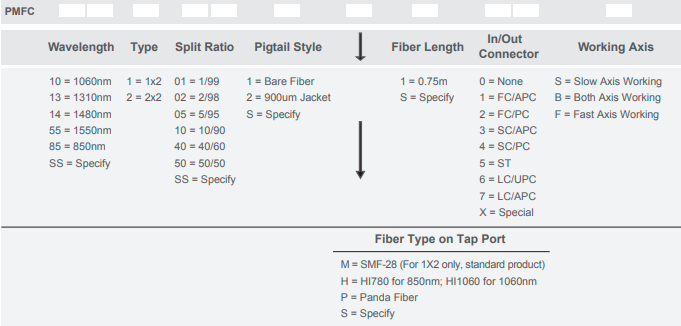

訂購參考信息
產品規格
| Parameter | Unit | Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | 1×2 | 2×2 | |||||||||||
| Operating Wavelength | nm | 1550±10 (1310, 1060 or Custom wavelength) | |||||||||||
| Coupling RatioTypical | 1:99 | 2:98 | 5:95 | 10:90 | 40:60 | 50:50 | 1:99 | 2:98 | 5:95 | 10:90 | 40:60 | 50:50 | |
| Insertion (Max.) (@1550nm)* | dB | 21/0.8 | 18/0.8 | 14/0.9 | 11.5/0.1 | 4.6/2.6 | 3.6 | 21/1.0 | 18/1.0 | 14/1.1 | 11.8/1.3 | 4.8/2.8 | 4.0 |
| Excess Loss | dB | ≤ 1.0 | |||||||||||
| Uniformity | dB | ≤ 0.80 | |||||||||||
| Extinction Ratio | dB | ≥ 18 (typ.20) | |||||||||||
| Return Loss | dB | ≥ 50 | |||||||||||
| Optical Power | mW | 300 | |||||||||||
| Tensile Load | N | ≤ 5 | |||||||||||
| Operating Temperature | °C | – 5 to +70 | |||||||||||
| Storage Temperature | °C | – 40 to +85 | |||||||||||
| Fiber Type | PM Panda fiber for In/Out or SMF – 28 for Tap Port All PM Panda fibe | ||||||||||||
| Package Dimensions | mm | 1×2 :[?5.5xL35 (L38 For 900um Jacket)] 2×2:[?5.5xL38 (L40 For 900um Jacket)] | |||||||||||
1. Connector keys are aligned to the slow axis.
2. ER value applies to fiber < 0.75m. Increased fiber length will decrease ER.
3. For each connector, IL will be 0.3dB higher, RL 5dB lower, and ER 2dB lower.
