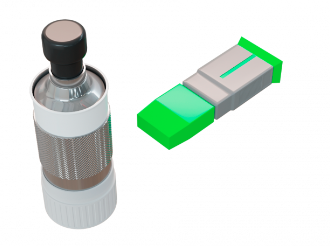

插頭式固定衰減器
特性
高精度衰減(P級±0.5dB)
低波長依賴性(0.5 dB類型)10dB, 1480~1620nm)
寬PGR-326端面幾何
高功率耐久性
應(yīng)用程序
有線電視
高壓電網(wǎng)
產(chǎn)品規(guī)格
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Grade | P | A | |
| Connector Type | FC, SC or LC | ||
| Polishing Type | PC or APC | ||
| Attenuation Level /Tolerance | dB | 1 ~ 9 / ± 0.1 10 ~ 20 / ± 0.5 | 1 ~ 9 / ± 0.5 10 ~ 20 / ± 1.0 |
| Back Reflection (BR) | dB | ≤ -50 (PC), ≤ -60 (APC) | ≤ -50 (PC), ≤ -60 (APC) |
| Polarization Dependent Loss | dB | 0.1 (Typ.) ≤ 0.5 (Max) | |
| Operating Temperature | °C | -20 ~ +70 | |
| Storage Temperature | °C | -40 ~ +85 | |
| Inspection Data | Attenuation and BR | ||
| Package Dimensions | mm | See the “Mechanical Dimensions” | |
