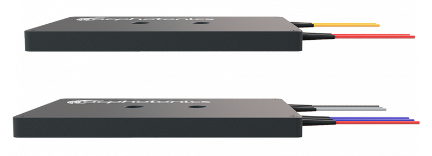

單通道和雙通道OADM
密集波分復用(DWDM)需要通過同一根光纖以多個緊密間隔的波長傳輸信號。ACP提供信道間隔為200ghz、100ghz或50GHz的dwdm;分別對應約1.6nm, 0.8nm, 0.4nm。
ACP的100/200 GHz 1通道和2通道OADM采用薄膜涂層技術和專有的非通量金屬鍵合微光學封裝設計，實現了ITU波長的光學添加和下降。它提供ITU通道中心波長、低插入損耗、高通道隔離、寬通帶、低溫靈敏度和無環氧樹脂光路。它可用于電信網絡系統中的波長加/減。
所有AC Photonics的產品都經過Telcordia認證測試。
特性
100/200GHz ITU信道間隔
低插入損耗
寬通帶
高通道隔離
高穩定性和可靠性
無環氧光路
應用程序
通道添加/刪除
DWDM網絡
波長路由
光纖放大器
有線電視光纖系統
產品規格
| Parameter | Unit | Specifications | |||
|---|---|---|---|---|---|
| Mux/Demux | |||||
| Center Wavelength | GHz Grid | 1530.33 – 1560.61 (21~ 59 ITU grid) | |||
| Minimum Channel Spacing | GHz | 100 | 200 | ||
| Center Wavelength Accuracy | nm | ± 0.05 | ± 0.1 | ||
| Number of Channels | 1 | 2 | 1 | 2 | |
| Channel Passband (@-0.5dB bandwidth) | nm | ≥ 0.22 | ≥ 0.5 | ||
| Insertion Loss (Add / Drop Ch. 1) | dB | ≤ 1.2 | ≤ 1.2 | ≤ 1.2 | ≤ 1.2 |
| Insertion Loss (Add / Drop Ch. 2) | dB | – | ≤ 1.5 | – | ≤ 1.5 |
| Insertion Loss (Express Ch.) | dB | ≤ 1.0 | ≤ 1.4 | ≤ 1.0 | ≤ 1.4 |
| Channel Uniformity | dB | ≤ 0.4 | ≤ 0.6 | ≤ 0.4 | ≤ 0.6 |
| Channel Isolation (Demux only) | dB | ≥ 25 (Adjacent) ≥ 35 (Non-adjacent) | ≥ 25 (Adjacent) ≥ 45 (Non-adjacent) | ≥ 25 (Adjacent) ≥ 35 (Non-adjacent) | ≥ 25 (Adjacent) ≥ 35 (Non-adjacent) |
| Channel Ripple | dB | ≤ 0.3 | |||
| Insertion Loss Temperature Sensitivity | dB/°C | ≤ 0.003 | |||
| Wavelength Temperature Shifting | nm/°C | ≤ 0.002 | |||
| Polarization Dependent Loss | dB | ≤ 0.1 | |||
| Polarization Mode Dispersion | ps | ≤ 0.1 | |||
| Directivity | dB | ≥ 50 | |||
| Return Loss | dB | ≥ 45 | |||
| Optical Power | mW | ≤ 300 | |||
| Operating Temperature | °C | 0 to +70 (Extended temperatures are also available upon request) | |||
| Storage Temperature | °C | – 40 to +85 | |||
| Package Dimensions (LxWxH) | mm | S= 89x51x8.0 Case | |||
All values refenced are without connector.
