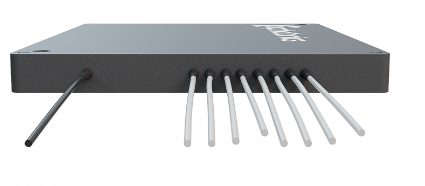

100GHz密集波分復用器
密集波分復用(DWDM)需要通過同一根光纖以多個緊密間隔的波長傳輸信號。ACP提供信道間隔為200ghz、100ghz或50GHz的dwdm;分別對應約1.6nm, 0.8nm, 0.4nm。
ACP的100 GHz密集波分復用器(DWDM)利用薄膜涂層技術和專有的非通量金屬鍵合微光學封裝設計，實現了國際電聯波長的光增益和下降。它提供ITU通道中心波長、低插入損耗、高通道隔離、寬通帶、低溫靈敏度和無環氧樹脂光路。它可用于電信網絡系統中的波長加/減。
所有AC Photonics的產品都經過Telcordia認證測試。
特性
100GHz ITU信道間隔
低插入損耗
寬通帶
高通道隔離
高穩定性和可靠性
無環氧光路
應用程序
通道添加/刪除
DWDM網絡
波長路由
光纖放大器
有線電視光纖系統
產品規格
| Parameter | Unit | Specifications | |||
|---|---|---|---|---|---|
| Mux/Demux | |||||
| Channel Wavelength | GHz Grid | ITU 100 | |||
| Minimum Channel Spacing | GHz | 100 | |||
| Center Wavelength Accuracy | nm | ± 0.05 | |||
| Channel Passband (@-0.5dB bandwidth) | nm | ≥ 0.22 | |||
| 1310nm Express Channel Wavelength | nm | 1260 to 1360 | |||
| UPG Channel Wavelength | nm | 1528 to 1563 (except drop channels) | |||
| Max. Insertion Loss (COM to Ch. and COM to UPG) | dB | Option: U01) 4ch: 1.8 8ch: 3.2 16ch: 4.2 32ch: 5.4 40ch: 6.0 | Option: U12) 4ch: 1.9 8ch: 3.3 16ch: 4.3 32ch: 5.5 40ch: 6.1 | Option: U2/U43) 4ch: 2.1 8ch: 3.5 16ch: 4.5 32ch: 5.7 40ch: 6.2 | Option: U3/U54) 4ch: 2.2 8ch: 3.6 16ch: 4.6 32ch: 5.8 40ch: 6.4 |
| 1% TAP Port Loss | dB | 20.4 | |||
| 1310nm Express Port Loss | dB | ≤1.4 | |||
| Channel Uniformity | dB | 4ch: ≤0.6 8ch: ≤1.0 16ch: ≤1.5 32ch: ≤2.0 40ch: ≤2.2 | |||
| Channel Ripple | dB | ≤ 0.3 | |||
| Channel Isolation (Demux only) | dB | ≥ 25 (Adjacent) ≥ 35(Non-adjacent) | |||
| Insertion Loss Temperature Sensitivity | dB/°C | 4/8ch: ≤ 0.005 16/32/40ch: ≤ 0.01 | |||
| Wavelength Temperature Shifting | nm/°C | ≤ 0.002 | |||
| Polarization Dependent Loss | dB | 4/8ch: ≤ 0.10 16/32/40ch: ≤ 0.15 | |||
| Polarization Mode Dispersion | ps | ≤ 0.1 | |||
| Directivity | dB | ≥ 50 | |||
| Return Loss | dB | ≥ 45 | |||
| Optical Power | mW | ≤ 300 | |||
| Operating Temperature | °C | 0 to +70 (Extended temperatures are also available upon request) | |||
| Storage Temperature | °C | – 40 to +85 | |||
| Package Dimensions (LxWxH) | mm | S= 89x51x8.0 case (4 Ch) F= 96x78x8 case (4/8 Ch) G=96x78x13 case (16 Ch) H=96x78x16 case (32/40/48 Ch) L1=Single LGX Box (4/8 Ch, Maximum 16 Ch with LC) L2=Double LGX Box R1=19” Rack (1RU) | |||
注意：
1) U0: UPG (Upgrade) port
2) U1: 1% Tap + UPG port
3) U2: 1310nm port U4: 1310nm + UPG port
4) U3: 1310nm + 1% Tap port U5: 1310nm + UPG +1% Tap port
All values refenced are without connector.
