模擬信號處理由以下的部分組成直流隔離放大器，電源隔離放大器，交流隔離放大器，直流隔離轉換器和隔離變送器，交流隔離轉換器和隔離變送器，限位開關，設定點編碼器，模擬計算器，負載放大器。
直流信號隔離放大器

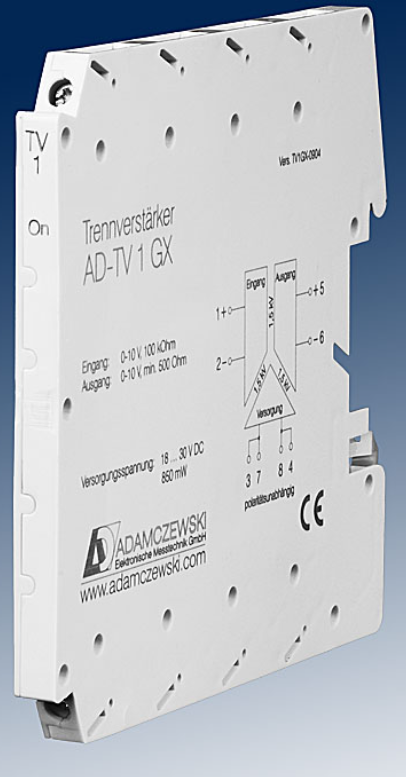

AD-TV 1 GX
產品介紹
直流隔離放結構寬度僅為 6.2 mm，用于直流電壓信號的電流隔離。輸出信號與輸入變量呈線性關系，并且在達到極限值時與連接的負載無關（0-10 VDC，1:1 輸入/輸出）。由于狹窄的設計，實現了高密度封裝。與 DIN 導軌連接器結合使用，可大大減少接線。
數據參數

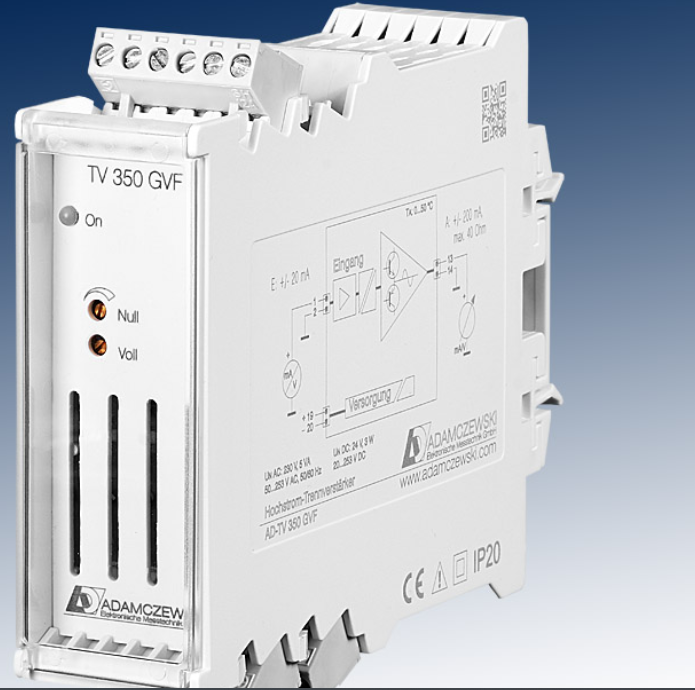

AD-TV 350 GVF
產品介紹
雙極大電流隔離放大器AD-TV 350 GVF用于雙極電流或電壓信號的電流隔離、轉換和放大。該設備允許傳輸高達高頻范圍的直流和交流信號。高電流輸出可提供高達 200 mA 的電流。由于集成的三路隔離，輸入、輸出和電源電壓彼此之間高度電氣隔離。 AD-TV 350 GVF 的高效寬范圍電源允許在寬電源電壓范圍內運行。
產品參數
| Input current | |
|---|---|
| Measuring range | +/- 20 mA |
| Input resistance | Ca. 25 Ohm |
| Input voltage | |
| Measuring range | +/- 10 V |
| Input resistance | Ca. 100 kOhm |
| Output current | |
| Output range | +/- 200 mA |
| Max. burden | 40 Ohm @ 200 mA |
| Residual ripple | 300 μAss @ 200 mA |
| Output voltage | |
| Output range | +/- 10 V |
| Min. burden | 100 Ohm @ 10 V |
| Residual ripple | 40 mVss @ 10 V |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption AC / DC | 5 VA / 3 W |
| Transmission behaviour | |
| Basic accuracy | < 0,2 % |
| Temperature influence | 70 ppm/K |
| Cut-off frequency | Ca. 1,5 kHz (-3 dB) |
| Phase shift I/O | Ca. 7,5 ° |
| Power-on drift | Ca. 0,1 % |
| Housing | |
| Dimensions (WxHxD) | 33x110x134 mm |
| Type of protection | IP 20 |
| Connection method | Detachable terminal clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 200 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1?1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Signal / supply unit | 3 kV, 50 Hz (1 min.) |
| Input / output | 2,5 kV, 50 Hz (1 min.) |
| Protection circuits | |
| Input | Electrical surge protection |
| Output | Electrical surge protection |
| Power supply | Electrical surge and reverse current protection |

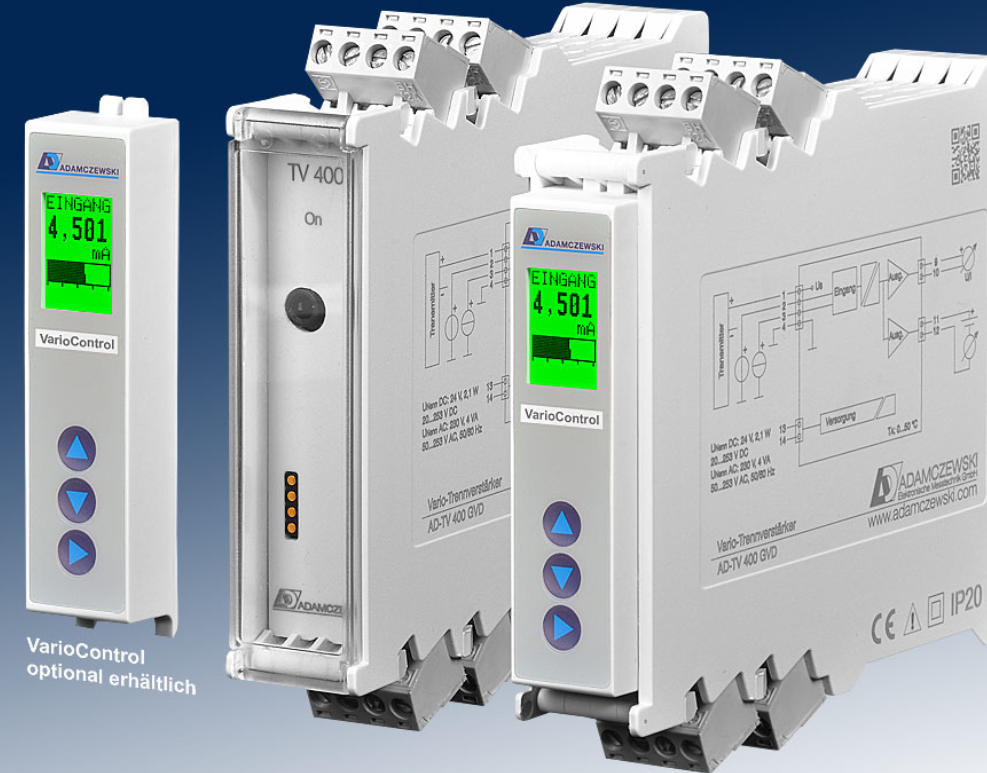

AD-TV 400 GVD
產品介紹
用于模擬信號和發射機信號的電流隔離。當連接 2 線制變送器時，將通過電流隔離且限流的電源電壓直接供電。所有測量范圍和輸出均可自由參數化。這可以通過可選的操作面板 AD-VarioControl 或編程軟件 AD-Studio 來執行。寬雙極輸入測量范圍使該緩沖放大器成為通用型，適用于標準信號及其他領域的幾乎所有應用。由于其灌電流輸出，發射器信號也可以被分離或轉換。寬范圍電源組涵蓋了所有電源范圍。
技術參數

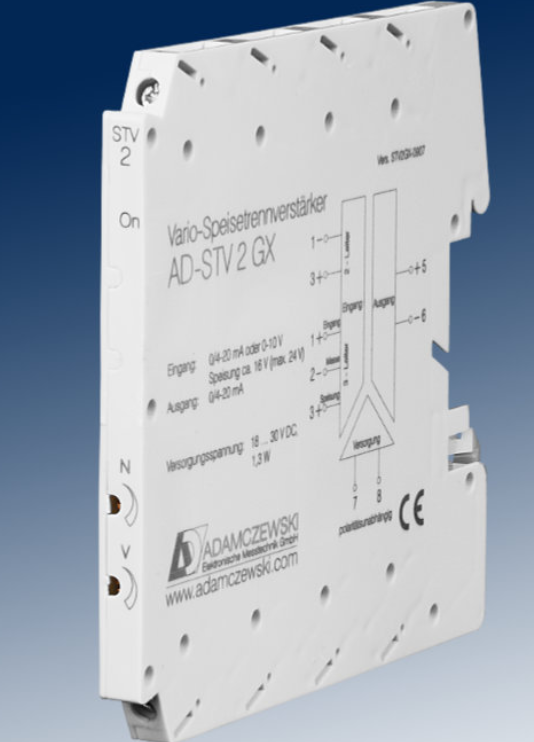

AD-STV 2 GX
產品介紹
寬度僅為 6.2 mm，用于發送器信號 (4-20 mA) 的電流隔離和放大。 2 線或 3 線制變送器直接由電隔離電源電壓供電。輸入信號可通過 DIP 開關選擇。切換測量范圍時需要手動重新調整，可以使用微調器設置起始值和終止值。輸入、輸出和電源電壓彼此電隔離。由于狹窄的設計，實現了高密度封裝。與 DIN 導軌連接器結合使用，可大大減少接線工作。
技術參數
| Input voltage | |
|---|---|
| Measuring range | 0 … 10 V |
| Input resistance | 100 kOhm |
| Input current | |
| Measuring range | 0 … 20 mA; 4 … 20 mA |
| Input resistance | 50 Ohm |
| Transmitter supply | |
| Open-circuit voltage | < 20 V |
| At 20 mA | > 14 V |
| Current limit | < 30 mA |
| Output current | |
| Output range | 0 … 20 mA; 4 … 20 mA |
| Max. burden | 350 Ohm |
| Residual ripple | < 0,1 % |
| Transmission behaviour | |
| Response time | < 50 ms (10-90 %) |
| Linearity error | < 0,1 % |
| Temperature influence | < 70 ppm/K |
| Adjust begin | +/- 22% |
| Adjust end | +/- 5% |
| Supply | |
| Voltage range | 18 … 30 V DC |
| Nominal voltage | 24 V DC |
| Power consumption | 1,3 W |
| Housing | |
| Dimensions (WxHxD) | 6,2 x 92 x 101 mm3 |
| Manner of fastening | DIN rail 35mm EN 50022 |
| Type of protection | IP 20 |
| Connection method | Screw clamp (2,5 mm2 flex wire / 4 mm2 one wire) |
| Weight | ~ 70 g |
| Bolting torque terminals | 0,5 Nm |
| Environmental conditions | |
| Ambient temperature | -10 … +50 °C |
| Storage and transport | -10 … +70 °C (no condensation) |
| EMC | |
| Product family standard?1) | EN 61326-1 |
| Emission?2) | EN 55011, CISPR11 Cl. A, Gr. 1 |
| 1)?During electromagnetic disturbance minor changes in output signal are possible. | |
| 2)?Warning: This device is not intended to be used in residential areas and can not ensure adequate protection of radio reception in such environments. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Input/output | 1,5 kV, 1 min |
| Signal/auxiliary voltage | 1,5 kV, 1 min |

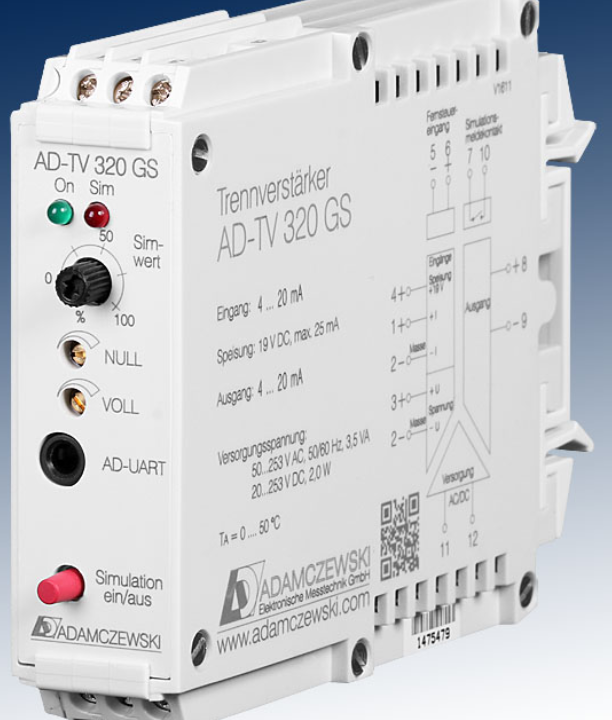

AD-TV 320 GS
產品介紹
設定值緩沖放大器? 用于直流電流和電壓信號（0/4-20mA 或 0/2-10V）的電流分離、轉換和放大。該設備還具有發射器電源和設定值功能，可以打開。設定值功能的激活可以通過短按前面的按鍵或通過遠程控制輸入處的控制信號（24V 有效或接觸）來選擇。任何輸出設定值均由前面的電位器設定。長時間按下設定值鍵可以激活零微調器和全微調器。這樣，信號幅度可在±25%的范圍內調節。一體式電子寬范圍電源組允許在寬供電范圍內運行。
產品參數
| Transmitter supply | |
|---|---|
| Feeding voltage | 26 … 19 V (4 … 20 mA) |
| Current limit | ~ 25 mA |
| Input current | |
| Measuring range | 0 … 20 mA?1) |
| Input resistance | 50 Ohm |
| Input voltage | |
| Measuring range | 0 … 10 V?1) |
| Input resistance | 100 kOhm (10 kOhm / Volt) |
| Output current | |
| Output range | 0 … 20 mA?1) |
| Max. burden | 500 Ohm |
| Max. residual ripple | 40 μAss |
| Output voltage | |
| Output range | 0 … 10 V?1) |
| Min. burden | 1 kOhm |
| Max. residual ripple | 20 mVss |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Input power AC/DC | 3,5 VA / 2,0 W |
| Transmission behaviour | |
| Basic accuracy | < 0,2 % |
| Temperature influence | 100 ppm/K |
| Response time | 50 ms |
| Damping (optional) | 0,1 %/s (linear max. ~950 s) |
| Trimmer function | +/- 25% |
| Linearization (optional) | 24 x/y, interpoliert |
| Setpoint encoder | 0 … 270° = 0 … 100 % |
| Remote control | |
| Input | Optokoppler |
| Voltage | 10 … 30 V DC |
| Pulse controlled | 200 … 1000 ms |
| Static | > 1000 ms |
| Front button | ~ 200 ms |
| Housing | |
| Dimensions (WxHxD) | 23x78x103 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 100 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1?2) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Input / output | 1,5 kV, 50 Hz (1 min.) |
| Signal / supply unit | 3 kV, 50 Hz (1 min.) |
| Protection circuits | |
| Input | Electrical surge protection |
| Output | Electrical surge protection |
| Power supply | Protection against overvoltage reverse polarity |
交流隔離放大器

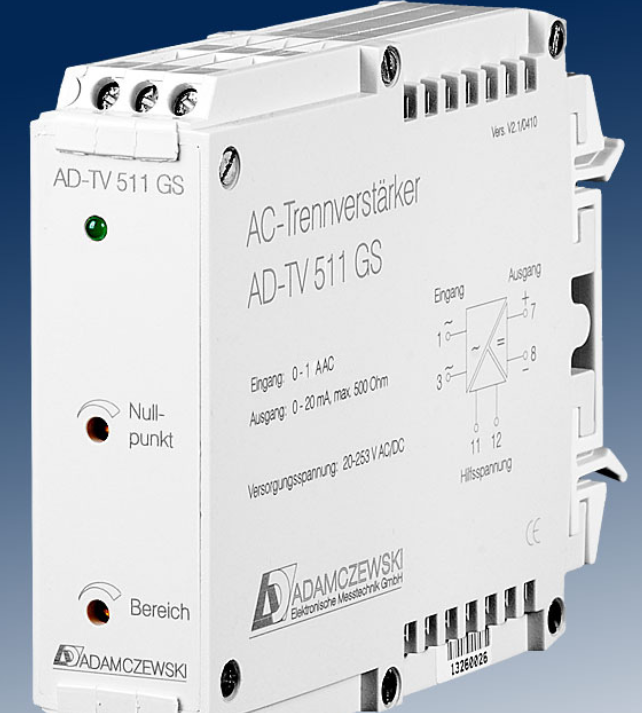

AD-TV 515 GS
產品介紹
可記錄 0-1A AC 和 0-5A AC 的正弦波交流電。交流電經過電流隔離并轉換為外加 OC 標準信號。交流電（1 A 或 5 A）通過大電流連接器提供給設備，因此外部分流器已被淘汰。為了測量更大的電流，可以隨時連接電流互感器。輸出信號被放大并且與所連接的負載無關，最高可達最大值。信號可以通過正面微調器適應應用。
產品參數
| Input | |
|---|---|
| Measuring range | 0 … 1 A AC / 0 … 5 A AC |
| Input frequency | 40 … 60 Hz (sinusoidal) |
| Short-term overload (1 s) | Twenty times of the nominal value |
| Permanent overload (24 h) | 120 % of the rated value |
| Output current | |
| Max. output range | 0/4 … 20 mA?1) |
| Max. burden | 400 Ohm |
| Residual ripple | 50 μAss |
| Output voltage | |
| Max. output range | 0 .. 10 V?1) |
| Min. burden | 1 kOhm |
| Residual ripple | 30 mVss |
| Transmission behaviour | |
| Linearity error | Max. 0,5 % of full scale |
| Rise time (10 … 90%) | Ca. 2 s |
| Temperature influence | +/- 100 ppm/K |
| Supply | |
| Supply voltage | 20 … 253 V DC / 50 … 253 V AC |
| Max. power consumption | 1,7 W / 3,5 VA |
| Housing | |
| Manner of fastening | DIN rail 35mm (EN 50022) |
| Type of protection | IP 20 |
| Connector cross section | Max. 2,5 mm2 |
| Bolting torque screw terminals | 0,5 Nm |
| Weight | Ca. 110 g |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 60 °C |
| EMC | |
| Product family standard | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Elevation | Max. 2000 m |
| Safety measurement | EN 61010-2-030 |
| Measurement category | CAT III |
| Max. permanent working voltage | 300 V AC |
| Galvanic isolation, test voltages | |
| Input/output | 4 kV (1 min) |
| Input/power-supply | 4 kV (1 min) |
| Output/power-supply | 3 kV (1 min) |

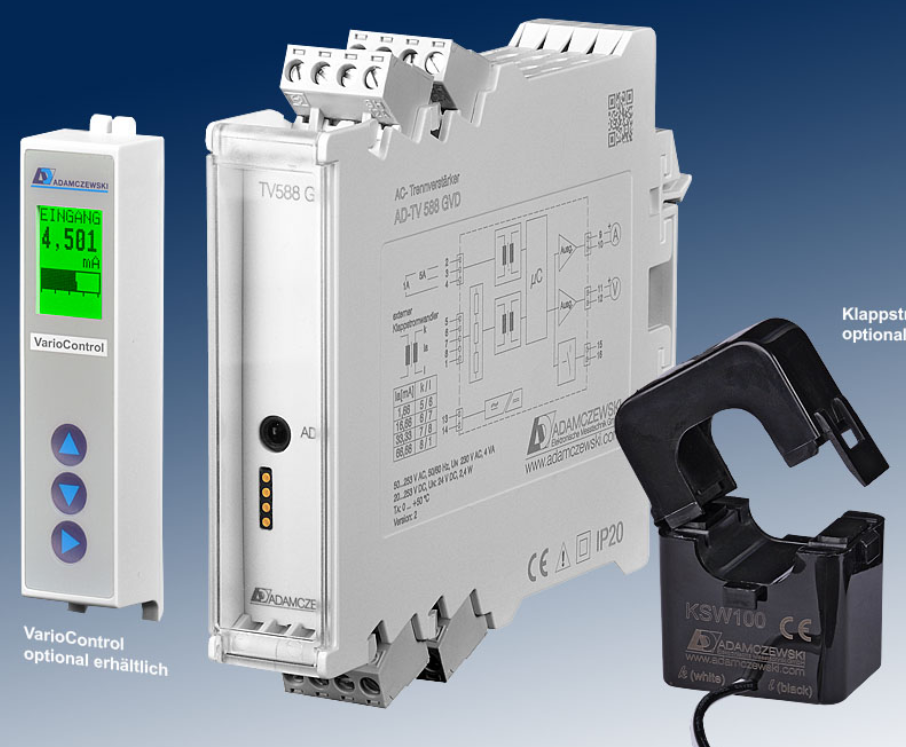

AD-TV 588 GVD
產品介紹
用于通過高達 5A 的內置電流互感器或高達 600A 的外部鉗位/分芯電流互感器測量交流電的有效值。檢測到的電流以 0 至 20 mA 范圍內的電隔離標準電流信號和 0 至 10 V 范圍內的標準電壓信號輸出。附加的繼電器輸出可以指示極限值或窗口。所有參數如量程、輸出范圍、繼電器功能、極限值等均可通過配置軟件自由設置。
產品參數
| Input current directly | |
|---|---|
| Measuring range 1 A | 0 … 1 A AC |
| Measuring range 5 A | 0 … 5 A AC |
| Remark | DO NOT CONFUSE THE INPUT OF THE CLAMP ON CURRENT TRANSFORMER. |
| Current input via Clamp on Current Transformer | |
| Measuring range, Re, Terminals | 0 … 1,66 mA AC, 200 Ohm, 5/6 |
| Measuring range, Re, Terminals | 0 … 16,6 mA AC, 20 Ohm, 6/7 |
| Measuring range, Re, Terminals | 0 … 33,3 mA AC, 10 Ohm, 7/8 (alle AD-KSW XXX) |
| Measuring range, Re, Terminals | 0 … 66,6 mA AC, 5 Ohm, 8/1 |
| All current inputs | |
| Rated frequency | 50 Hz |
| Frequency range | 40 … 400 Hz |
| Sampling | 2 kHz |
| All signal outputs | |
| Simultaneous use | Yes. Minus (terminals 10/12) may not be connected. |
| Bit width D/A converter (PWM) | 11 Bit |
| Output current | |
| Maximum output range | 0 … 20 mA |
| Resolution | ~10 uA |
| Max. burden | 500 Ohm |
| Output voltage | |
| Maximum output range | 0 … 10 V |
| Resolution | ~5 mV |
| Min. burden | 1 kOhm |
| Relay output | |
| Maximum switching load AC | 250 V, 2 A |
| Maximum switching load DC | 50 V, 2 A |
| Contact construction | Closing contact |
| Switching operations mechanical | 10.000.000 |
| At 230V/2A AC, cos(phi)=1 | 600.000 |
| At 230V/2A AC, cos(phi)=0,4 | 200.000 |
| At 24V/1 A DC | 200.000 |
| Transmission behaviour | |
| Maximum linearity error | 0,5 % of full scale |
| Rise time 0..90% | 200 ms |
| Temperature influence | +/- 100 ppm/K |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption AC / DC | 3 VA / 1,5 W |
| Housing | |
| Dimensions (WxHxD) | 23x110x134 mm |
| With operating module (bxhxt) | 23x110x138 mm |
| Manner of fastening | DIN rail 35mm (EN 50022) |
| Type of protection | IP 20 |
| Connector cross section | Max. 2,5 mm2 |
| Bolting torque screw terminals | 0,5 Nm |
| Weight | ~120 g |
| Environmental conditions | |
| Operation | -10 … 50 °C |
| Storage, transport | -10 … 60 °C |
| EMC | |
| Product family standard | EN 61326-1?1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| Input/output | 4 kV, 1 min |
| Input, output/supply | 4 kV, 1 min |
| Notifications | |
| Operation | Green LED. Blinks when signal outside range |
| Relay | Red LED. Lit when relay is energized |
直流隔離轉換器和隔離變送器

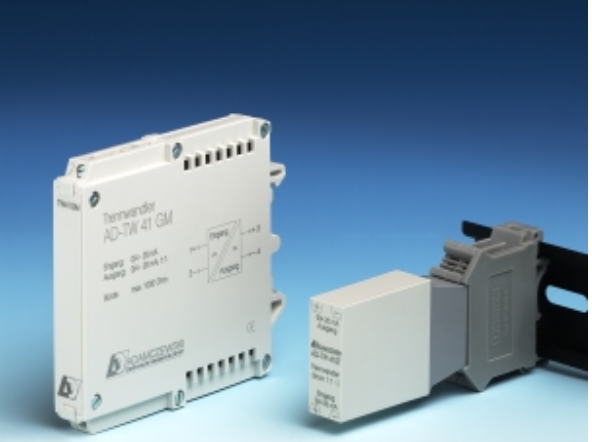

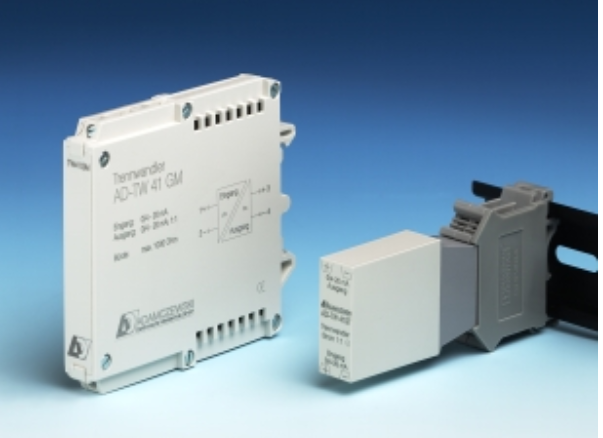

AD-TW 41 GM , AD-TW 41 ST
產品介紹
分離轉換器用于外加電流的電流分離。它從輸入信號中獲取輔助能量。不需要連接額外的輔助電壓。輸出電流在最大值范圍內與所連接的負載無關。隔離變壓器還提供 TWB 型號，如果其輸出電流中斷（旁路功能），則不會中斷輸入電流。
產品參數
| Input current | |
|---|---|
| Measuring range | 0 … 20 mA |
| Input voltage | < 25 V |
| Voltage drop device | < 2,5 V |
| Output current | |
| Output range | 0 … 20 mA |
| Max. burden | 1000 Ohm |
| Burden error | -0,03% / 100 Ohm |
| Residual ripple | 0,5 % (1000 Ohm; 20 mA) |
| Transmission behaviour | |
| Basic accuracy | < 0,2 % |
| Input / output | 1 : 1 |
| Temperature influence | 50 ppm/K |
| Response time | ~ 20 ms |
| Transmission frequency | 500 Hz (500 Ohm) |
| Housing GM | |
| Dimensions (WxHxD) | 15×42,5×102 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 60 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Housing ST | |
| Dimensions (WxHxD) | 15×42,5×102 mm |
| Type of protection | IP 20 |
| Pluggable | |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 50 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1?1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Galvanic isolation | |
| Base isolation, functional separation | |
| Working voltage | 50 VDC |
| Test voltages input / output | 500 V, 50 Hz (1 min.) |
| Protection circuits | |
| Input | Electrical surge protection |
| Output | Electrical surge protection |
AD-TW 41 GM , AD-TW 41 ST
產品介紹
分離轉換器用于外加電流的電流分離。它從輸入信號中獲取輔助能量。不需要連接額外的輔助電壓。輸出電流在最大值范圍內與所連接的負載無關。隔離變壓器還提供 TWB 型號，如果其輸出電流中斷（旁路功能），則不會中斷輸入電流。
產品參數
| Input current | |
|---|---|
| Measuring range | 0 … 20 mA |
| Input voltage | < 25 V |
| Voltage drop device | < 2,5 V |
| Output current | |
| Output range | 0 … 20 mA |
| Max. burden | 1000 Ohm |
| Burden error | -0,03% / 100 Ohm |
| Residual ripple | 0,5 % (1000 Ohm; 20 mA) |
| Transmission behaviour | |
| Basic accuracy | < 0,2 % |
| Input / output | 1 : 1 |
| Temperature influence | 50 ppm/K |
| Response time | ~ 20 ms |
| Transmission frequency | 500 Hz (500 Ohm) |
| Housing GM | |
| Dimensions (WxHxD) | 15×42,5×102 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 60 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Housing ST | |
| Dimensions (WxHxD) | 15×42,5×102 mm |
| Type of protection | IP 20 |
| Pluggable | |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 50 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1?1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Galvanic isolation | |
| Base isolation, functional separation | |
| Working voltage | 50 VDC |
| Test voltages input / output | 500 V, 50 Hz (1 min.) |
| Protection circuits | |
| Input | Electrical surge protection |
| Output | Electrical surge protection |
交流隔離轉換器和隔離變送器

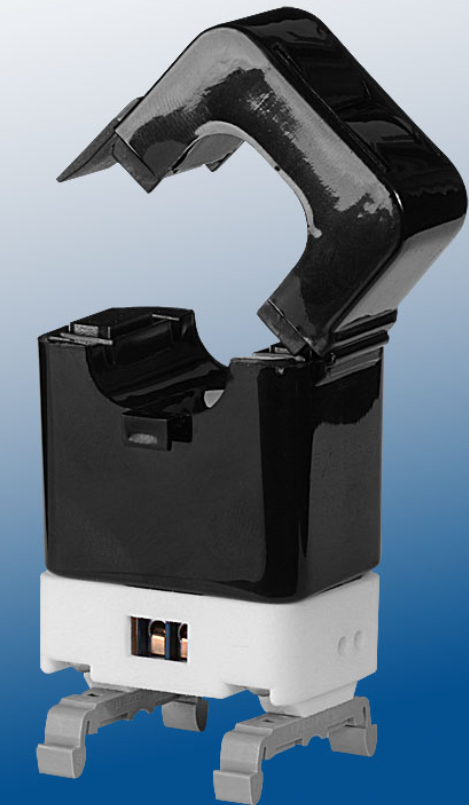

SWT 系列設備
產品介紹
SWT 系列設備（AD-SWT 50 SO、AD-SWT 100 SO 和 AD-SWT 200 SO）用于測量大正弦電流并同時轉換為 4…20 mA 發射器信號。該器件采用兩線技術設計，可在較寬的電壓范圍內運行。根據初級電流量，設備從連接的電源電壓中吸收成比例的 4…20 mA 信號。由于針對極化錯誤和過電壓的整體保護，發射器還可以防止錯誤應用或瞬態過電壓。外殼采用外部夾式變壓器形式設計，因此可以輕松集成到現有裝置中。
產品參數
| Primary current | |
|---|---|
| Measurement method | Inductive |
| Measuring range | 0 … 50/100/200 A AC |
| Max. conductor diameter | 23 mm |
| Transmitter output | |
| Output range | 4 … 20 mA |
| Residual ripple | 50 μAss |
| Transmitter-supply | |
| Voltage range DC | 10 … 30 V DC |
| Nominal voltage DC | 24 V DC |
| Transmission behaviour | |
| Basic accuracy | < 1 % |
| Temperature influence | 100 ppm/K |
| Response time | < 2 s (10…90 %) |
| Housing | |
| Dimensions (WxHxD) | 50x42x82 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 1,5 mm2 flex wire / 2,5 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 200 g |
| Manner of fastening | Folding transducer housing |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1?1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Safety measurement | 61010-2-030 |
| Measurement category | CAT III |
| Galvanic isolation, test voltages | |
| Input / output | 4 kV, 50 Hz (1 min.) |
| Protection circuits | |
| Output | Electrical surge and reverse current protection |

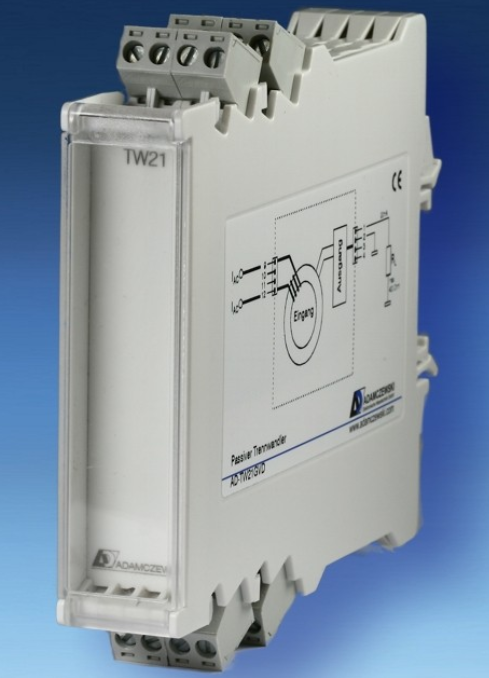

AD-TW 21 GVD, AD-TW 25 GVD
產品介紹
無源交流電流分離傳感器可將 0-1 A AC 或 0-5 A AC 的交流電流轉換為 0-20 mA 的外加直流電流。電流分離的輸出信號在最大值范圍內與連接的負載無關。分離傳感器不需要輔助能量，所需的能量從測量信號中獲得。
產品參數
| Input current | |
|---|---|
| AD-TW 21 GVD | 0 … 1 A AC (50Hz Sinus) |
| AD-TW 25 GVD | 0 … 5 A AC (50Hz Sinus) |
| Output current | |
| Max. output range | 0 … 20 mA |
| Max. burden | 400 Ohm |
| Load influence | -0,12% / 100 Ohm |
| Transmission behaviour | |
| Basic accuracy | < 0,3 % of full scale |
| Temperature influence | < 30 ppm/K |
| Response time | < 0,5s (0 … 90 %) |
| Supply | |
| Passive, no power supply required! | |
| Self-consumption via input signal | ~ 1,6 VA |
| Housing | |
| Manner of fastening | DIN rail 35mm (EN 50022) |
| Type of protection | IP 20 |
| Connector cross section | Max. 2,5 mm2 |
| Weight | ~ 285 g |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard?2) | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| 2)?During electromagnetic disturbance minor changes in output signal are possible. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Signal/auxiliary voltage | 2 kV (1 min) |
| Protective systems | |
| Input/output | Over voltage and over current |

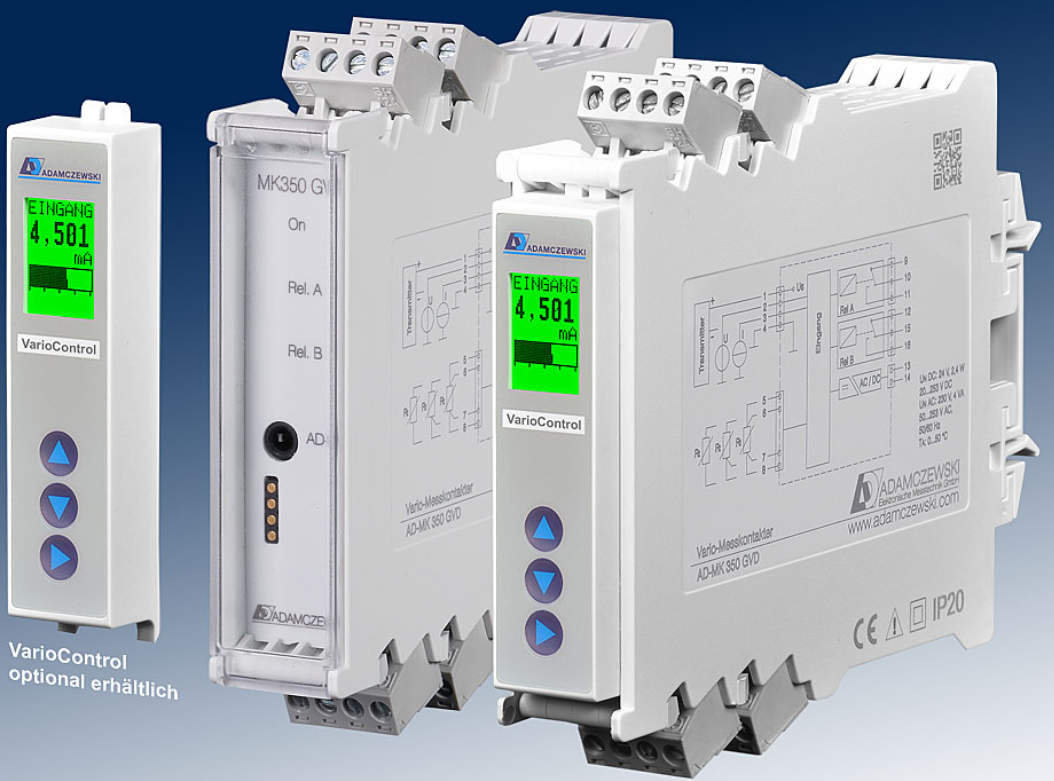

限位開關
AD-MK 350 GVD
產品介紹
限位開關 用于切換模擬信號、變送器信號和電阻溫度計的限值。如果連接了 2 線制變送器，則將直接通過電流隔離且限流的電源電壓為其供電。該器件具有電流、電壓和電阻溫度計的模擬輸入，可以交替使用。 AD-MK 350 GVD 可以通過其兩個無源轉換觸點最多切換兩個獨立的極限值。開關閾值和操作模式可以自由參數化。這可以通過可選的控制面板 AD-VarioControl 或編程軟件 AD-Studio 來執行。相關繼電器的狀態通過前面或操作模塊 AD-VarioControl 上的 LED 指示。
產品參數
| Input current | |
|---|---|
| Measuring range | -50 … + 50 mA DC |
| Input resistance | 40 Ohm |
| Resolution | 16 Bit |
| Accuracy | 0,1 % of full scale |
| Input voltage | |
| Measuring range | -100 … + 100 V DC |
| Input resistance | 1 MOhm |
| Resolution | 16 Bit |
| Accuracy | 0,1 % of full scale |
| Transmitter supply | |
| Off-load voltage | 24,5 V |
| Voltage at 20mA | 17,5 V |
| Current limit | ~ 25 mA |
| Resistance thermometer inputs Pt100, Pt500, Pt1000 to DIN EN 60751 | |
| Measuring range | -200 … +850 °C |
| Connection method | 2-, 3- oder 4-wire system |
| Resolution | 16 Bit |
| Accuracy | 0,6 K |
| Smallest measuring spans | 20 K |
| Max line resistance?1) | 10 Ohm/cable |
| Sensor supply | 310 μA |
| 1)?With 2-conductor the line resistance comes as an offset into the measurement. | |
| Resistance thermometer inputs Ni100, Ni500, Ni1000 to DIN EN 43760 | |
| Measuring range | -60 … +230 °C |
| Connection method | 2-, 3- oder 4-wire system |
| Resolution | 16 Bit |
| Accuracy | 0,6 K |
| Smallest measuring spans | 20 K |
| Max line resistance?1) | 10 Ohm/cable |
| Sensor supply | 310 μA |
| 1)?With 2-conductor the line resistance comes as an offset into the measurement. | |
| Relay outputs A/B | |
| Contact type | Potential free changeover |
| Max. AC-breaking capacity | 250 V AC, 2 A AC, 50Hz |
| Max. DC-breaking capacity | 50 V DC, 2 A DC |
| Switching operations | |
| Mechanical | 107 |
| AC: 230V / 2A, cos(phi)=1 | 6 * 105 |
| AC: 230V / 2A, cos(phi)=0,4 | 2 * 105 |
| DC: 24V / 1A | 2 * 105 |
| Transmission behaviour | |
| Rise time | 500 ms (output auf 90 %) |
| Temperature influence | +/- 100 ppm/K of full scale |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption AC / DC | 4 VA / 2,4 W |
| Housing | |
| Dimensions (WxHxD) | 23x110x134 mm |
| With operating module (bxhxt) | 23x110x138 mm |
| Type of protection | IP 20 |
| Connection method | Detachable terminal clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 150 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard?1) | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| 1)During electromagnetic disturbance minor changes in output signal are possible. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Input/output | 2,5 kV (1 min) |
| Signal/auxiliary voltage | 3 kV (1 min) |
VarioCheck AD-VC 4S FE 系列
產品介紹
數字多功能測量變壓器是可自由編程的數字測量變壓器，具有兩個模擬輸出和最多 4 個極限值繼電器。廣泛的標準設備和附加選項可以解決現代評估的幾乎所有可以想象的任務。所有特性直接在設備上輸入，或使用配置軟件“AD-Studio”。 VarioCheck AD-VC 4S 通過集成功能模塊完成通用且安全的測量值記錄的所有任務，例如極限值消息、可自由調節的遲滯、可選擇的繼電器功能、延時開關、自動或手動模擬模式、自由線性化曲線和電源電壓范圍寬。
產品參數
| Input current | |
|---|---|
| Measuring range | 0 … + 20 mA |
| Accuracy | ~ 21 μA |
| Input resistance | 54 Ohm |
| Voltage input 10V | |
| Measuring range | -10 … + 10 V |
| Accuracy | ~ 21 mV |
| Input resistance | 100 kOhm |
| Voltage input 5V | |
| Measuring range | -5 … + 5 V |
| Accuracy | ~ 11 mV |
| Input resistance | 100 kOhm |
| Voltage input 1V | |
| Measuring range | -1 … + 1 V |
| Accuracy | ~ 2,5 mV |
| Input resistance | 100 kOhm |
| Voltage input 100mV | |
| Measuring range | -100 … + 100 mV |
| Accuracy | ~ 0,3 mV |
| Input resistance | 100 kOhm |
| Potentiometer input | |
| Connection method | 3-wire system |
| Max. Resistance | 100 Ohm … 10 kOhm |
| Transmitter supply | |
| Off-load voltage | ~ 23 V |
| Voltage at 20mA | ~ 21 V |
| Current limit | ~ 50 mA |
| Output current | |
| Max. output range | 0 … 20 mA |
| Accuracy | ~ 20 μA |
| Max. burden | 500 Ohm |
| Residual ripple | 20 μAss |
| Output voltage | |
| Variants | R2, R4 |
| Max. output range | 0 … 10 V |
| Accuracy | ~ 10 mV |
| Min. burden | 10 kOhm |
| Residual ripple | 10 mVss |
| Resolution | |
| Input | 10 bit |
| Output | 10 bit |
| Relay outputs A…D | |
| Contacts R2 / R4 | 2 changeover contact / 4 changeover contact |
| Max. AC-breaking capacity | 250 V AC, 2 A AC, 50Hz |
| Max. DC-breaking capacity | 50 V DC, 2 A DC |
| Switching operations | |
| Mechanical | 107 |
| AC: 230V / 2A, cos(phi)=1 | 6 * 105 |
| AC: 230V / 2A, cos(phi)=0,4 | 2 * 105 |
| DC: 24V / 1A | 2 * 105 |
| DC: 24V / 1A | 2 * 105 |
| Display | |
| Graphic-LCD | 122×32 Pixel, background lit |
| Digital display | 5-digit, can be configured |
| Display function | Scaled input signal, input signal, output, limits, scaled dimension as quasi analogue bar, scaling unit |
| Transmission behaviour | |
| Linearity error | < 0,2 % of full scale |
| Rise time | 100 ms (output at 90 %) |
| Temperature influence | +/- 100 ppm/K of full scale |
| Supply | |
| Supply voltage | 20 … 253 V DC / 50 … 253 V AC |
| Max. power consumption | 2,6 W / 5 VA |
| Housing | |
| Manner of fastening | Panel-mount-case (DIN 43 700) |
| Dimensions front | IP 65 |
| Type of protection housing | IP 20 |
| Connector cross section | 1,0 mm2 Strand with wire end ferrule / 1,5 mm2 one wire |
| Connector cross section supply | Max. 2,5 mm2 |
| Weight | ~ 320 g |
| Front panel cut out | 92 x 44 mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard?1) | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| 1)During electromagnetic disturbance minor changes in output signal are possible. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| Input/output | 2,5 kV (1 min) |
| Signal/auxiliary voltage | 4 kV (1 min) |

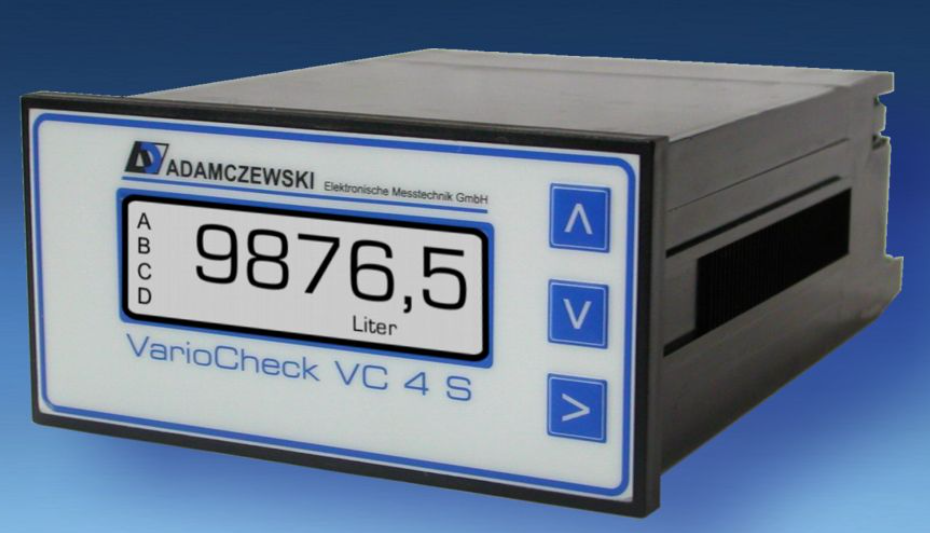

VarioCheck AD-VC 4S FE 系列
產品介紹
數字多功能測量變壓器是可自由編程的數字測量變壓器，具有兩個模擬輸出和最多 4 個極限值繼電器。廣泛的標準設備和附加選項可以解決現代評估的幾乎所有可以想象的任務。所有特性直接在設備上輸入，或使用配置軟件“AD-Studio”。 VarioCheck AD-VC 4S 通過集成功能模塊完成通用且安全的測量值記錄的所有任務，例如極限值消息、可自由調節的遲滯、可選擇的繼電器功能、延時開關、自動或手動模擬模式、自由線性化曲線和電源電壓范圍寬。
產品參數
設定點編碼器

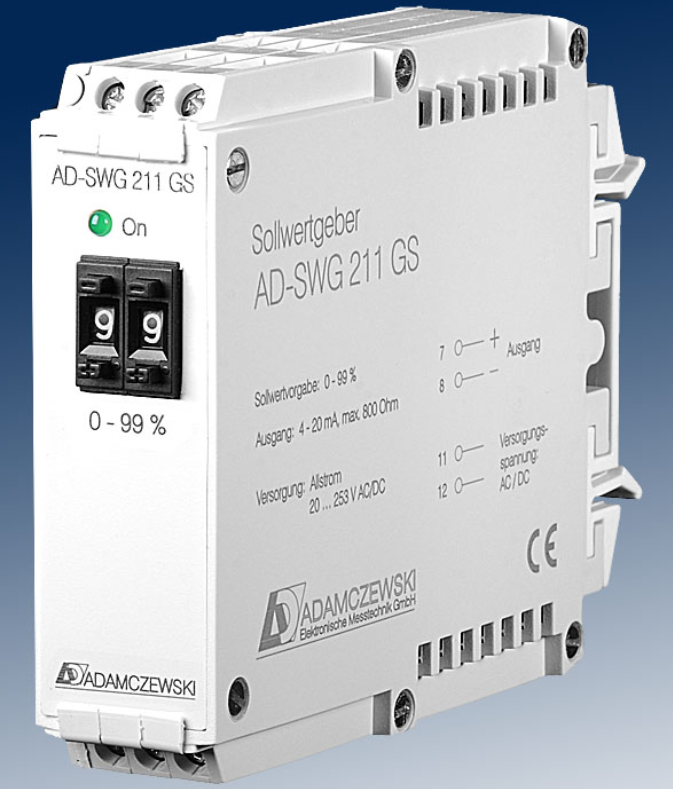

AD-SWG 211 GS
產品介紹
借助設定值編碼器 AD-SWG 211 GS，可以通過可調編碼開關設置模擬信號形式的設定值。范圍是最終值的 0 … 99%，并以 1% 的步長在前面設置。輸出與電源電壓電隔離，并且高達最大電阻，與所連接的負載無關。可以選擇電流或電壓輸出。由于高效集成寬范圍電源，可以以低功耗實現高輸出負載。
產品參數

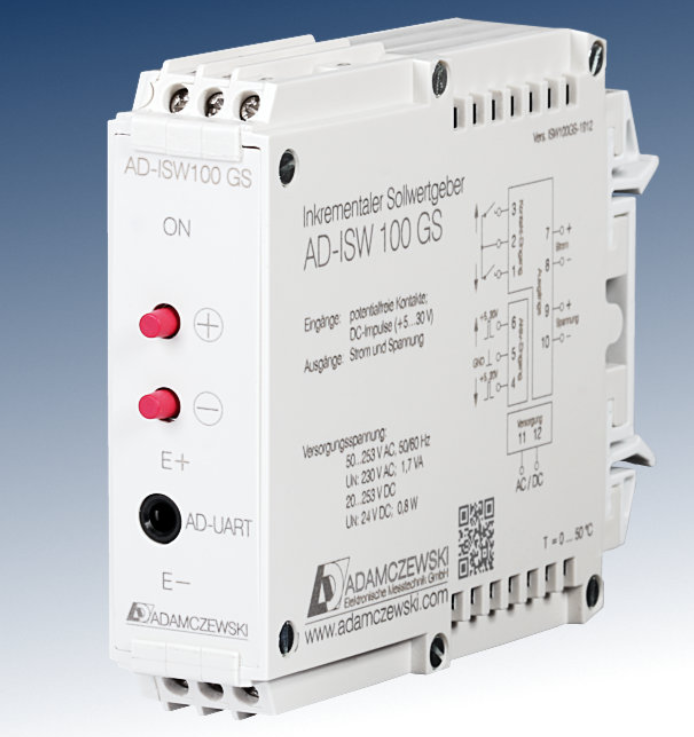

AD-ISW 100 GS
產品介紹
增量設定點生成器用于借助外部控制信號預設模擬值（0 / 4–20 mA、0–10 V）。輸出范圍從0-100%分為256級。一步的輸出變化是通過長度至少為 64 ms 的輸入脈沖來實現的。對于連續信號，大約會自動變化。每 282 ms 一步（斜坡函數）。當信號方向在范圍限制內反轉時，可以配置無限斜坡函數。無源觸點以及 5-30 V DC 的有源電壓可用作輸入脈沖源。信號設置也可以使用兩個設備按鈕進行。同時按下兩個按鈕約 1 秒。電源電壓故障后 2 秒將瞬時值保存為啟動值。通過消隱工作電壓 LED 來確認存儲過程。每個信號方向輸入都有一個紅色 LED，指示有效輸入狀態。在斜坡功能期間，相應的 LED 根據變化方向閃爍。輸出信號與有源輸入以及電源電壓電隔離。
可以使用 AD Studio 軟件配置以下內容：
– 步數（2 … 1000）
– 每步的時間間隔（10 … 2000 ms）
– 區域限制
– 斜坡功能
– 信號起始值
產品參數
| Contact | |
|---|---|
| Feeding voltage | 5 V |
| Current limit | ~ 3 mA |
| Input voltage | |
| Input level | 0 / 5 … 30 V |
| Input resistance | 3 kOhm |
| Input signals | |
| Minimum pulse width | 64 ms |
| Contact debouncing | 50 ms |
| Ramp start | > 2000 ms |
| Step time | 282 ms?1) |
| Step size | 1 / 256?1) |
| Output current | |
| Output range | 0…20 mA; 4…20 mA?1) |
| Max. burden | 500 Ohm |
| Max. residual ripple | 40 μAss |
| Open-circuit voltage | < 13 V |
| Output voltage | |
| Output range | 0…10 V; 2…10 V?1) |
| Min. burden | 10 kOhm |
| Max. residual ripple | 20 mVss |
| Current limit | < 40 mA |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Input power AC/DC | 1,7 VA / 0,8 W |
| Signal behavior | |
| Resolution | 11 Bit |
| Basic accuracy | < 0,2 % |
| Temperature influence | 100 ppm/K |
| Housing | |
| Dimensions (WxHxD) | 23x78x103 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 100 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1?2) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Contact / Output | No |
| Active input / Output | 1,0 kV, 50 Hz (1 min.) |
| Signal / supply unit | 3 kV, 50 Hz (1 min.) |
| Protection circuits | |
| Input | Electrical surge protection |
| Output | Electrical surge protection |
| Power supply | Protection against overvoltage reverse polarity |
模擬計算器

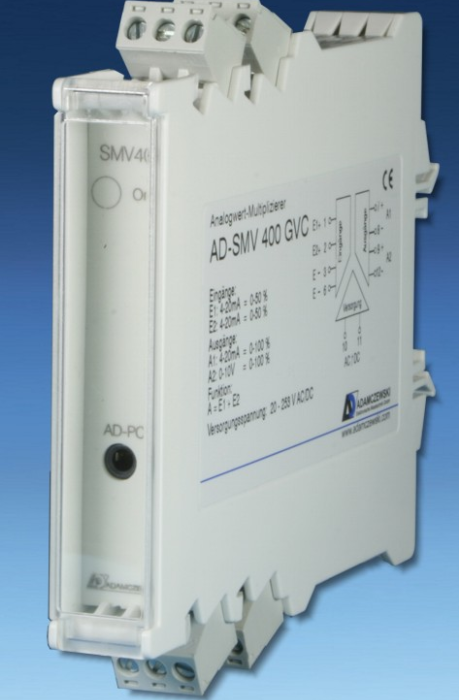

AD-SMV 400 GVC
產品介紹
總和數據放大器將最多 4 個可單獨速率輸入信號相加或相減，并將這些信號轉換為和比例或差比例輸出信號。作為輸入信號，電流可達 20 mA，電壓可達 10 V（也是雙極性）。輸入與輔助電壓和輸出電隔離。兩個模擬輸出電流（最大 20mA）和電壓（最大 10V）可以同時使用。該設備可通過 AD-PC 接口配置可選配置軟件 AD-Studio。這也可以根據工作中的客戶數據進行配置。
產品參數
| Current inputs | |
|---|---|
| Measuring range?1) | -20 … + 20 mA |
| Number | 4 |
| Input resistance | 60 Ohm |
| Voltage inputs | |
| Measuring range?1) | -10 … + 10 V |
| Number | 4 |
| Input resistance | 1 MOhm |
| 1)?Please specify current or voltage inputs when ordering. A galvanic coupling is to be excluded. | |
| Output current | |
| Max. output range | 0 … 20,4 mA |
| Max. burden | 500 Ohm |
| Residual ripple | 20 μAss |
| Output voltage | |
| Max. output range | 0 … 10,2 V |
| Min. burden | 5 kOhm |
| Residual ripple | 10 mVss |
| Resolution | |
| Input | 13 bit |
| Output | 10 bit |
| Transmission behaviour | |
| Basic accuracy | 0,2 % of full scale |
| Temperature influence | < 100 ppm/K of full scale |
| Rise time | 100 ms (output auf 90 %) |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption AC / DC | 2,6 VA / 1,2 W |
| Housing | |
| Manner of fastening | DIN rail 35mm (EN 50022) |
| Type of protection | IP 20 |
| Connector cross section | Max. 2,5 mm2 |
| Weight | ~ 140 g |
| Environmental conditions | |
| Ambient temperature | -10 … 60 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard?2) | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| 2)?During electromagnetic disturbance minor changes in output signal are possible. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Input/output | 2,5 kV (1 min) |
| Signal/auxiliary voltage | 3 kV (1 min) |
| Protective systems | |
| Input/output | Over voltage and over current |
| Power supply | Over voltage, over current and over temperature |

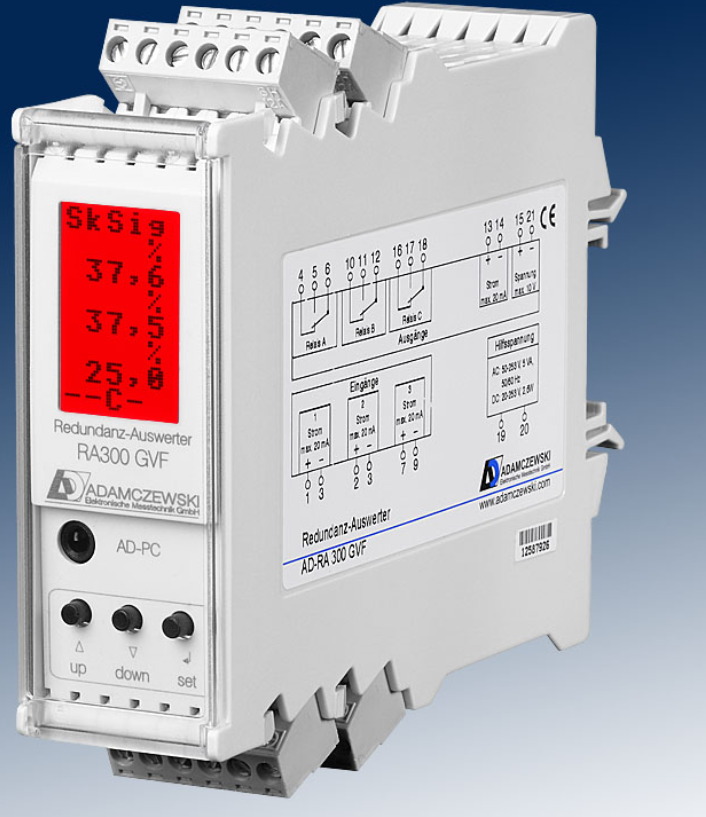

AD-RA 300 GVF
產品介紹
對于重要的模擬值，必須考慮到如果測量值在允許的測量范圍內，則測量值也可能不正確。這種誤差可以通過冗余測量來確定，這里測量三個模擬值并獲得平均值。如果通道之間的差異超過用戶定義的限制，則通過無源繼電器報告偏差輸入，同時從平均中排除。因此，輸出處繼續存在安全模擬信號。如果多個通道出現偏差，輸出將設置為測量范圍起始值，并且所有繼電器都會報告錯誤。冗余評估器 AD-RA 300 也可以僅使用 2 個輸入進行操作。在這種情況下，監測兩個測量信號的百分比差異。如果差異太大，在這種情況下兩個繼電器也會報告錯誤，并且輸出信號被設置為測量范圍起始值。所有必要的參數都可以直接在設備上或通過 PC 軟件進行配置。
產品參數
負載放大器

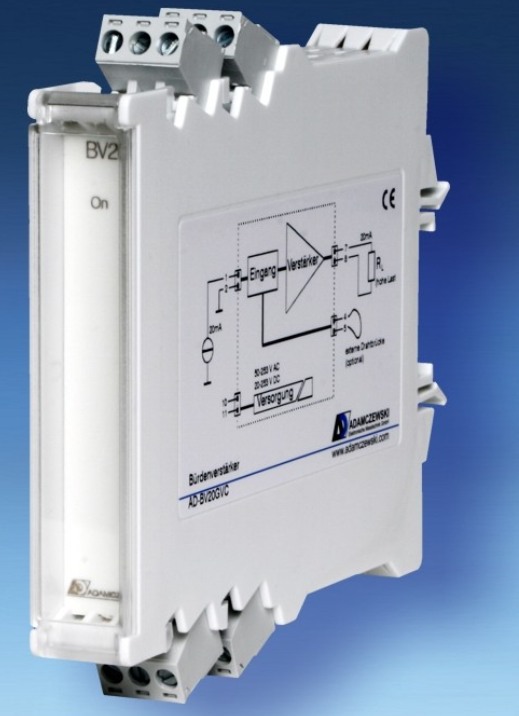

AD-BV 20 GVC
產品介紹
負載放大器 AD-BV 20 GVC 在具有高電流環路電阻（即線路電阻）的應用中提供功率放大（負載增加）。負載放大器直接在當前電流源（即分離放大器 AD-TV 22 GL）后面切換，由此也使用電流源的能量。整個設備鏈的設備輸出得到最佳利用。串聯分離放大器的電流信號分離繼續實現。
產品參數
