將模擬和數字輸入輸出信號轉換為RS485總線技術（差分雙線總線），采用Modbus RTU協議。
在總線上的模擬標準信號輸入

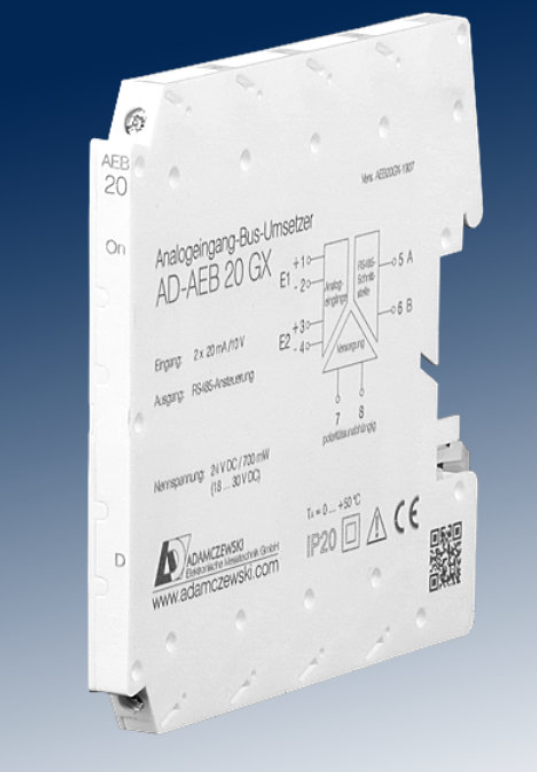

AD-AEB 20 GX
產品介紹
AD-AEB 20 GX實現了2通道模擬信號采集，同時提供經過數字處理的過程變量。信號通過RS485總線接口提供。可以通過實現的MODBUS命令調用模擬值和縮放值。有關縮放或濾波器的所有設置均通過MODBUS命令進行。
電源和RS485總線連接可以通過后方的DIN導軌連接器進行。該設備配備有兩個旋轉編碼開關，可用于在設備上設置總線地址。
讀取電流值時，輸入電流電阻會自動開啟。通過輸入信號開關（E1 / E2），可以將每個信號輸入永久連接到50歐姆的終端電阻，以便在供電電壓失敗時安全地完成電流回路。
產品參數
| Current inputs | |
|---|---|
| Measuring range | 0 … 20 mA |
| Input resistance | 50 Ohm |
| Voltage inputs | |
| Measuring range | 0 … 10 V |
| Input resistance | 100 kOhm |
| Signal detection | |
| Channel counts (U/I) | 2 |
| Basic accuracy | < +/- 0,3 % |
| Temperature influence | 80 ppm/K |
| Sampling rate / resolution | 100 ms / 10 bit |
| Transmission behaviour | |
| Response time | Max. 15 ms |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no spur lines) |
| Cable | Twisted and shielded |
| Supply | |
| Supply voltage | 18 … 30 V DC |
| Max. power consumption | 600 mW (24V DC) |
| Housing | |
| Dimensions (WxHxD) | 6,2 x 92 x 101 mm3 |
| Manner of fastening | DIN rail mounting 35mm, EN 50022 |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Bolting torque terminals | 0,5 Nm |
| Wire cross section | Max. 2,5 mm2 |
| Weight | ~ 70 g |
| Environmental conditions | |
| Permissible ambient temperature | -10 … +50 °C |
| Storage and transport | -10 … +70 °C (no condensation) |
| EMC | |
| Product family standard?1) | EN 613261 |
| Emission?2) | EN 55011, CISPR11 Cl. A, Gr. 1 |
| 1)?During checking, slight signal deviations are possible. | |
| 2)?Warning: This device is not intended to be used in residential areas and can not ensure adequate protection of radio reception in such environments. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| RS485 bus / power supply | 1,5 kV, 50 Hz (1 min) |
| Analog inputs / power supply | 1.5 kV, 50 Hz (1 min) |
| Analog input / RS485 bus | 1,5 kV, 50 Hz (1 min) |
| Analog inputs between themselves | 0 kV |
| Protection circuits | |
| Power supply | Electrical surge and reverse current protection |

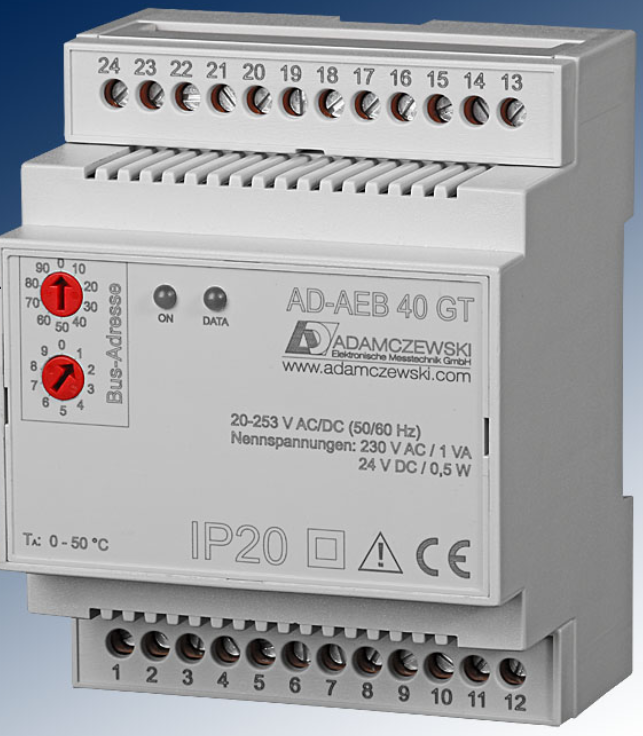

AD AEB 40 GT
產品介紹
AD AEB 40 GT實現了4通道模擬信號采集，同時提供經過數字處理的過程變量。信號通過可用的RS485總線接口提供。可以通過實現的MODBUS命令獲取模擬值和縮放值。所有關于縮放或濾波器的設置都通過MODBUS命令進行。
工作電壓由綠色LED指示。數據通信由黃色LED指示。檢測到超出定義的測量范圍的無效測量信號時，綠色LED會閃爍。
產品參數
| Current inputs | |
|---|---|
| Measuring range | 0 … 20 mA |
| Input resistance | 50 Ohm |
| Voltage inputs | |
| Measuring range | 0 … 10 V |
| Input resistance | 100 kOhm |
| Signal detection | |
| Channel counts (U/I) | 4 |
| Basic accuracy | < 0,2 % |
| Temperature influence | 80 ppm/K |
| Sampling rate / resolution | 100 ms / 11 bit |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no stubs) |
| Cable | Twisted and shielded |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Power consumption | Max. 1,5 VA |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption | Max. 0,5 W |
| Housing | |
| Dimensions (WxHxD) | 71 x 90 x 58 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,6 Nm |
| Skinning length | 6 mm |
| Weight | ~ 140 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1?1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Grid side to RS485-Bus | 3 kV, 50 Hz (1 min.) |
| Signal / supply unit | 3 kV, 50 Hz (1 min.) |
| Signal / RS485 bus | 1 kV, 50 Hz (1 min.) |
| Protection circuits | |
| Input | Electrical surge protection |
| RS485-Bus | Electrical surge protection |
| Power supply | Electrical surge protection |
總線上的數字輸入
AD-KEB 20 GX
產品介紹
兩通道的AD-KEB 20 GX用于讀取以觸點或主動24V信號形式存在的數字信號。通過紅色LED在設備上指示相應的信號狀態。設備通信通過RS485總線接口進行，并使用MODBUS RTU協議實現。 電源和RS485總線連接可以通過后方的DIN導軌連接器進行。該設備配備有兩個旋轉編碼開關，可用于在設備上設置總線地址。 光學搜索功能允許在網絡中定位單個設備。為此，綠色LED在限定時間內以閃爍模式設置，時間范圍為1到255秒。 界面設置以及設備地址可以通過Modbus命令在操作過程中進行修改。 所有Modbus寄存器地址及其相關命令都列在文檔附件中。可預設的絕對計數器不斷累加傳入的脈沖，并每小時保存在非易失性存儲器中。在讀數期間，當前計數器會重置以檢測子集。
產品參數
| Input | |
|---|---|
| Input voltage | 24 V DC / 3,5 mA (max. 30V) |
| Switching threshold | ~ 17 V |
| Contact load | 5 V / 1,5 mA |
| Measure | |
| Frequency | < 2200 Hz |
| Gate time | 1 s |
| Accuracy | +/- 0,3% |
| Counter | 0…4294967295 |
| Pulse width (counter) | > 25 ms |
| Counting frequency | < 20 Hz |
| Contact debouncing | 20 ms |
| Counter storage | Stündlich |
| Transmission behaviour | |
| Response time | Max. 15 ms |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no spur lines) |
| Cable | Twisted and shielded |
| Supply | |
| Supply voltage | 18 … 30 V DC |
| Max. power consumption | 800 mW (24V DC) |
| Housing | |
| Dimensions (WxHxD) | 6,2 x 92 x 101 mm3 |
| Manner of fastening | DIN rail mounting 35mm, EN 50022 |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Bolting torque terminals | 0,5 Nm |
| Wire cross section | Max. 2,5 mm2 |
| Weight | ~ 70 g |
| Environmental conditions | |
| Permissible ambient temperature | -10 … +50 °C |
| Storage and transport | -10 … +70 °C (no condensation) |
| EMC | |
| Product family standard?1) | EN 61326-1 |
| Emission?2) | EN 55011, CISPR11 Cl. A, Gr. 1 |
| 1)?During checking, slight signal deviations are possible. | |
| 2)?Warning: This device is not intended to be used in residential areas and can not ensure adequate protection of radio reception in such environments. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| RS485 bus / power supply | 1,5 kV, 50 Hz (1 min) |
| Digital input / Power supply | 1.5 kV, 50 Hz (1 min) |
| Digital input / RS485 bus | 1,5 kV, 50 Hz (1 min) |
| Digital input between themselves | 0 kV |
| Protection circuits | |
| RS485-Bus | Electrical surge protection |
| Power supply | Electrical surge and reverse current protection |
總線上的溫度信號

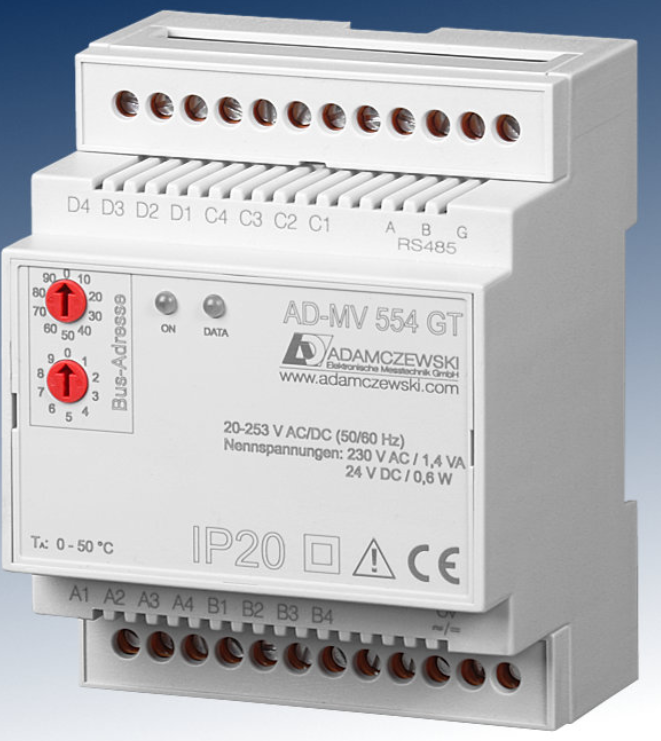

AD-MV 554 GT
產品介紹
4通道變送器AD-MV 554 GT是一款可編程的測量設備，用于測量電阻和毫伏信號。由于集成了功能塊和自由線性化曲線，AD-MV 554 GT可以通用使用，主要用于溫度傳感器的溫度測量。通過Modbus RTU協議，可以通過適當的寄存器訪問測量值。通過前面板可訪問的地址開關，可以設置1到99的設備地址。所有參數都通過RS485接口使用“AD-Studio” PC配置軟件進行設置。接口參數也可以設置用于將設備插入現有總線系統中。工作電壓由綠色發光二極管指示。數據通信由黃色發光二極管表示。檢測到超出定義的測量范圍的無效測量信號時，綠色LED會閃爍。
產品參數
總線到模擬標準信號輸出
AD-AAB 20 GX
產品介紹
AD-AAB 20 GX提供2通道模擬信號的輸出。設備通信采用MODBUS RTU協議實現。可以通過實現的MODBUS命令設置模擬設定值。 電源和RS485總線連接可以通過后方的DIN導軌連接器進行。該設備配備有兩個旋轉編碼開關，可用于在設備上設置總線地址。 工作電壓由綠色LED指示。數據通信由黃色LED指示。光學搜索功能允許在網絡中定位單個設備。為此，綠色LED在限定時間內以閃爍模式設置，時間范圍為1到255秒。 界面設置以及設備地址可以通過Modbus命令在操作過程中進行修改。所有Modbus寄存器地址及其相關命令都列在文檔附件中。
產品參數
| Current outputs | |
|---|---|
| Range | 0 … 20 mA |
| Output load | Max. 450 Ohm |
| Voltage outputs | |
| Range | 0 … 10 V |
| Output load | Min. 10 kOhm |
| Signal output | |
| Channel counts (U/I) | 2 |
| Basic accuracy | < +/- 0,3 % |
| Temperature influence | 100 ppm/K |
| Resolution | 12 bit |
| Transmission behaviour | |
| Response time | Max. 15 ms |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no spur lines) |
| Cable | Twisted and shielded |
| Supply | |
| Supply voltage | 18 … 30 V DC |
| Max. power consumption | 1400 mW (24V DC) |
| Housing | |
| Dimensions (WxHxD) | 6,2 x 92 x 101 mm3 |
| Manner of fastening | DIN rail mounting 35mm, EN 50022 |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Bolting torque terminals | 0,5 Nm |
| Wire cross section | Max. 2,5 mm2 |
| Weight | ~ 70 g |
| Environmental conditions | |
| Permissible ambient temperature | -10 … +50 °C |
| Storage and transport | -10 … +70 °C (no condensation) |
| EMC | |
| Product family standard?1) | EN 61326-1 |
| Emission?2) | EN 55011, CISPR11 Cl. A, Gr. 1 |
| 1)?During checking, slight signal deviations are possible. | |
| 2)?Warning: This device is not intended to be used in residential areas and can not ensure adequate protection of radio reception in such environments. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| RS485 bus / power supply | 1,5 kV, 50 Hz (1 min) |
| Analog output / power supply | 1.5 kV, 50 Hz (1 min) |
| Analog output / RS485 bus | 1,5 kV, 50 Hz (1 min) |
| Analog outputs between themselves | 0,5 kV, 50 Hz (1 min) |
| Protection circuits | |
| Power supply | Electrical surge and reverse current protection |
總線到切換輸出

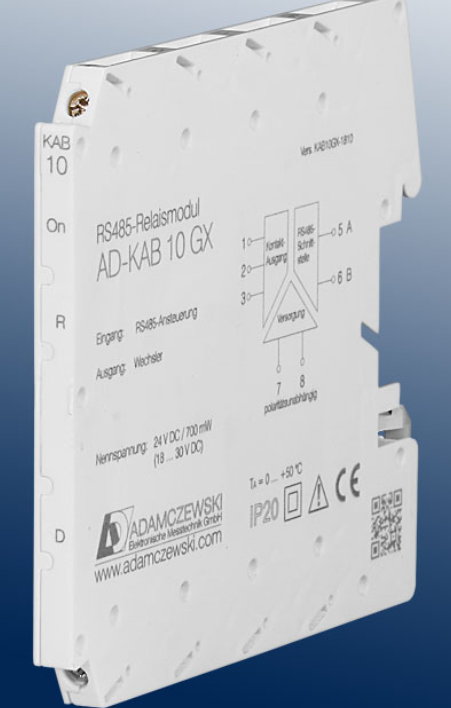

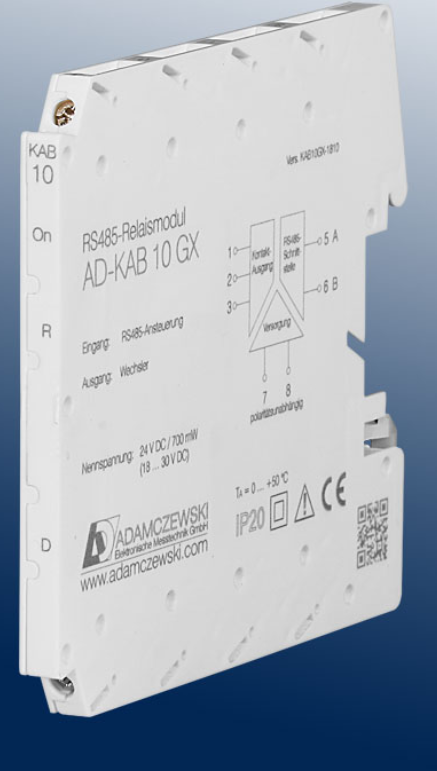

AD-KAB10 GX
產品介紹
AD-KAB10 GX提供可遠程控制的繼電器切換接觸（切換接觸）。遠程控制通過RS-485總線接口進行，設備通信采用MODBUS RTU協議。
電源和RS485總線連接可以通過后方的DIN導軌連接器進行。該設備配備有兩個旋轉編碼開關，可用于在設備上設置總線地址。
靜態接觸控制是通過控制值0或1進行的。
脈沖輸出功能（1Hz）在控制值為1到255時觸發，并可以隨時使用其他值進行修改或停止。當在柜子中有多個設備安裝在一條導軌上時，光學搜索功能允許在設備網絡中定位單個設備。為此，綠色LED在限定時間內以閃爍模式設置，時間范圍為1到255秒。
對于繼電器，可以設置定義的起始狀態，以便在供電電壓在停電后恢復時，系統可以假定所需的起始狀態。
界面設置以及設備地址可以通過Modbus命令在操作過程中進行修改。所有Modbus寄存器地址及其相關命令都列在文檔附件中。
產品參數
| Relay | |
|---|---|
| Maximum switching load AC | 250 V, 2 A |
| Maximum switching load DC | 50 V, 2 A |
| Contact construction | Changeover contact |
| Switching operations mechanical | 10000000 |
| At 230V/2A AC, cos(phi)=1 | 500000 |
| At 24V/1 A DC | 1000000 |
| Transmission behaviour | |
| Response time | Max. 15 ms |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no spur lines) |
| Cable | Twisted and shielded |
| Supply | |
| Supply voltage | 18 … 30 V DC |
| Max. power consumption | 700 mW (24V DC) |
| Housing | |
| Dimensions (WxHxD) | 6,2 x 92 x 101 mm3 |
| Manner of fastening | DIN rail mounting 35mm, EN 50022 |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Bolting torque terminals | 0,5 Nm |
| Wire cross section | Max. 2,5 mm2 |
| Weight | ~ 70 g |
| Environmental conditions | |
| Permissible ambient temperature | -10 … +50 °C |
| Storage and transport | -10 … +70 °C (no condensation) |
| EMC | |
| Product family standard?1) | EN 61326-1 |
| Emission?2) | EN 55011, CISPR11 Cl. A, Gr. 1 |
| 1)?During checking, slight signal deviations are possible. | |
| 2)?Warning: This device is not intended to be used in residential areas and can not ensure adequate protection of radio reception in such environments. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| RS485 bus / power supply | 1,5 kV, 50 Hz (1 min) |
| Relay contact | 3 kV, 50 Hz (1 min) |
| Protection circuits | |
| RS485-Bus | Electrical surge protection |
| Power supply | Electrical surge and reverse current protection |

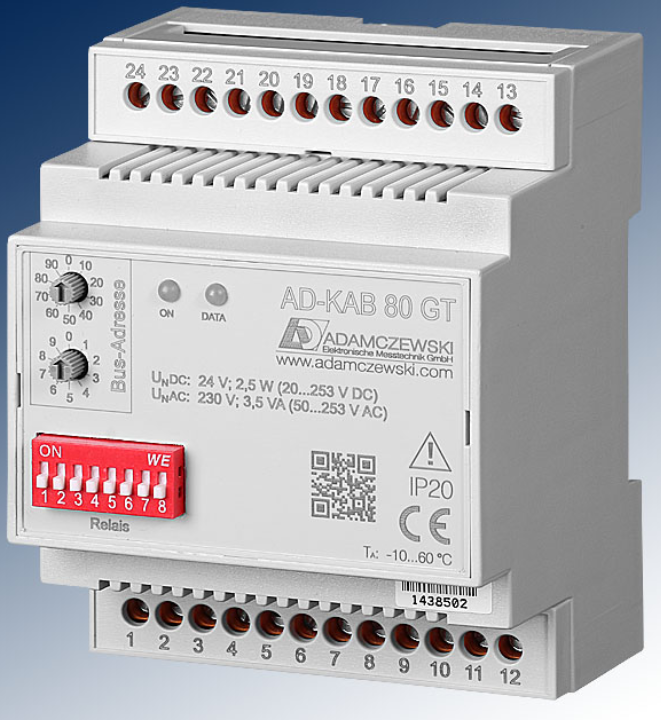

AD-KAB 40 GT和AD-KAB 80 GT
產品介紹
使用RS485繼電器模塊AD-KAB 40 GT和AD-KAB 80 GT，可以通過RS485總線遠程控制4個或8個無電位的常開觸點。在RS485總線上使用的Modbus-RTU協議是一種開放標準，因此非常靈活。最多可以通過單獨的Modbus寄存器對八個繼電器進行個別控制。這些設備配備有兩個旋轉編碼開關，可用于在設備上設置總線地址。如果DIP開關處于活動狀態（手動操作中），則會忽略相應繼電器的總線命令，因為手動操作具有優先權。由于緊湊而高效的開關電源，這些設備可以在廣泛的供電電壓范圍內運行。
產品參數
| RS485-Bus | |
|---|---|
| Software protocol | Modbus-RTU |
| Data format (default setting) | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no spur lines) |
| Cable | Twisted and shielded |
| Relay | |
| Maximum switching load AC | 250 V, 2 A |
| Maximum switching load DC | 50 V, 2 A |
| Contact construction | Closing contact |
| Switching operations mechanical | 10000000 |
| At 230V/2A AC, cos(phi)=1 | 600000 |
| At 230V/2A AC, cos(phi)=0,4 | 200000 |
| At 24V/1 A DC | 200000 |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 22 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption AC / DC | 3,5 VA / 2,5 W |
| Transmission behaviour | |
| Response time | Max. 5 ms |
| Housing | |
| Dimensions (WxHxD) | 71x90x58 mm |
| Type of protection | IP 20 |
| Connection method | Detachable terminal clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 200 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 60 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1?1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Power supply / RS485-Bus | 3 kV, 50 Hz (1 min.) |
| Power supply / relay output | 3 kV, 50 Hz (1 min.) |
| Relay output / RS485-Bus | 3 kV, 50 Hz (1 min.) |
| Protection circuits | |
| RS485-Bus | Electrical surge protection |
| Power supply | Electrical surge and reverse current protection |

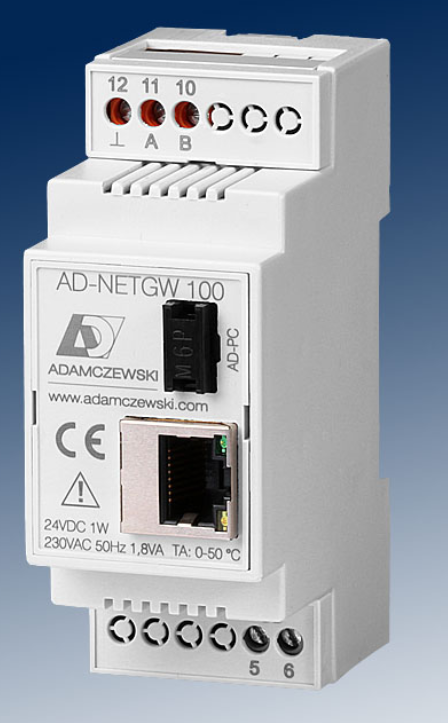

總線轉換器
AD-NETGW 100 GT
產品介紹
網絡接口轉換器（AD-NETGW 100 GT）允許通過基于IP的網絡（LAN）連接到具有串行接口的設備。為此，該設備包含一個LAN連接、一個RS485接口和一個AD-UART接口。內置的寬范圍電源模塊使其可以在幾乎所有的供電情況下運行。
產品參數
| Ethernet-interface | |
|---|---|
| LAN | 10/100 Mbit |
| Protocol | TCP/IP |
| Addressing | IP4 |
| DHCP | Can be deactivated |
| IP standard address | 192.168.178.99 |
| Access port | 80 |
| Password protection | Configuration / webserver |
| RS485-interface | |
| Baud rate | 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 76800 |
| Data format | 8N1, 8E1, 8O1 |
| Max. bus users | 32 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no stubs) |
| Cable | Twisted and shielded |
| AD-UART-interface | |
| Baud rate | 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 76800 |
| Data format | 8N1, 8E1, 8O1 |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Input power AC/DC | 1,8 VA / 1 W |
| Housing | |
| Dimensions (WxHxD) | 35,5 x 90 x 58 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm2 flex wire / 4 mm2 one wire |
| Bolting torque terminals | 0,6 Nm |
| Skinning length | 6 mm |
| Weight | ~ 90 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1?1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Supply line to all interfaces | 3 kV, 50 Hz (1 min.) |
| Ethernet to AD-UART/RS-485 | 1,5 kV, 50 Hz (1 min.) |
| Protection circuits | |
| Interfaces | Electrical surge protection |
| Power supply | Protection against over-temperature, over-voltage and over-current |

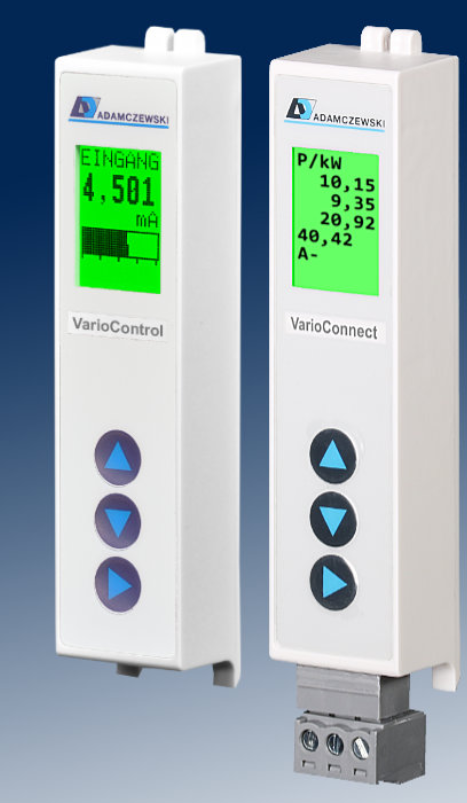

AD-VARIOCONTROL, AD-VARIOCONNECT
產品介紹
可拆卸的控制模塊AD-VarioControl用于顯示具有相關接口的基礎設備（發射器、隔離放大器等…）的測量值。插入后（即使在基礎設備運行期間也可以無限制地插入），基礎設備將被自動讀取，并顯示相應的測量值。除了顯示功能外，還可以訪問基礎設備的參數和控制功能。可以使用備份功能將參數設置加載到控制面板中，并在相同類型的不同基礎設備上進行恢復。
建立發射器通常只需要在設備的操作周期內進行一次，因此并非每個設備都需要永久性的顯示和操作元素。通過將AD-VarioControl與兼容的基礎設備配合使用，可以省去每個單獨設備上的操作元素和顯示。這樣，安裝的設備就是防篡改的，并且更具成本效益。
AD-VarioConnect具有通過RS485的Modbus-RTU協議的現場總線接口。通過這個接口，可以獲取基本單元的所有測量值。
產品參數
