Additel 673高級數字壓力校準器
壓力范圍高達60000磅/平方英寸(4200巴) 0.02%、0.05%FS或0.1%RD精度 彩色觸摸屏顯示器 每個型號都測量表壓或絕對壓力 內置氣壓計 類似智能手機的直觀界面 藍牙和USB通信 Wi-Fi(可選) 測量mA或V,并使用24V回路電源 全HART現場通訊器(可選) 數據記錄 與Additel的Link移動應用程序通信 ISO 17025認證校準,包括數據 |
Additel的673高級數字壓力校準器將重新定義您想要測量和校準壓力讀數和設備的方式!憑借無線遠程連接、微處理器技術、最先進的硅壓力傳感器和板載存儲容量,這些具有吸引力且完全溫度補償的校準器將提供您所期望的真正Additel產品的性能、耐用性和可靠性。全新的現代菜單結構和控制界面為壓力校準工作帶來了全新的體驗。這種與我們的壓力校準器接口的全新方式使ADT673使用起來非常愉快。方便的Additel Link應用程序讓用戶能夠通過個人設備或手機遠程監控這些校準器。有很多選項可供選擇,您可以配置這些壓力校準器,以精確滿足您的特定壓力校準和測量需求。IP67等級,您會發現這些令人驚嘆的壓力校準器可以在現場或實驗室中使用,以滿足最苛刻的壓力校準需求。
現代用戶體驗:
Additel在使用這款革命性的新型校準器時,為我們的客戶提供了盡可能好的體驗。3.4英寸彩色觸摸屏顯示屏配有可更換鋼化玻璃保護屏,是對傳統按鈕或泡罩墊界面的更新。憑借易于導航的菜單結構和快速的觸摸屏響應,您會發現這些ADT673校準器使用起來簡單而強大。這種易于閱讀的顯示器不僅使用起來很有趣,而且堅固耐用,可以滿足現場或實驗室繁忙技術人員的需求。
HART現場通訊器:

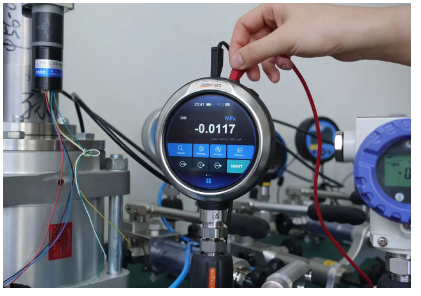

ADT673高級數字壓力校準器完全支持HART通信協議,為寬壓力范圍內的變送器提供壓力校準解決方案。ADT673是一款非常便攜的設備,可以通過內置的壓力傳感器精確測量壓力,并讀取傳感器產生的電流或mV。它甚至可以在校準期間向功率傳感器或變送器提供激勵電壓(回路電源)。
Specifications | |
---|---|
Accuracy | ADT673-02: 0.02% of full span |
ADT673-05: 0.05% of full span | |
673-RD: 0% to 20% of Range: 0.02% of full span, 20% to 110% of Range: 0.1% of reading, Vacuum: 0.25% of full span[1][2] | |
Barometric Accuracy (built-in barometer) | 55Pa |
Gauge Types | Gauge pressure, compound pressure, absolute pressure, differential pressure |
Display | Color Touchscreen (capacitive) |
Screen protector: tempered glass film (replaceable) | |
Display rate: 3 readings per second (Default setting). Adjustable from 10 readings per second to 1 reading every 20 seconds | |
Resolution: 4,5 or 6 digits (user selectable) | |
Pressure Units | Pa, kPa, MPa, psi, bar, mbar, kgf/cm2, inH2O@4°C mmH2O@4°C, inHg@0°C, mmHg@0°C and 5 customizable units |
Environmental | Compensated Temperature: 14°F to 122°F (-10°C to 50°C) |
Operating Temperature: 14°F to 122°F (-10°C to 50°C) | |
Storage Temperature: -4°F to 158°F (-20°C to 70°C) | |
Humidity: 0 – 95%, Non-condensing | |
Pressure Port | ≤15,000 psi: 1/4NPT male, 1/2NPT male, 1/4BSP male, 1/2BSP male, M20×1.5 male |
>15,000 psi: 1/4HP female or 1/4HP male, *1/4HP female: Autoclave F-250-C, 9/16″ – 18 UNF-2B, *1/4HP male: Autoclave M-250-C, 9/16″ – 18 UNF-2A | |
Differential Pressure: Barb fitting | |
Other connections available per request | |
Over Pressure Warning | 1.2 |
Power | Battery: Rechargeable Li-ion battery |
Li-Battery life: 16 hours typical | |
Recharge time: 4 hours typical | |
External power: 110V/220V power adapter (5 VDC) | |
Enclosure | Case material: 304 SS |
Wetted parts: 316 SS [3] | |
Dimensions: 4.65″ (118mm) width X 1.77″ (42mm) depth 6.89″ (175mm) height | |
Weight: 1.58 lbs. (0.715 kg) | |
Protection Level: IP67 | |
Electrical Measurement Accuracy (23 ± 15°C) | Voltage DC: ±30.0000 V, ± (0.01%RD + 1.5 mV) |
Current DC: ±30.0000 mA, ± (0.01%RD + 1.5 μA) | |
DC 24 V: 24 V ± 1 V, MAX:30 mA | |
Switch[4] : Status OPEN/CLOSED, support for mechanical switches and NPN/PNP digital switches | |
Data Logging | Data storage: 8GB (100M+ records) |
Mode: manual and automatic | |
Interval-record: user selectable from 0.1 to 9999.9 second intervals | |
Compliance | Protection Level: IP67 |
Vibration: 5 g (10-500 Hz) | |
Shock Resistance: 8 g/11 ms | |
CE | |
Communication | USB Type-C and Bluetooth included, RS232 or Wi-Fi (optional) |
Warranty | 1 year |
[1] Wetted parts material types may vary by pressure range.? Please refer to the manual or contact Additel for more information. | |
[2] Trigger voltage 2.7V. | |
[3] Available units are dependant on the overall pressure range. | |
[4] Temperature coefficient: (5ppm of RD + 5ppm of FS)/°C from -10°C to 8°C and 38°C to 50°C. |
Gauge Pressure [1] | ||||||
---|---|---|---|---|---|---|
P/N | Pressure Range | Media [2] | Accuracy | Burst Pressure | ||
(psi) | (bar) | %FS | %RD | |||
V15 | -15 | -1 | G | 0.02 (0.05) | N/A | 3× |
GP2 | 2 | 0.16 | G, L | 0.05 | N/A | 3× |
GP5 | 5 | 0.35 | G, L | 0.05 | 0.1 | 3× |
GP10 | 10 | 0.7 | G, L[3] | 0.02 (0.05) | 0.1 | 3× |
GP15 | 15 | 1 | G, L[3] | 0.02 (0.05) | 0.1 | 3× |
GP30 | 30 | 2 | G, L[3] | 0.02 (0.05) | 0.1 | 3× |
GP50 | 50 | 3.5 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP100 | 100 | 7 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP150 | 150 | 10 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP300 | 300 | 20 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP500 | 500 | 35 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP600 | 600 | 40 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP1K | 1000 | 70 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP1.5K | 1500 | 100 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP2K | 2000 | 140 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP3K | 3000 | 200 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP5K | 5000 | 350 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP10K | 10000 | 700 | G, L | 0.02 (0.05) | 0.1 | 1.5× |
GP15K | 15000 | 1000 | G, L | 0.05 (0.1) | 0.1 | 1.5× |
GP20K | 20000 | 1400 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP25K | 25000 | 1600 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP30K | 30000 | 2000 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP36K | 36000 | 2500 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP40K | 40000 | 2800 | G, L | 0.05 (0.1) | N/A | 1.35× |
GP50K | 50000 | 3500 | G, L | 0.1 (0.2) | N/A | 1.2× |
GP60K | 60000 | 4200 | G, L | 0.1 (0.2) | N/A | 1.1× |
[1] Sealed gauge pressure for above 1,000 psi | ||||||
[2] G=Gas, L=Liquid | ||||||
[3] 0.02% FS for gas media only |
Compound Pressure | ||||||
---|---|---|---|---|---|---|
P/N | Pressure Range | Media | Accuracy | Burst Pressure | ||
(psi) | (bar) | %FS[1] | %RD | |||
CP2 | ±2 | ±0.16 | G | 0.05 | N/A | 3× |
CP5 | ±5 | ±0.35 | G | 0.02 (0.05) | 0.1 | 3× |
CP10 | ±10 | ±0.7 | G | 0.02 (0.05) | 0.1 | 3× |
CP15 | ±15 | ±1 | G | 0.02 (0.05) | 0.1 | 3× |
CP30 | -15 to 30 | -1 to 2 | G | 0.02 (0.05) | 0.1 | 3× |
CP100 | -15 to 100 | -1 to 7 | G, L | 0.02 (0.05) | 0.1 | 3× |
CP300 | -15 to 300 | -1 to 20 | G, L | 0.02 (0.05) | 0.1 | 3× |
CP500 | -15 to 500 | -1 to 35 | G, L | 0.02 (0.05) | N/A | 3× |
CP600 | -15 to 600 | -1 to 40 | G, L | 0.02 (0.05) | N/A | 3× |
CP1K | -15 to 1000 | -1 to 70 | G, L | 0.02 (0.05) | N/A | 3× |
[1] FS specification applies to the span of the range |
Absolute Pressure | |||||
---|---|---|---|---|---|
P/N | Pressure Range | ? | Media | Accuracy(%FS) | Burst Pressure |
(psi) | (bar) | ||||
AP5 | 5 | 0.35 | G , L | 0.1 | 3× |
AP10 | 10 | 0.7 | G , L | 0.1 | 3× |
AP15 | 15 | 1 | G , L | 0.1 | 3× |
AP30 | 30 | 2 | G , L | 0.1 | 3× |
AP50 | 50 | 3.5 | G , L | 0.1 | 3× |
AP100 | 100 | 7 | G , L | 0.05 (0.1) | 3× |
AP300 | 300 | 20 | G , L | 0.05 (0.1) | 3× |
AP500 | 500 | 35 | G , L | 0.05 (0.1) | 3× |
AP1K | 1000 | 70 | G , L | 0.05 (0.1) | 3× |
AP3K | 3000 | 200 | G , L | 0.05 (0.1) | 3× |
AP5K | 5000 | 350 | G , L | 0.05 (0.1) | 3× |
Differential Pressure | ||||||
---|---|---|---|---|---|---|
P/N | Pressur | Range | Media | Accuracy (%FS)[1] | Burst Pressure | Static Pressure Range |
(inH2O) | (mbar) | |||||
DP1 | ±1 | ±2.5 | G | 0.05[2] | 100× | ±10 psi |
DP2 | ±2 | ±5.0 | G | 0.05[2] | 100× | ±10 psi |
DP5 | ±5 | ±10 | G | 0.05[2] | 50× | ±10 psi |
DP10 | ±10 | ±25 | G | 0.05[2] | 20× | ±10 psi |
DP20 | ±20 | ±50 | G | 0.05 | 20× | ±10 psi |
DP30 | ±30 | ±75 | G | 0.05 | 20× | ±10 psi |
DP50 | ±50 | ±125 | G | 0.05 | 3× | ±10 psi |
DP100 | ±100 | ±250 | G | 0.02 | 3× | ±15 psi |
DP150 | ±150 | ±350 | G | 0.02 | 3× | 50 psi |
DP300 | ±300 | ±700 | G | 0.02 | 3× | 50 psi |
[1] FS specification applies to the span of the range. Accuracy includes one year stability. | ||||||
[2] 0.05%FS accuracy (incl 6 months stability). One year accuracy is 0.05%FS calibration accuracy combined with 0.05%FS one year stability. |
Barometric Pressure | |||||
---|---|---|---|---|---|
P/N | Pressure Range | Media | Accuracy | Burst Pressure | |
Low | High | ||||
BP | 60 kPa | 110 kPa | G | 40 Pa | 3× |
Communication Types Supported | ||||
---|---|---|---|---|
Communication Type | ADT685 | ADT685Ex | ADT686 | ADT673 |
RS232 | ○ | ○ | ○ | ○ |
RS485 | ○ | ○ | ||
Wifi | ○ | ○ | ||
USB | ● | ● | ● | ● |
Bluetooth (BLE) | ● | ● | ● | ● |
● Included ○ Optional |
Additel Software Compatability Matrix | ||||||||
---|---|---|---|---|---|---|---|---|
Communication Type | ADT685/ADT685Ex | ADT686/ADT673 | ||||||
ACal | LogII | Land | Link | ACal | LogII | Land | Link | |
RS232 | ● | ● | ● | ● | ● | ● | ||
RS485 only for ADT685 | ? [2] | ? [2] | ? [2] | |||||
Wifi | ● | ● | ● | ● [1] | ||||
USB | ● | ● | ● | ● | ● | ● | ||
Bluetooth (BLE) | ● | ● | ||||||
● Supported | ||||||||
[1] This configuration requires that the device be connected to ACloud via Wi-Fi to utilize the Additel Link app. | ||||||||
[2] 4-20mA output and RS-485 not available in ADT685Ex models. |
