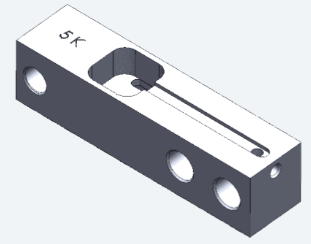

不銹鋼剪切梁稱重傳感器
不銹鋼剪切梁數字稱重傳感器采用不銹鋼結構。它們可以安裝在平臺秤上，也可以安裝在大型地板秤上，并可用于各種其他應用。容量范圍從500磅到20,000磅.
產品型號
| Model | Product Code | Capacity & Resolution | ||
|---|---|---|---|---|
DLC-P? | DLC-P25 | 250 lb x 0.05 lb, 113 kg x 20 g | ||
| DLC-P50 | 500 lb x 0.1 lb, 226 kg x 50 g | |||
DLC-F? | DLC-F12 | 1250 lb x 0.2 lb, 567 kg x 0.1 kg | ||
| DLC-F25 | 2500 lb x 0.5 lb, 1134 kg x 0.2 kg | |||
| DLC-F50 | 5000 lb x 1 lb, 2268 kg x 0.5 kg | |||
| DLC-F100 | 10000 lb x 2 lb, 4536 kg x 1 kg |
來自Arlyn Scales的數字稱重傳感器(DLC)不僅提供了久經考驗的可靠性和堅固性，這是眾所周知的品牌，而且它們也易于使用。
產品規格
| 尺寸 |
|
| 主要輸出類型 | RS-232 (Ethernet, USB, RS-485/422 & other connectivity options available) |
| 結構 | Stainless Steel |
| 類型 | Single Point |
| 最大安全荷載 | 150% of Capacity |
| 尺寸 | Model Dependent |
| 電源要求 | Bus-Powered USB (5V) Self-powered also available up to 24V. |
| 精度和重復性 | ± 0.1% of Full Scale @ 20°C ± 0.25% of Full Scale above operating temperature range |
| Zero Shift | ± 0.625% Full Scale / 30 days [All Digital Indicator Models] |
| 操作溫度 | 14°F to 104°F (-10°C to 65°C) |
| Pig Tail Lead | 4 conductor, jacketed and shielded |
| 相對濕度 | 0-95% Non-Condensing |
| 環境 | Water Resistant (Not Submersible) |
| 測試規格 | EMI/RFI Emission Suppression |
| 典型采樣率 | 10 Hz (Changeable) |
