Current Scientific全景高清紅外系統
“全景高清紅外系統”是Current公司最新研發的任務載荷平臺：它將實時全景監控與遠距離偵察能力完美融合，打造出頂尖的電光紅外一體化載荷系統。

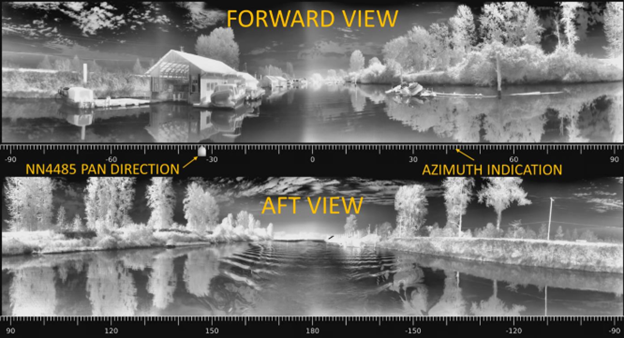

該系統的全景攝像頭陣列可為艦船提供周邊環境的高清紅外全景實時影像，而云臺變焦單元則搭載多傳感器配置，實現遠距離偵察功能。
系統能主動探測潛在威脅，并向船員或AI控制系統發出警報，以便進行風險研判并采取早期防護措施。在云臺單元進行威脅確認的同時，全景攝像頭始終維持全局態勢感知。
該系統支持艦橋操控，也可通過IP網絡在安保室或遠程位置進行控制。
Specifications
| Thermal Camera | |
|---|---|
| Sensor Type | Uncooled Long Wave Infrared (LWIR), 8-12μm |
| Resolution | 8000×700 pixels, 30fps |
| Field of View | 360° or 225° horizontal x 36° vertical |
| Payload Specifications | |
| Weight | 13kg (in addition to PTZ unit) |
| Dimensions | 400mm D x 148mm H (in addition to PTZ unit) |
| System Interface | |
| Video Streaming | RTSP H.264 |
| Control | Over IP network |
| Radar / AIS | ARPA target, radar cursor, AIS target tracking over NMEA 0183 via RS422 or RS232 or Network |
| Features | |
| Environmental | IP67 |
| Operational Temperature | -20°C to +50°C |
| Control Options | Video integrated into UI / Control only UI / Compact Controller / Rugged Rigid Grip / 2-Button Joystick |
| Third Party Interface | Protocol for integration into navigation system / video management system / C2 |
| Video Recording | Network recording of two video streams on VMS or dedicated DVR |
| Power Requirements | |
| Voltage | 18-36VDC (Panoramic array) 100-240VAC (CPU module) |
