夜航者™高速艇專用系統（Night Navigator™ HSC）是經DNV船級社認證、符合國際海事組織高速艇規范（IMO HSC code）并獲頒Wheelmark證書的攝像系統。該系統將取代自2000年代初以來已在數百艘高速艇上安裝的Night Navigator 8540型號。
夜航者HSC采用無外置活動部件的緊湊型設計，可提供卓越的紅外成像效果。其堅固的船用級設計使維護需求降至最低，同時憑借優異性能，能將高速艇航行路徑上的障礙物探測距離顯著提升。

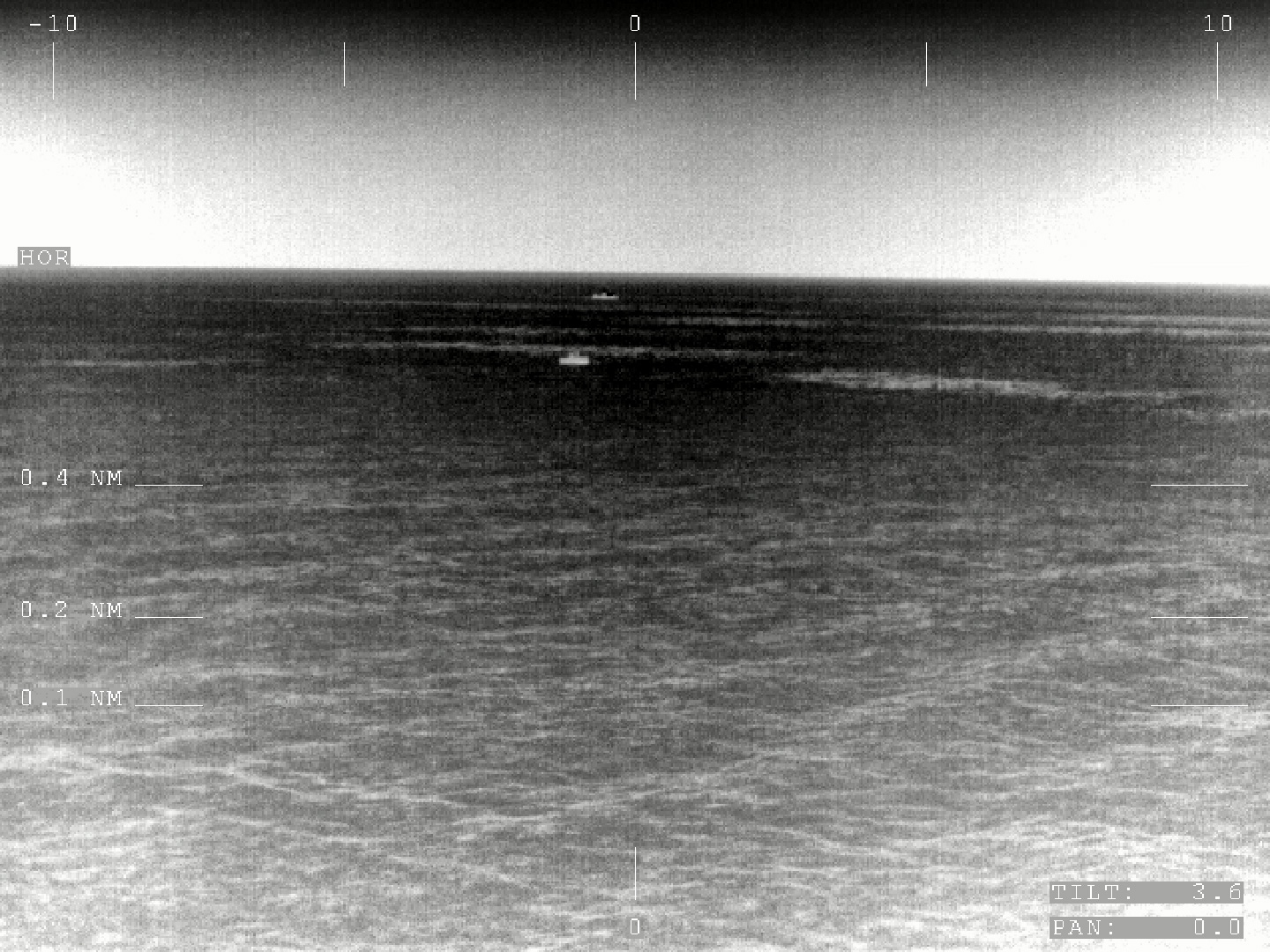

該系統具備航向標線、轉向位置、預設位、船首向等屏幕顯示功能，并搭載自動診斷系統，可對內部溫度、濕度水平及云臺俯仰旋轉參數等多項指標進行實時監測。
Specifications
| Thermal Camera | |
|---|---|
| Sensor Type | Uncooled Long Wave Infrared (LWIR) |
| Resolution | 640×480 pixels |
| Lens | Athermalized Fixed Focus |
| Field of View | 22.6° |
| Payload Specifications | |
| Pan Range | +/-20° from heading |
| Tilt Range | +/-9° |
| Weight | 5.2kg [11lbs] |
| Dimensions | 166mm H x 348mm W [7in H x 14in W] |
| System Interface | |
| Video Output | DVI / HD-SDI – Optional |
| Video Streaming | IP based with included 8″ Touchscreen Controller |
| Features | |
| Environmental | Certified and Compliant to IEC 60945 |
| Certification | Wheelmark and Type Approved by DNV to IMO Resolution MSC.94(72) for High Speed Craft. DNV Certificate number: MEDB00007RZ |
| Operational Temperature | -20°C to +50°C |
| Power Requirements | |
| Voltage | 24VDC |
| Max. Consumption | 50W |
