BladeCam2超緊湊型光束分析相機
經濟高效的超薄光束分析解決方案
全新升級的BladeCam2配備USB 3.0接口并優化多項性能，帶來更卓越的光束分析體驗。該系列中的BladeCam2-HR高分辨率版本擁有僅12.8毫米（0.5英寸）的超薄機身，搭配5.2μm小像素設計，可輕松集成至緊湊型光路系統和OEM設備中。
產品亮點
? 標準CMOS探測器覆蓋355-1150nm
? 可選TEL傳感器(1480-1610nm)
? 提供紫外(UV)和1310nm專用版本
? 130萬像素(1280×1024)，5.2μm像素尺寸
? 智能幀率：1280×1024@9+fps / 1024×1024@16fps / 512×512@35fps
? USB3.0總線供電
? HyperCal™動態噪聲與基線校正技術
? 標配C接口濾鏡組
? 1000:1信噪比(RMS)
? 專為連續/準連續激光優化
? 40μs-500ms電子自動快門
? 10位模數轉換
? 支持多相機同步采集
? 可現場更換圖像傳感器
? 實時相對功率顯示
? 無窗傳感器設計消除干涉條紋
? 可選ISO11146 M2測量套件
典型應用場景
? 空間受限的緊湊型光路系統
? 連續/準連續激光束形分析
? 激光設備現場維護
? 光學系統裝調與校準
? 光束漂移監測記錄
? 搭配M2DU平臺實現M2測量
| Specification | Detail |
|---|---|
| Wavelength | BladeCam2-HR/HR-ND4: 355 to 1150 nm BladeCam2-HR-1310: 355 to 1350 nm BladeCam2-HR-TEL: 1480 to 1610 nm BladeCam2-HR-UV: 190 to 1150 nm |
| Included Filters | BladeCam2-HR-ND4: C-mount ND-4 BladeCam2-HR: C-mount ND-1, ND-2, ND-4 BladeCam2-HR-1310: C-mount ND-1, ND-2, ND-4 & 1″ long pass filter w/ C-mount adapter BladeCam2-HR-TEL: C-mount ND-1, ND-2, ND-4 & 1″ long pass filter w/ C-mount adapter BladeCam2-HR-UV: C-mount ND-1, ND-2, ND-4 & 1″ absorptive ND-1, ND-2, ND-4 w/ C-mount adapter |
| Pixel Count, H x V | 1.3 Mpixel, 1280 x 1024 |
| Image Area | 6.6 x 5.3 mm |
| Pixel Dimension | 5.2 x 5.2 μm |
| Min. Beam (10 pixels) | ~52 μm |
| Shutter Type | Rolling |
| Max. Full Frame Rate | ≥9 Hz |
| Max. ‘Every Pulse’ PRR | N/A |
| Single Pulse Capture PRR | N/A |
| Signal to RMS Noise | 1,000:1 |
| (Opt./Elec.* dB) | (30/60* dB) |
| Dynamic Range | 41 dB |
| ADC | 10-bit (1,024 levels) |
| Measurable Sources | CW/Quasi-CW beams |

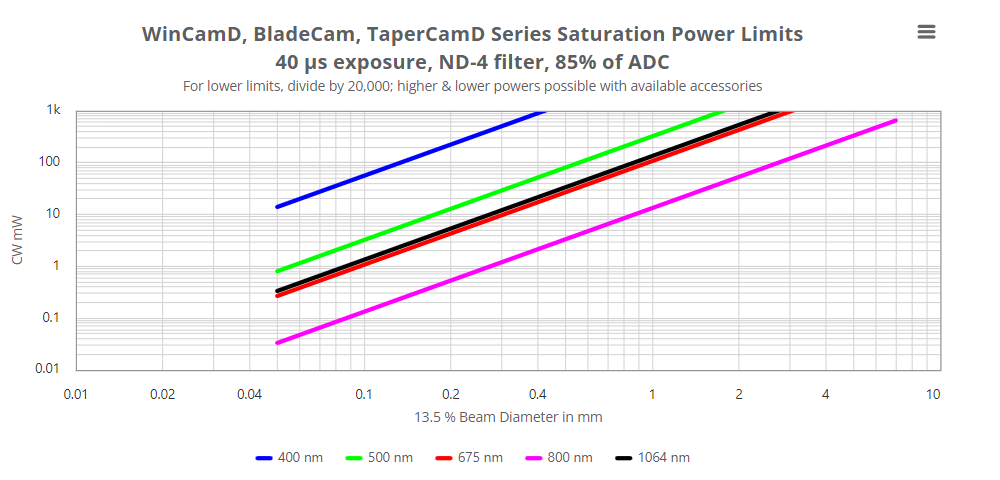

| Measured Beam Powers | See Saturation Power Graph in datasheet |
| Manual Beam Attenuation | Provided filters, other attenuation accessories available |
| Displayed Profiles | Line, 2D & 3D plots. Normalized or un-normalized. Linear or Logarithmic, Zoom x10 2D, 3D in 10, 32 or max. colors or grayscale Contoured display at 10 and 32 colors |
| Measured & Displayed Profile Parameters | Raw and smoothed profiles Triangular running average filter up to 10% FWHM |
| Beam Diameter | Diameter at two user set Clip levels Gaussian & ISO 11146 Second Moment beam diameters Equivalent diameter above a user defined Clip level Equivalent Slit and Knife Edge diameters |
| Beam Fits | Gaussian & Top Hat profile fit & % fit Equivalent Slit profile |
| Beam Ellipticity | Major, Minor & Mean diameters. Auto-orientation of axes. |
| Centroid Position | Relative and absolute Intensity Weighted Centroid and Geometric Center Beam Wander Display and Statistics |
| Measurement Accuracy (not limited to pixel size) | 0.1 μm processing resolution for interpolated diameters. Absolute accuracy is beam profile dependent – ~1 μm accuracy is frequently achievable. Centroid accuracy is also beam dependent (as good as ±1 μ since it is arithmetically determined from all pixels above the centroid clip level). |
| Processing Options | Image & profile Averaging, 1, 5, 10, 20, Continuous. Background Capture and Subtraction. User set rectangular Capture Block for capture User set or Auto ellipse Inclusion region with beam tracking for processing *.ojf files save all WinCamD custom settings for particular test configurations |
| Update Rates | ≥9 Hz maximum for full frame, full screen. Higher for small Capture Blocks |
| Pass/Fail display | On-screen selectable Pass/Fail colors. Ideal for QA & Production. |
| Log Data and Statistics | Min., Max., Mean, Standard Deviation, to 4096 samples |
| Relative Power Measurement | Rolling histogram based on user’s initial input. Units of mW, μJ, dBm, % or user choice (relative to a reference measurement input) |
| Fluence | Fluence, within user defined area |
| Certification | RoHS, WEEE, CE |
| Multiple Cameras | Up to 4 cameras, parallel capture. 1 to 8 cameras, serial capture. |
| Head Dimensions, Width x Height x Depth | 1.8 x 1.8 x 0.5 in. (46.0 x 46.0 x 12.8 mm) |
| Optical depth from housing/filter to sensor (no window) ±0.2 mm | 4.0/ 8.5 mm (verify before purchasing) |
| Mounting | 1/4″-20 holes aligned with sensor center. 4-40 holes on camera rear. |
| Weight, Camera Head | 85 g (3 oz) |
| Minimum Requirements | Windows 10 64-bit |
