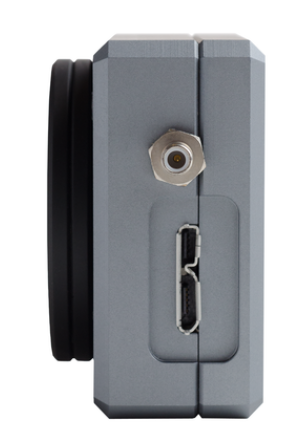

WinCamD-LCM
通用全局快門設計，兼容連續波（CW）與脈沖激光束
標準波長范圍355至1150納米，可選配紫外（UV）、1310納米及1550納米擴展波長
最受歡迎的光束質量分析相機
WinCamD-LCM CMOS光束分析儀完美體現了DataRay的產品理念：為客戶提供高性價比的優質產品。自推出以來，它毫無懸念地成為我們最暢銷的產品，其成功絕非偶然。這款采用1英寸CMOS傳感器的分析儀配備全局快門，既適用于連續波(CW)也適用于脈沖激光束，且可穩定檢測低至190 nm的波長*。
核心特性
? 標準CMOS探測器支持355-1150 nm波長范圍
? 可選配TEL傳感器，擴展至1480-1610 nm
? 提供紫外(UV)和1310 nm專用版本
? 420萬像素(2048×2048)，有效感光面積11.3×11.3 mm
? 5.5 μm像素尺寸
? 幀率：512×512分辨率下60 fps，1024×1024下30 fps，2048×2048下12 fps
? USB 3.0供電即用
? HyperCal™動態噪聲與基線校正軟件
? 可選MagND™可堆疊磁性ND濾鏡或C接口濾鏡
? 2500:1的信噪比(RMS)
? 帶TTL觸發功能的全局快門
? 電子自動快門(85 μs至2秒，動態范圍44 dB)
? 12位模數轉換
? 隔離脈沖觸發功能
? 多相機并行采集支持
? 可現場更換圖像傳感器
? 相對功率電平顯示
? 標準無窗傳感器設計，消除干涉條紋
? 可選ISO 11146 M2測量套件（含光束傳播分析、發散角及焦點測量）
專用系統集成方案
? 工業激光監控系統(ILMS)
? 大光束分析系統(LBPS)
? 線激光輪廓分析系統(LLPS)
典型應用
? 連續波/脈沖激光束形分析
? 激光設備現場維護
? 光學組件裝調與儀器校準
? 光束漂移監測與記錄
? 搭配M2DU平移臺實現M2參數測量
| Specification | Detail |
|---|---|
| Wavelength | WinCamD-LCM: 355 to 1150 nm WinCamD-LCM-1310: 355 to 1350 nm (includes long pass filter) WinCamD-LCM-TEL: 1480 to 1610 nm WinCamD-LCM-UV: 190 to 1150 nm |
| Pixel Count? H x V | 4.2 MPixel? 2048 x 2048 |
| Optical Format | 1″ |
| Image Area | 11.3 x 11.3 mm |
| Pixel Dimension | 5.5 x 5.5 μm |
| Min. Beam (10 pixels) | ~55 μm |
| Shutter Type | Global |
| Max Frame Rate* | 60 Hz |
| Single Pulse Capture PRR | USB 2.0: 6.3 kHz USB 3.0: 12.6 kHz |
| Signal to RMS Noise | 2,500:1 (34 dB optical / 68 dB electrical) |
| Electronic Shutter Range | USB 2.0: 12,600:1 (41 dB) USB 3.0: 25,000:1 (44 dB) |
| ADC | 12-bit |
| Measurable Sources | CW beams? pulsed sources; CW to 12.6 kHz with single pulse isolation Software configurable Auto-trigger? Synchronous & Variable Delay |

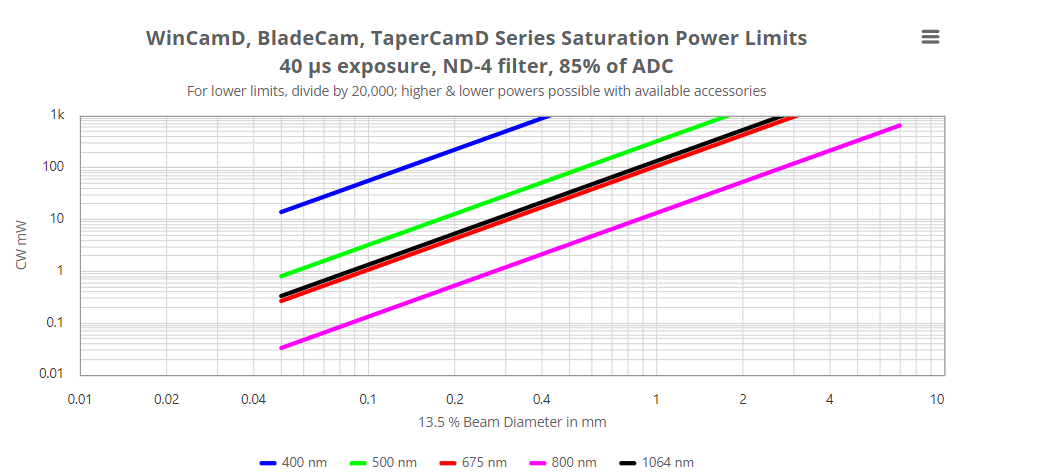

| Measured Beam Powers | See Charts |
| Manual Beam Attenuation | Includes ND-1, ND-2, and ND-4?magnetic ND filters?or?C-mount ND filters |
| Displayed Profiles | Line? 2D & 3D plots. Normalized or un-normalized. Linear or Logarithmic? Zoom x10 2D? 3D in 10? 32 or max. colors or grayscale Contoured display at 10 and 32 colors |
| Measured & Displayed Profile Parameters | Raw and smoothed profiles Triangular running average filter up to 10% FWHM |
| Beam Diameter | Diameter at two user set Clip levels Gaussian & ISO 11146 Second Moment beam diameters Equivalent diameter above a user defined Clip level Equivalent Slit and Knife Edge diameters |
| Beam Fits | Gaussian & Top Hat profile fit & % fit Equivalent Slit profile |
| Beam Ellipticity | Major? Minor & Mean diameters. Auto-orientation of axes. |
| Centroid Position | Relative and absolute Intensity Weighted Centroid and Geometric Center Beam Wander Display and Statistics |
| Measurement Accuracy (not limited to pixel size) | 0.1 μm processing resolution for interpolated diameters. Absolute accuracy is beam profile dependent – ~1 μm accuracy is frequently achievable. Centroid accuracy is also beam dependent (as good as ±1 μ since it is arithmetically determined from all pixels above the centroid clip level). |
| Processing Options | Image & profile Averaging? 1? 5? 10? 20? Continuous. Background Capture and Subtraction. User set rectangular Capture Block for capture User set or Auto ellipse Inclusion region with beam tracking for processing *.ojf files save all WinCamD custom settings for particular test configurations |
| Pass/Fail display | On-screen selectable Pass/Fail colors. Ideal for QA & Production. |
| Log Data and Statistics | Min.? Max.? Mean? Standard Deviation? to 4096 samples |
| Relative Power Measurement | Rolling histogram based on user’s initial input. Units of mW? μJ? dBm? % or user choice (relative to a reference measurement input) |
| Fluence | Fluence? within user defined area |
| Certification | RoHS? WEEE? CE |
| Multiple Cameras | Up to 4 cameras, parallel capture. 1 to 8 cameras, serial capture. |
| Head Dimensions? Width x Height x Depth | 1.8 x 1.8 x 0.8” (46 x 46 x 20 mm) |
| Optical depth from housing/filter to sensor (no window) ±0.2 mm | 7.5 mm (12.8 mm with MagND filter) |
| Mounting | 8-32 thread, 8 mm deep |
| Weight? Camera w/ MagND and filter cover | 3.75 oz (106 g) |
| Minimum Requirements | Windows 10 64-bit |
