德國Flucon導熱系數儀LAMBDA導熱率測定儀熱線法測量導熱熱導率測試儀

測量流體的導熱系數一般用到穩態法和瞬態法，但是由于有對流的影響，瞬態法具有很多優點：

瞬態法考慮了變化的溫度場的問題，測量時間快得多，結果受對流影響較小。僅0.01mm/min的平均流速會導致由于自由對流而引起的1%的偏差。因此，穩態方法，特別是在涉及厚層的實驗裝置中，不能提供不受對流影響的測量數據。此外，還必須非常小心地避免任何種類的強制對流，例如由于測量裝置的振動引起的。

LAMBDA系統是一個緊湊的，界面友好的儀器，通過根據ASTM?熱線法，可以在一個非常寬的溫度和壓力范圍內測定導熱系數，適用于實驗室和現場的流體分析連接操作，包括納米顆粒分散流體的熱導率測量，LAMBDA可以獨立操作或者和計算機，配備RS232接口。

  • 顯示導熱系數和溫度
  • 通過熱線法快速穩定地進行電阻測量
  • 沒有對流的影響
  • 適用于任何流體、粉末和凝膠
  • 只需要少量樣品（35ml）
  • 高重現性99%
  • 設置時間短
  • 易于操作
  • 可選連接到計算機，用于全自動測量和溫度控制。

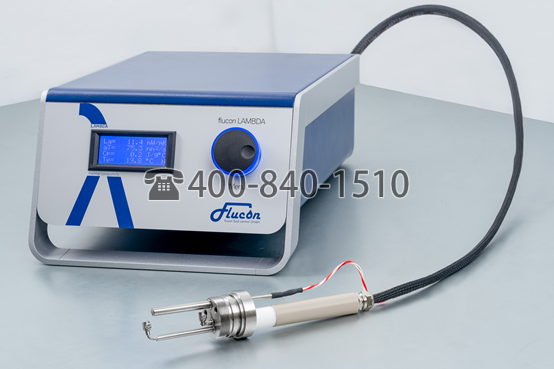

Electronic unit LAMBDA
Instationary heat wire resistance measurement in accordance with ASTM D7896
Thermal conductivity 10 to 2.000 mW/mK
Accuracy +/- 2 % reading
Reproducibility +/- 1 % reading
Repeatability +/- 0.5 % reading
Temperature sensor PT100 +/- 0.1o C
Specific heat (computed) 0.1 to 1 cal/g o C
Measuring time approx. 30 s
Display: LC-Display
Digital interface: RS 232
Analog interface: 0…10 V or 4…20 mA
(thermal conductivity)
0…10 V or 4…20 mA
(temperature)
controller interface: RS232 ( heating unit)
Housing: Design electronic housing
Size/weight (approx.): 230*350*140 mm, 3 kg
Power supply: 110-230 VAC, 50/60 Hz
Ambient temperature: 10 to 40o C
Sensor unit LAMBDA
Heat wire element: Pt
Dimensions: designed to be screwed
into measuring chamber
(see 4.3)
Material: stainless steel
Temperature sensor PT100 +/- 0.1°C
(integrated)
Sensor cable: L = 1 m
Temperature range: -50°C to 300oC
Measured medium: fluids, powders, gels &
pastes
Measuring chamber LAMBDA
Stainless steel chamber
Containment: D=36 mm, L=90 mm
Material: stainless steel
Temperature range: -50°C to 300°C
Pressure range: 0 to 35 bar
Interface cable RS232 (LAMBDA – PC)
Software LAMBDA System
(operating system WINDOWS XP and
higher versions)
恒溫配置：
Block thermostat for EPSILON+ / LAMBDA
for the fully automatic determination of the dielectric
properties of fluids as a function of temperature
Type CL-355A-230
Temperature range Room temperature to 400
degree C (by use with the
EPSILON+ up to 180° C
& up to 300°C with the
LAMBDA) Temp. stability +/- 0,3 degree C
Temp. set manually & automatically
Power supply 230 VAC, 50/60 Hz
Controller interface RS232
