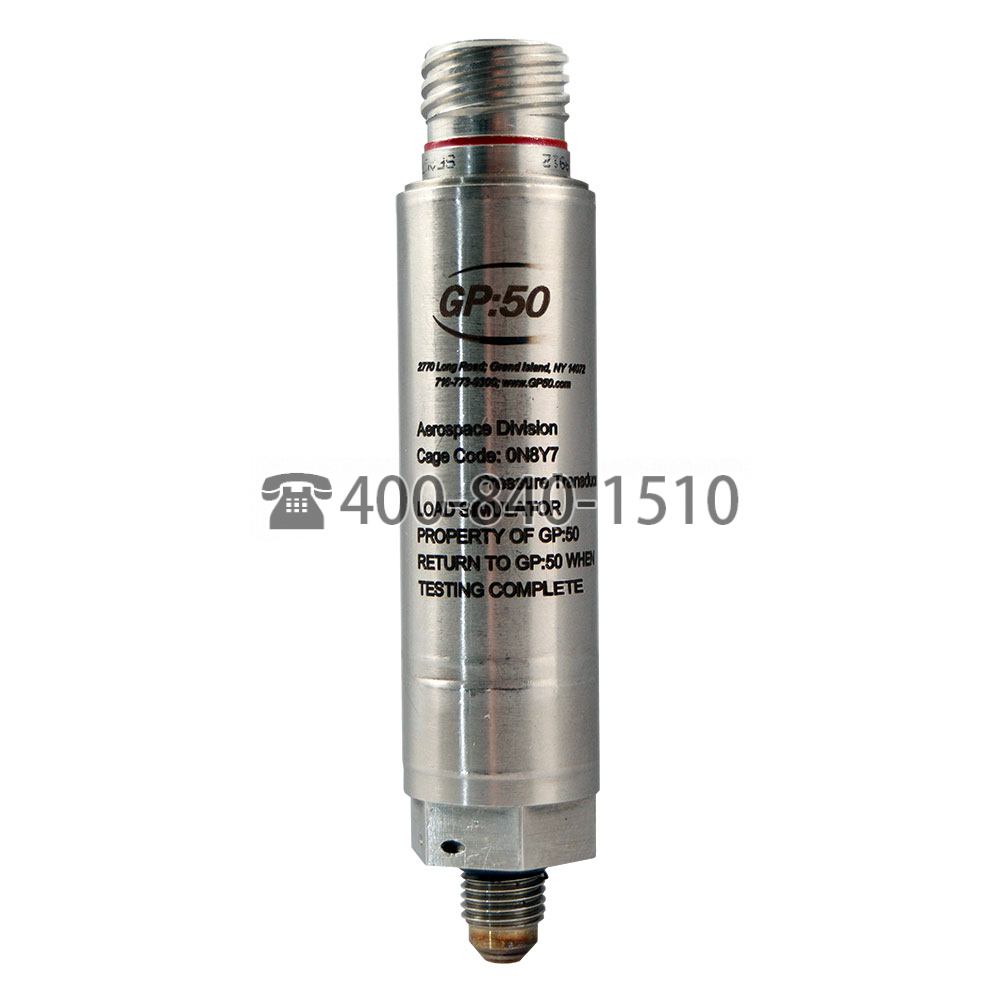

Flight Heritage Pressure Transducer壓力傳感器
Model 7200
GP:50 的 7200 系列是飛行傳統靜壓傳感器，旨在在商業航空、軍事、航天、無人機、衛星和國防應用中提供高精度壓力測量。這款高度堅固且高度可靠的 7200 型經過 25 年和數百種應用（包括更高沖擊和振動環境）的現場驗證，并提供測試和程序量，以滿足各種要求。
特征：
- Secondary containment rating up to 4,500 PS (310 BAR)
二次密封額定值高達4,500PSI（310BAR）
- Optional 10X proof pressure
可選10X防壓
- 0 to 1 PSIG, 0 TO 3 PSIA thru 0 to 15K PSI (69 mBARto 1,034 BAR)
0至1個PSIG，0至3個PSIA至0至15KPSI(69mBAR至1,034BAR)
應用:
- Aviation and suborbital spacecraft
- Unmanned aerial vehicles
- Helicopter and rotorcraft
- Commercial and military satellites
- Launch vehicles
- Ground and engine testing
選項：
- 0 to 5 Vdc, 0 to 10 Vdc and 4-20 mA outputs (Optional 4-wire isolated grounds on Vdc Units)
- “B+ and S Class” electronics
- Temperature output
- Inconel, Hastelloy, and Monel wetted parts
- Wide selection of pressure ports and electrical connections
- Improved Accuracy on Model 8200.
- Various MIL-SPECS available.* Consult factory.
