Item # DAH110-A1163-X1-0002, Air Compressor, Linear Free Piston, 1.0 LPM, 17.4 PSI, 12VDC, HD Feet
Direct Current (DC) Rated Voltage | 12 V |
Maximum Pressure | 120 kPa1.2 bar1.2 kgf/cm217.4 psig |
Hose Barb Outlet Outside Diameter (OD) | 4.7 mm |
Pressure Rating | 100 kPa1.0 kgf/cm21.0 bar14.5 psig |

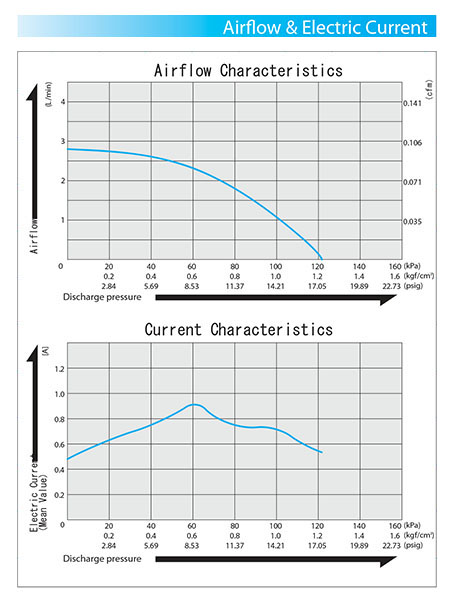

| Rated Airflow1 | 1.0 L/min0.035 ft3/min |
Current (Mean Value) | 0.74 A |
Life Expectancy Mean Time to Failure (MTTF) | 5,000 h |
Duty Cycle | Continuous |
Coil Insulation Class | A or its equivalent |
Gross Weight | 2.01 lb0.91 kg |
Leadwire Length | 11-13/16 in300 mm |
Measure System | EUROSIU.S.A |
