HUNTINGTON STANDARD LINEAR FEEDTHROUGH w/MICROMETER 帶測微計的標準線性真空饋通

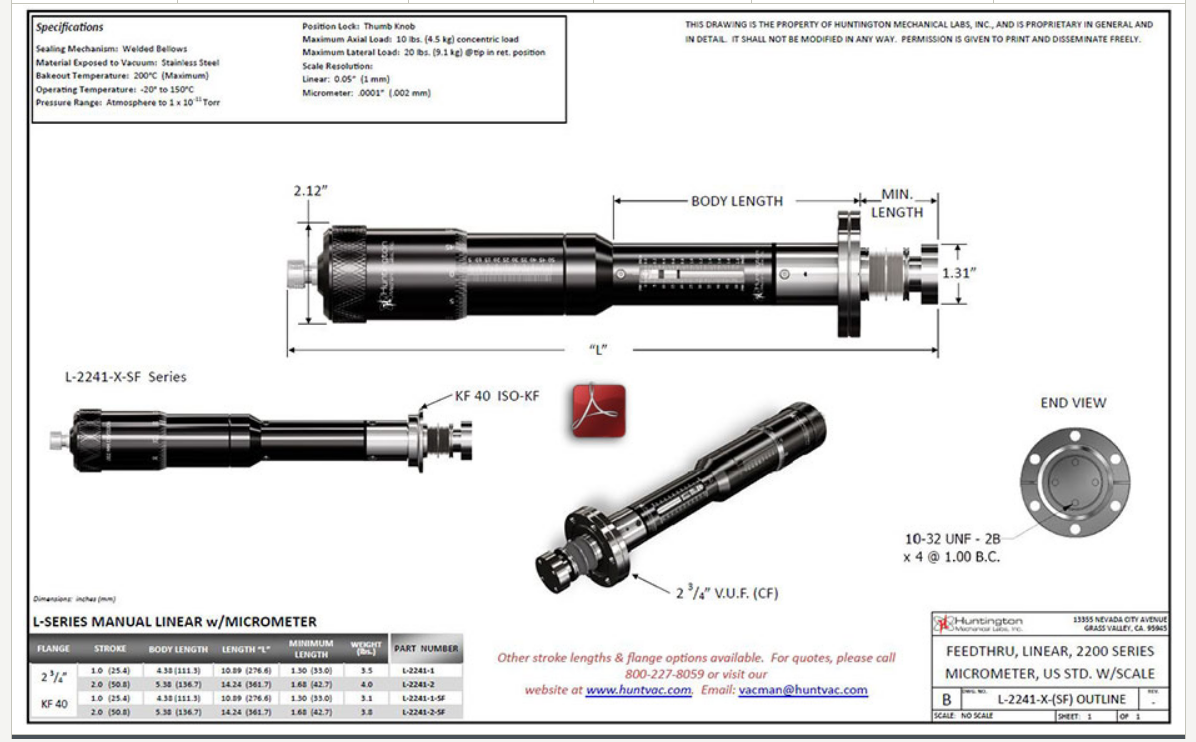

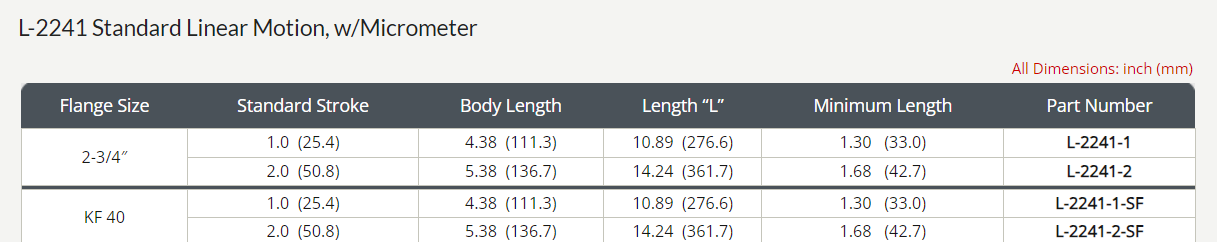

L-Series Standard Linear Motion Feedthroughs incorporate a unique modular design which accommodates three actuator options on two basic shaft/body configurations. Each combination of body and actuator is available in three standard stroke lengths with special lengths available upon request. The?L-2241 Series?feature metric Micrometer actuation with .002 mm resolution.

L系列標準線性運動饋通采用獨特的模塊化設計，可在兩種基本軸/機身配置上提供三種執行器選項。閥體和執行機構的每種組合都有三種標準行程長度，可根據要求提供特殊長度。L-2241系列采用公制千分尺驅動，分辨率為.002 mm。
