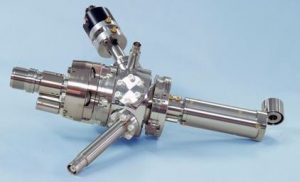

EGG-3101 / EGPS-3101電子槍 轟擊型電子槍 kimball電子槍 肯博爾電子槍

Energy Range 能量范圍:?100 eV to 10 keV
Beam current / Spot size: 束流范圍 / 光斑大小
Standard 標準: 10 nA to 100 μA / Standard: 0.5 mm to 25 mm
Small Spot option 小光斑選項: 1 nA to 10 μA / 60 μm to 10 mm
High Current option 高束流選項: 1 μA to 1 mA / High Current option: 1.5 mm to 25 mm
Mounting 安裝法蘭:?2?CF
Features/Options 選配:?Beam Alignment Adjustable while Operating, Collimated Beam, Electrostatic Focusing and Deflection, Blanking, Pulsing, Rastering, Mounted Pneumatic Faraday Cup
