Kimball Barium Oxide Coated Disc Cathodes 氧化鋇陰極

Kimball Barium Oxide Coated Disc Cathodes 氧化鋇陰極

Description

The Kimball Physics?Barium Oxide Coated Disc Cathode?is a low-light, low-temperature thermionic emitter. The cathode structure of the ES-015, ES-064, and ES-066 consists of a barium oxide (BaO) coated disc substrate that is heated by conduction from a tungsten hairpin and mounted on an industry-standard ceramic AEI base or on a compact Kimball Physics ceramic base. Other bases are available on a custom basis.

  • Low light, low temperature
  • Emission current densities up to 0.25 A/cm2
  • Operating pressure < 10-7?torr
  • Emission up to 3 mA
  • 3 disc sizes
  • On AEI or compact CB-104/105 bases

描述

Kimball Physics氧化鋇涂層圓盤陰極是一種低光、低溫熱離子發射器。ES-015、ES-064和ES-066的陰極結構由氧化鋇（BaO）涂覆的圓盤基底組成，該圓盤基底通過來自鎢發夾的傳導而加熱，并安裝在工業標準陶瓷AEI基底上或緊湊的Kimball Physics陶瓷基底上。其他基底也可定制。

低光、低溫

發射電流密度高達0.25 A/cm2

工作壓力<10-7托

發射高達3 mA

3種陰極尺寸

基座： AEI或緊湊型CB-104/105

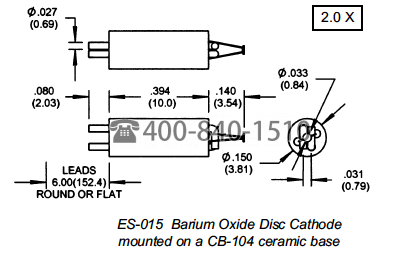

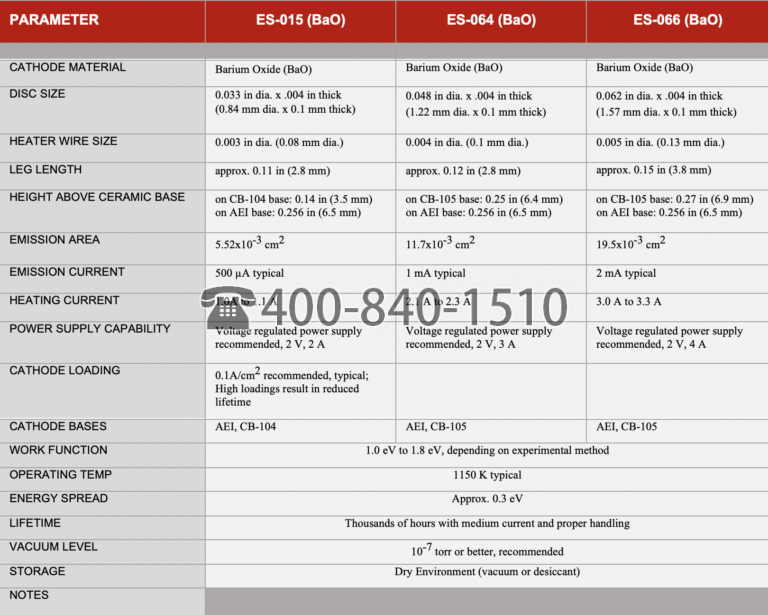

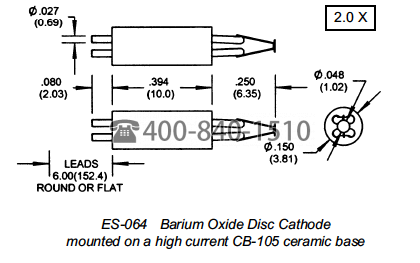

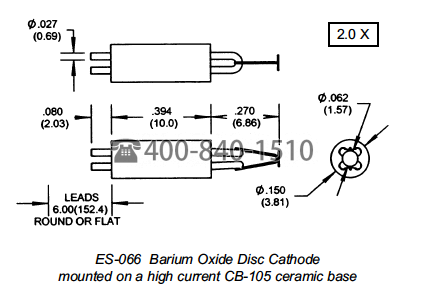

Cathode model number 0.033″ ES-015,?0.048″ ES-064,?0.062″ ES-066

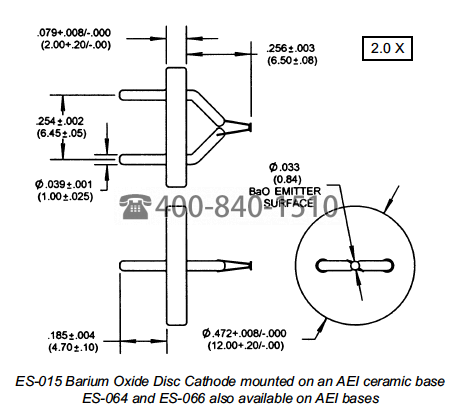

Cathode base AEI,?CB-104,?CB-105
