Kimball EGF-4104 EGPS-4104電子槍 中能量電子槍

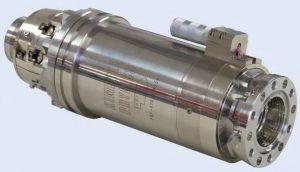

The EGF-4104 Electron Gun with matching EGPS-4104 Power Supply is a complete subsystem ready to attach to the user’s vacuum system. The gun uses a space-charge-limited refractory-metal cathode to generate a uniform flood beam down to low energies and low currents. Applications include surface charging studies, beta decay simulation, surface physics, and vacuum physics experiments.

EGF-4104 EGPS-4104 能量范圍:?200 eV to 30 keV
EGF-4104 EGPS-4104 光斑大小 / 束流大小:
Standard: 15mm to 500 mm & 1 nA to 100 μA
High Current: 1 μA to 1 mA & 1.5mm to 25mm
EGF-4104 EGPS-4104 安裝:?2?CF
EGF-4104 EGPS-4104 功能/選配:?Wide angle uniform beam, magnetic deflection, divergence control, custom apertures
