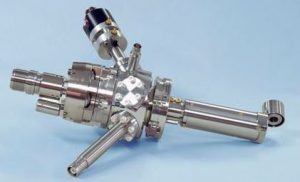

Kimball EGG-3101 /? EGPS-3101電子槍 中能量電子槍

EGG-3101 / EGPS-3101 能量范圍:?100 eV to 10 keV
EGG-3101 / EGPS-3101 束流大小 / 光斑大小:
Standard: 10 nA to 100 μA / Standard: 0.5 mm to 25 mm
Small Spot option: 1 nA to 10 μA / 60 μm to 10 mm
High Current option: 1 μA to 1 mA / High Current option: 1.5 mm to 25 mm
EGG-3101 / EGPS-3101 安裝:?2?CF
EGG-3101 / EGPS-3101 功能/選配:?Beam Alignment Adjustable while Operating, Collimated Beam, Electrostatic Focusing and Deflection, Blanking, Pulsing, Rastering, Mounted Pneumatic Faraday Cup
