透射鏡片材料 —Zinc Sulphide (ZnS) 硫化鋅
| Transmission Range % | 50 |

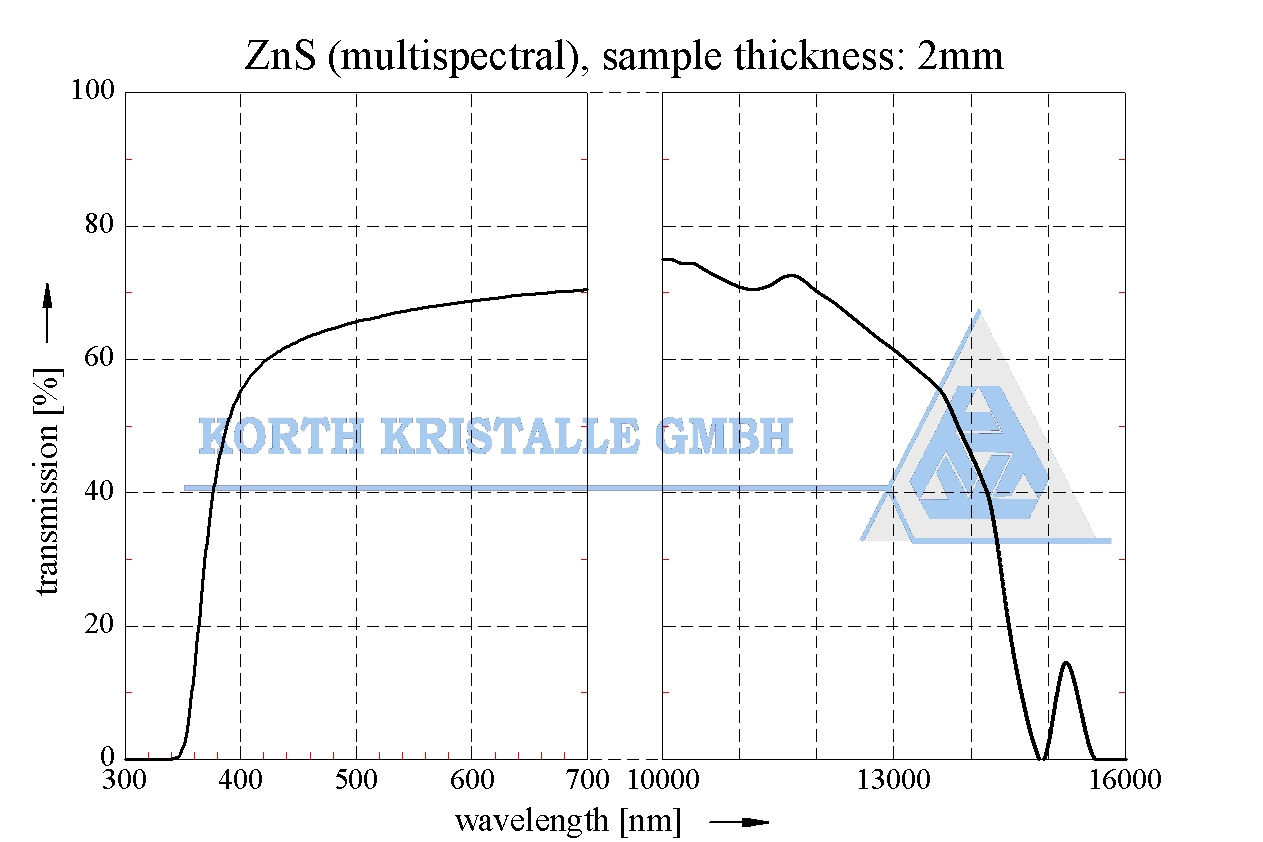

| Transmission Range | 0.38 – 14 μm (thickness?2 mm ) |
| Refractive Index | 2.351415@633 nm |
| Reflection Loss | 14% @10 μm |
| Residual Beam Wavelength | 30.5 mm |
| Density | 4.09 g/cm3 |
| Melting point | sublimation > 500°C |
| Molecular Weight | 97.43 |
| Thermal Conductivity | 27.2 W/(m·K) @298K |
| Spec. Heat Capacity | 519.15 J/(kg·K) |
| Thermal Expansion | 6.5 · 10-6?/K @208…473K |
| Hardness (Mohs) | 160 (Indenter load 50g) |
| Young’s Modulus | 87.6 GPa |
| Shear Modulus | 33 GPa |
| Bulk Modulus | 80.41 GPa |
| Fracture Modulus | 68.9 MPa |
| Elastic Coefficient | C11?= 102; C12?= 64.6; C44?= 44.6 GPa |
| Dielectric Constant | 8.393 @ (low frequency) |
| Solubility in Water | unsoluble |
| Crystal Structure | polycrystalline, synthetic, grain size < 200 μm |
| Crystal Type | cubic Sphalerit type structure,?a = 5,42 ? |
| Lattice Constants | no cleavage |
| Poisson Ratio | 0.3 |
| Application | IR optics, FLIR (Forward Looking Infrared) Systems, 2 qualities (FLIR, ms) |
