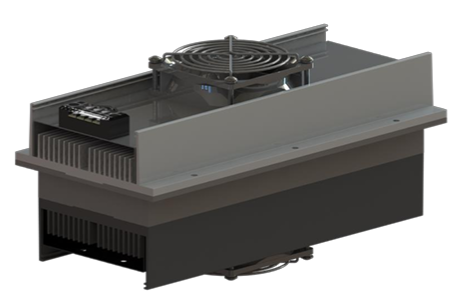

Ecogen公司的熱電空調(diào)的冷卻能力從40瓦到210瓦，溫差高達(dá)45K。組件通過空氣散熱器散熱，將熱量從通常位于有限空氣體積內(nèi)的物體傳遞到外部環(huán)境。
|
Type |
Ioperating?(A) |
Uoperating?(V) |
Qc (W) |
P (W) |
Length (mm) |
Width (mm) |
Height (mm) |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| 60-12-AA | 9.0 | 12.0 | 46 | 108.0 | 240.0 | 150.2 | 155.0 | |||
| 60-24-AA | 2.8 | 24.0 | 40 | 67.0 | 240.0 | 150.2 | 155.0 | |||
| 120-12-AA | 15.2 | 12.0 | 60 | 182.0 | 320.0 | 150.2 | 155.0 | |||
| 120-24-AA | 5.3 | 24.0 | 60 | 127.0 | 320.0 | 150.2 | 155.0 | |||
| 180-12-AA | 19.4 | 12.0 | 110 | 232.0 | 480.0 | 150.2 | 155.0 | |||
| 180-24-AA | 5.8 | 24.0 | 110 | 139.0 | 480.0 | 150.2 | 155.0 | |||
| 380-24-АA ver.1 | 10.4 | 24.0 | 210 | 250.0 | 252.0 | 200.0 | 210.0 | |||
| 380-24-АA ver.2 | 10.4 | 24.0 | 210 | 250.0 | 252.0 | 200.0 | 210.0 | |||
| 380-48-АА | 5.7 | 48.0 | 210 | 273.0 | 252.0 | 200.0 | 210.0 |
